Schneider Electric GS2AHT530 TeSys GS external rotary handle with Test position - IP65

Schneider Electric GS2AHT530 TeSys GS External Rotary Handle Test 100-400 A IP65 Fuse Switch Disconnector

Name: Schneider Electric GS2AHT530 TeSys GS External Rotary Handle Test 100-400 A IP65 Fuse Switch Disconnector
Brand: Schneider Electric
SKU: GS2AHT530
Price: 94.65 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GS2AHT530

Catalog No: GS2AHT530

Series: TeSys

Tariff Code (HS): 853610

Rated Current: 100-400 A

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$94.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

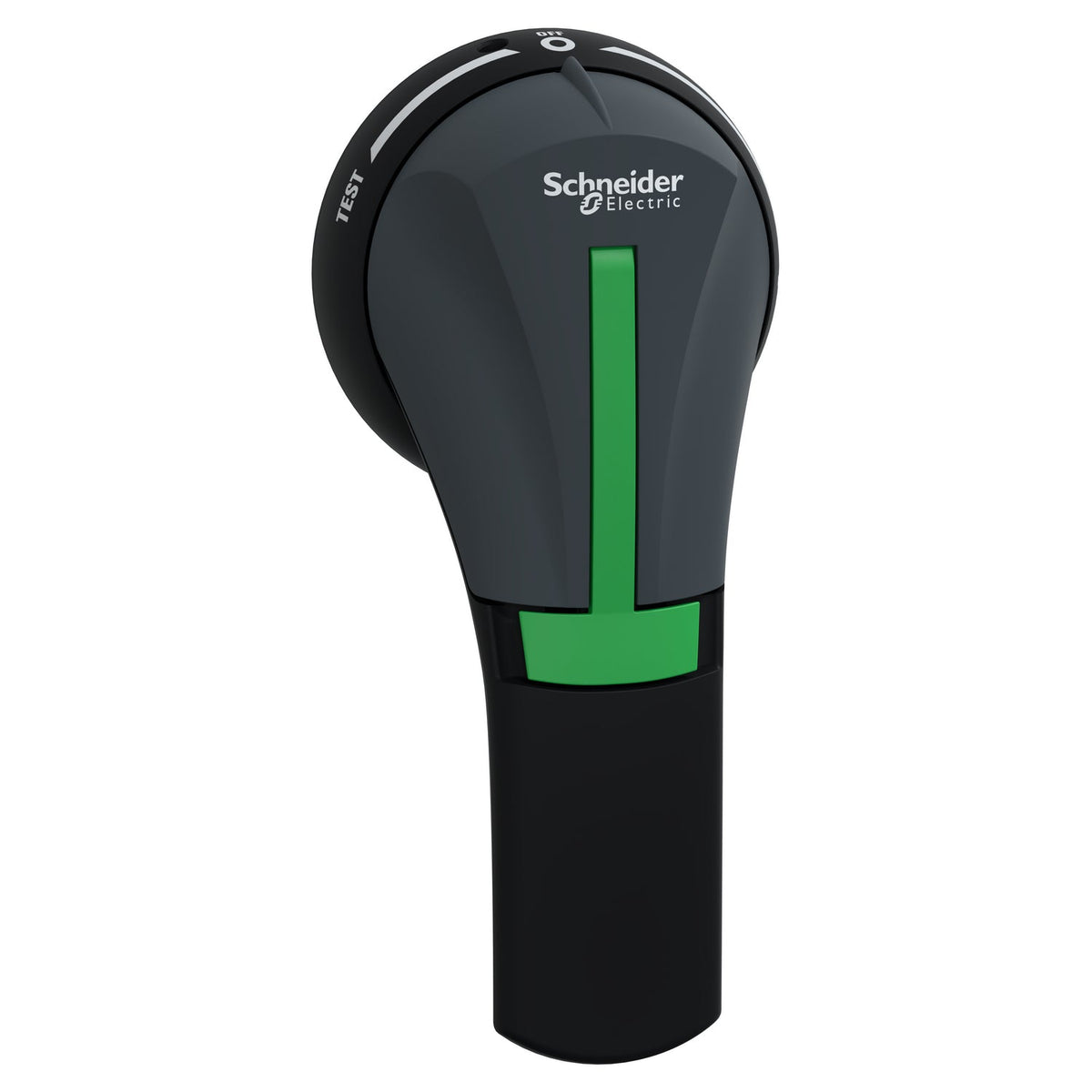

The Schneider Electric GS2AHT530 is an external rotary operating handle for TeSys GS fuse switch-disconnectors rated 100-400 A, covering devices from GS2J through GS2Q. Unlike the plain 2-position handles in the range, it adds a Test position for off-load circuit checks with auxiliary contact blocks GS1AM or GS1ANT. The black handle on a grey front plate gives IP65 protection and locks in the O position.

Technical Specifications

Reference	GS2AHT530
Brand	Schneider Electric
Range	TeSys GS
Device Short Name	GS2AHT
Product or Component Type	Rotary handle
Range Compatibility	TeSys GS GS2J, GS2K, GS2L, GS2N, GS2P, GS2Q; FuPact GS GSB100-GSB400
Type of Operating Handle	External frontal
Handle Colour	Black
Handle Front Plate Colour	Grey
Handle Positions	Test-O-I
Padlocking	Lockable in O position
Switch Rated Current	100-400 A
IP Degree of Protection	IP65
Net Weight	0.24 kg
Units per Package	1 (inner) / 6 (outer)

Certifications & Standards

Selection Notes

Choose the GS2AHT530 when off-load Test-position checking is needed on the 100-400 A frame; the plain 2-position handles for the 630-800 A and 1250 A frames omit this Test position. The Test position requires a GS1AM or GS1ANT auxiliary contact block with Test capability, ordered separately, plus a GS2AE connecting shaft sized to the enclosure depth.

Technical Details

Short Description

External rotary handle with Test position for TeSys GS 100-400 A, IP65

Rated Current (Ampere)

100-400 A

Mounting Type

Door/front mounting

Protection Type

IP65

Catalog No

GS2AHT530

Delivery Date (Days)

30 days

Model Number

GS2AHT530

Tariff Code

853610
