Part number
LV481473
Model no
GSD1250
$2,578.70 On request Dispatch — · From TürkiyeGet a Quote

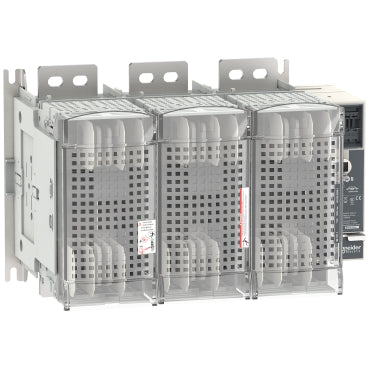

Schneider Electric LV481473 FuPacT GSD1250 3P 1250 A NH4 Fuse Switch Disconnector

FuPacT GSD1250 switch disconnector fuse, 3P, 1250 A, 690 V AC, DIN NH4.

Rated current
1250 A
Rated operational voltage
690 V AC
Poles
4P
Description

About the GSD1250

The Schneider Electric LV481473 FuPacT GSD1250 is a 3-pole switch disconnector fuse rated 1250 A at up to 690 V AC, built for external front or right-side handle control. It takes DIN NH4 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with a 100 kA breaking capacity with fuses at 415 V and 690 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD1250 is the largest frame in the FuPacT GS range, carrying DIN NH4 fuses and a four-cable, 185 mm² lugs-ring terminal to handle the 1250 A continuous rating; the GSD800 covers the next size down on NH3 fuses. Its 442 x 300 x 289 mm housing and 25 kg weight are the largest in the switch-disconnector-fuse family, and it is the only GS frame above GSD250 that keeps AC-23A/AC-23B motor-type utilisation categories rated, alongside AC-22A/AC-22B switching duty. The 100 kA breaking capacity with fuses holds at both 415 V and 690 V.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD1250
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH4
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 1250 A ( 35 °C ) power dissipation per fuse: 110 W
[Ithe] conventional enclosed thermal current 1250 A at 35 °C, Power dissipation per fuse: 110 W
Maximum power dissipation per pole 154 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 1000 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
[Ie] rated operational current AC-22A: 1250 A at 220/240 V AC 50/60 Hz, AC-23A: 1250 A at 220/240 V AC 50/60 Hz, AC-22B: 1250 A at 220/240 V AC 50/60 Hz, AC-23B: 1250 A at 220/240 V AC 50/60 Hz, AC-22A: 1250 A at 380/415 V AC 50/60 Hz, AC-23A: 1250 A at 380/415 V AC 50/60 Hz, AC-22B: 1250 A at 380/415 V AC 50/60 Hz, AC-23B: 1250 A at 380/415 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 100 kA at 415 V (AC), 100 kA at 690 V (AC)
Rated operational power in W 750 kW at 380/400 V, 900 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 5000 cycles
Electrical durability AC-22A: 100 cycles 415 V AC 50/60 Hz, AC-22A: 100 cycles 690 V AC 50/60 Hz, AC-23A: 100 cycles 415 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 80 mm², Power circuit: lugs-ring terminals 4 cable(s) 185 mm²
Tightening torque Power circuit: 44 N.m
Width 442 mm
Height 300 mm
Depth 289 mm
Net weight 25 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 62 specifications ↓ Show less ↑18 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481473
Type designation GSD1250
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 10

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 53.000 cm
Package 1 Width 60.000 cm
Package 1 Length 80.000 cm
Package 1 Weight 41.000 kg
Shipping weight 25.0 kg
Ships from Türkiye
Dispatch —
Stock On request
