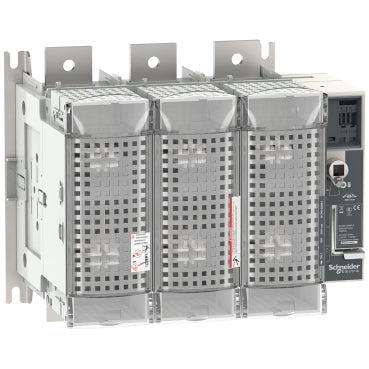

Schneider Electric LV481463 FuPacT GSD800 3P 800 A NH3 Fuse Switch Disconnector

FuPacT GSD800 switch disconnector fuse, 3P, 800 A, 690 V AC, DIN NH3.

Rated current
800 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the GSD800

The Schneider Electric LV481463 FuPacT GSD800 is a 3-pole switch disconnector fuse rated 800 A at up to 690 V AC, built for external front or right-side handle control. It takes DIN NH3 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with a 100 kA breaking capacity with fuses at 415 V and 690 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD800 shares the GSD630's 364 x 300 x 250 mm NH3 housing and 100 kA breaking capacity but is rated 800 A rather than 630 A, so it is the choice for heavier distribution feeders within the same physical footprint. Its rated operational power rises to 450 kW at 380/400 V and 600 kW at 660/690 V, well above the GSD630's figures, reflecting the higher continuous current. Only AC-22A/AC-22B switching duty is rated at this frame, consistent with the larger GSD sizes above GSD250.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD800
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH3
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 800 A ( 35 °C ) power dissipation per fuse: 65 W
[Ithe] conventional enclosed thermal current 800 A at 35 °C, Power dissipation per fuse: 65 W
Maximum power dissipation per pole 68 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 1000 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
[Ie] rated operational current AC-22A: 800 A at 220/240 V AC 50/60 Hz, AC-22B: 800 A at 220/240 V AC 50/60 Hz, AC-22A: 800 A at 380/415 V AC 50/60 Hz, AC-22B: 800 A at 380/415 V AC 50/60 Hz, AC-22A: 800 A at 660/690 V AC 50/60 Hz, AC-22B: 800 A at 660/690 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 100 kA at 415 V (AC), 100 kA at 690 V (AC)
Rated operational power in W 450 kW at 380/400 V, 600 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 5000 cycles
Electrical durability AC-22A: 100 cycles 415 V AC 50/60 Hz, AC-22A: 100 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 63 mm², Power circuit: lugs-ring terminals 2 cable(s) 150 mm², Power circuit: lugs-ring terminals 2 cable(s) 300 mm²
Tightening torque Power circuit: 44 N.m
Width 364 mm
Height 300 mm
Depth 250 mm
Net weight 17 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481463
Type designation GSD800
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 39.500 cm
Package 1 Width 43.500 cm
Package 1 Length 52.000 cm
Package 1 Weight 18.070 kg
Unit Type of Package 2 P06
Number of Units in Package 2 2
Package 2 Height 58.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 44.640 kg
Shipping weight 17.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
