Part number
LV481453
Model no
GSD630
$1,114.47 On request Dispatch — · From TürkiyeGet a Quote

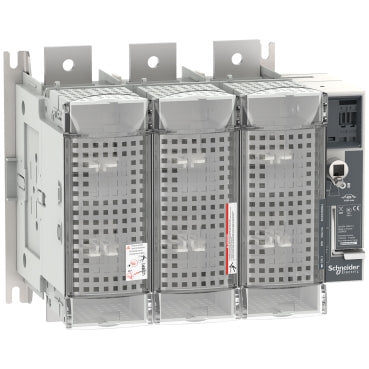

Schneider Electric LV481453 FuPacT GSD630 3P 630 A NH3 Fuse Switch Disconnector

FuPacT GSD630 switch disconnector fuse, 3P, 630 A, 690 V AC, DIN NH3.

Rated current
630 A
Rated operational voltage
690 V AC
Poles
4P
Description

About the GSD630

The Schneider Electric LV481453 FuPacT GSD630 is a 3-pole switch disconnector fuse rated 630 A at up to 690 V AC, built for external front or right-side handle control. It takes DIN NH3 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with a 100 kA breaking capacity with fuses at 415 V and 690 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD630 moves to a DIN NH3 fuse carrier and a higher 1000 V insulation and 12 kV impulse withstand rating than the NH2-based GSD400, reflecting the larger frame's heavier-duty application. Unlike the smaller GSD63-GSD400 frames, it drops the direct frontal handle option in favour of external frontal or right-side rotary handles only, since the frame size no longer suits a direct-mount handle. Its dual-cable lugs-ring terminals (2 x 150 mm² or 2 x 300 mm²) are sized for the 630 A continuous rating, and the 100 kA breaking capacity with fuses holds constant at both 415 V and 690 V.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD630
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH3
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 630 A ( 35 °C ) power dissipation per fuse: 60 W
[Ithe] conventional enclosed thermal current 630 A at 35 °C, Power dissipation per fuse: 60 W
Maximum power dissipation per pole 61 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 1000 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 12 kV
[Ie] rated operational current AC-22A: 630 A at 220/240 V AC 50/60 Hz, AC-22B: 630 A at 220/240 V AC 50/60 Hz, AC-22A: 630 A at 380/415 V AC 50/60 Hz, AC-22B: 630 A at 380/415 V AC 50/60 Hz, AC-22A: 630 A at 660/690 V AC 50/60 Hz, AC-22B: 630 A at 660/690 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 100 kA at 415 V (AC), 100 kA at 690 V (AC)
Rated operational power in W 355 kW at 380/400 V, 295 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 5000 cycles
Electrical durability AC-22A: 200 cycles 415 V AC 50/60 Hz, AC-22A: 200 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 63 mm², Power circuit: lugs-ring terminals 2 cable(s) 150 mm², Power circuit: lugs-ring terminals 2 cable(s) 300 mm²
Tightening torque Power circuit: 44 N.m
Width 364 mm
Height 300 mm
Depth 250 mm
Net weight 16 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481453
Type designation GSD630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.000 cm
Package 1 Width 39.000 cm
Package 1 Length 52.500 cm
Package 1 Weight 16.546 kg
Unit Type of Package 2 P06
Number of Units in Package 2 2
Package 2 Height 59.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 41.592 kg
Shipping weight 16.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
