Part number
LV480901
Model no
ISFL250
$380.77 On request Dispatch — · From TürkiyeGet a Quote

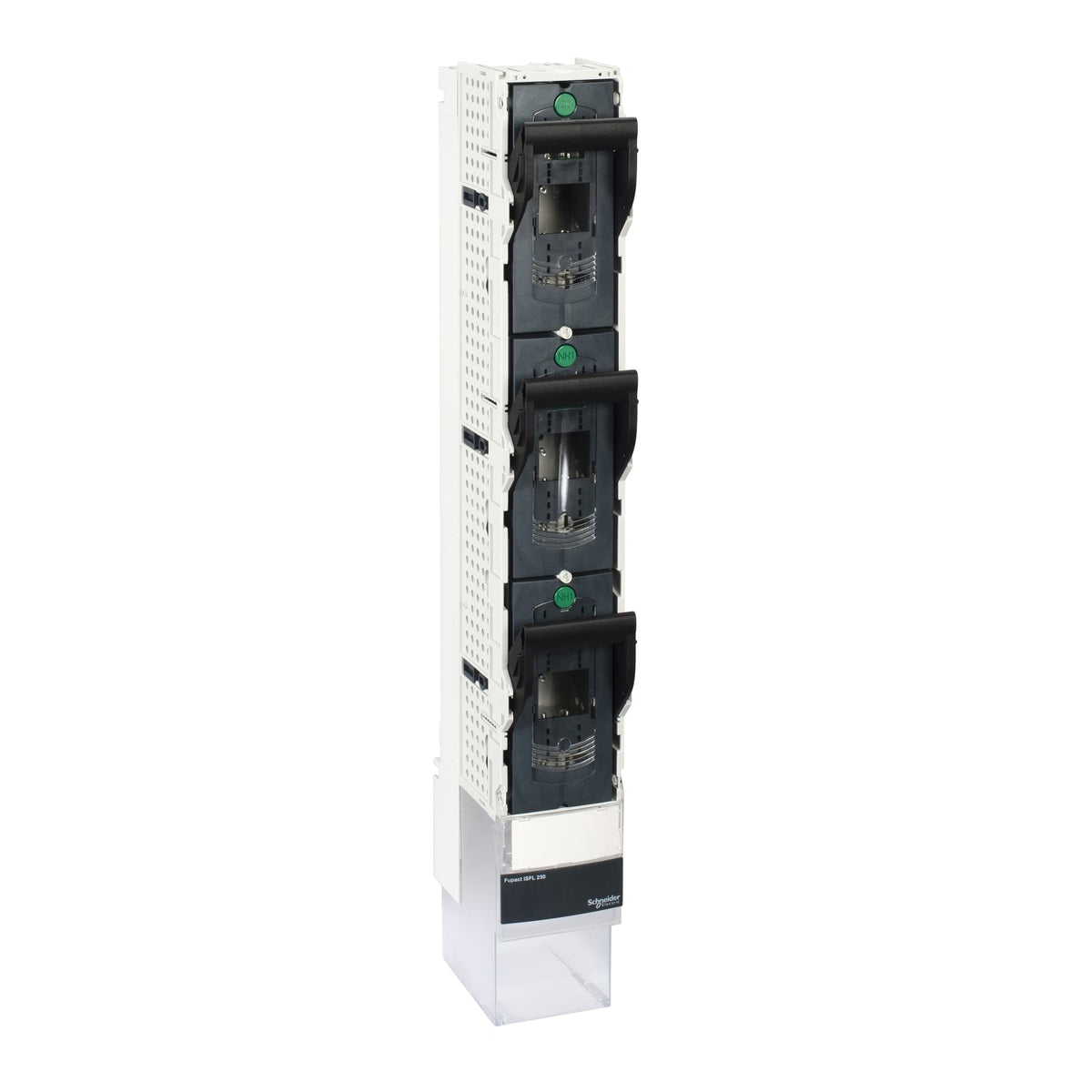

Schneider Electric LV480901 Fupact ISFL250 1P 250 A NH1 Fuse Switch Disconnector

ISFL250 1P 250 A fuse-switch disconnector, NH1, 185 mm busbar, direct mount.

Rated current
250 A
Rated operational voltage
690 V AC
Description

About the ISFL250

The Schneider Electric LV480901 is a single-pole Fupact ISFL250 fuse-switch disconnector rated 250 A at 690 V AC for AC-21B duty, sized for NH1 fuse links and built for 185 mm busbar, direct mount mounting with screw connection downstream m12 250 a. It carries a 120 kA at 415–690 V AC breaking capacity with fuses and a 15 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480901 is a single-pole ISFL250 module rated 250 A — three are mounted side by side on the 185 mm busbar to build a complete 3-pole fuse-switch disconnector, with each pole switching and isolating independently. Use the ganged 3-pole ISFL250 version instead when a single handle operating all three poles together is preferred.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFL
Device short name ISFL250
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 3 x 1P switchable
Number of fuse carriers 3
Fuse type DIN
Fuse size NH1
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 250 A ( 40 °C ) power dissipation per fuse: 23 W
[Ithe] conventional enclosed thermal current 250 A at 40 °C, Power dissipation per fuse: 23 W
Maximum power dissipation per pole 32 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 250 A at 220/240 V AC 50/60 Hz, AC-21B: 250 A at 380/415 V AC 50/60 Hz, AC-21B: 250 A at 440/480 V AC 50/60 Hz, AC-21B: 250 A at 500 V AC 50/60 Hz, AC-21B: 250 A at 660/690 V AC 50/60 Hz, AC-21B: 160 A at 800 V AC 50/60 Hz, AC-22B: 250 A at 220/240 V AC 50/60 Hz, AC-22B: 250 A at 380/415 V AC 50/60 Hz, AC-22B: 250 A at 440/480 V AC 50/60 Hz, AC-22B: 250 A at 500 V AC 50/60 Hz, AC-23B: 250 A at 220/240 V AC 50/60 Hz, AC-23B: 250 A at 380/415 V AC 50/60 Hz

Complementary 21

Breaking capacity 120 kA at 415 V (AC), 120 kA at 500 V (AC), 120 kA at 690 V (AC)
[Icw] rated short-time withstand current 15 kA for 1 s
[Im] rated making and breaking capacity 30 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Busbars
Mounting location One above the other
Contact operation Single-break
Mechanical durability 1400 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Screw connection downstream M12 250 A, Direct connection upstream 250 A 185 mm
Tightening torque 32 N.m
Width 100 mm
Height 741 mm
Depth 190 mm
Net weight 4.7 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC <= 690 V, EAC <= 690 V

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480901
Type designation ISFL250
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.300 cm
Package 1 Width 21.500 cm
Package 1 Length 78.500 cm
Package 1 Weight 5.000 kg
Unit Type of Package 2 P12
Number of Units in Package 2 25
Package 2 Height 50.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 137.000 kg
Shipping weight 4.7 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
