Part number
LV481424
Model no
GSD160
$290.95 On request Dispatch — · From TürkiyeGet a Quote

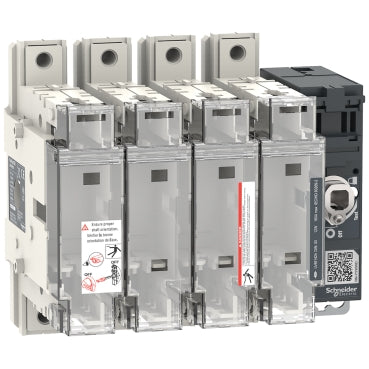

Schneider Electric LV481424 FuPacT GSD160 4P 160 A NH00 Fuse Switch Disconnector

FuPacT GSD160 switch disconnector fuse, 4P, 160 A, 690 V AC, DIN NH00.

Rated current
160 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the GSD160

The Schneider Electric LV481424 FuPacT GSD160 is a 4-pole switch disconnector fuse rated 160 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH00 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD160 4P adds a fourth switched pole and internal neutral links to the 3-pole GSD160, for circuits needing a switched neutral rather than a solid neutral bar; it is 36 mm wider than the 3-pole version but shares the same 160 A rating, NH00 fuse size and 80 kA/415 V breaking capacity. Choose the 3-pole variant instead where the neutral does not need to be switched. The front or external right-side handle options carry over unchanged from the 3-pole frame.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD160
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 4P
Number of fuse carriers 4
Fuse type DIN
Fuse size NH00
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 160 A ( 35 °C ) power dissipation per fuse: 12 W
[Ithe] conventional enclosed thermal current 160 A at 35 °C, Power dissipation per fuse: 12 W
Maximum power dissipation per pole 10.4 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 160 A at 220/240 V AC 50/60 Hz, AC-23A: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-23B: 160 A at 220/240 V AC 50/60 Hz, AC-22A: 160 A at 380/415 V AC 50/60 Hz, AC-23A: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-23B: 160 A at 380/415 V AC 50/60 Hz, AC-22A: 160 A at 660/690 V AC 50/60 Hz, AC-22B: 160 A at 660/690 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 50 kA at 690 V (AC)
Rated operational power in W 80 kW at 380/400 V, 110 kW at 660/690 V
Contacts type and composition 4 NO
Type of operating handle Direct frontal, External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1000 cycles 415 V AC 50/60 Hz, AC-23A: 1000 cycles 415 V AC 50/60 Hz, AC-22A: 1000 cycles 690 V AC 50/60 Hz, AC-23A: 1000 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 20 mm², Power circuit: lugs-ring terminals 50…95 mm²
Tightening torque Power circuit: 12 N.m
Width 184 mm
Height 162 mm
Depth 116 mm
Net weight 2.3 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481424
Type designation GSD160
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 17.000 cm
Package 1 Length 21.100 cm
Package 1 Weight 2.284 kg
Unit Type of Package 2 S04
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.923 kg
Shipping weight 2.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV481424

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3
Quick answers

Questions about the GSD160

What is the rated current of GSD160?

The rated current of GSD160 is 160 A.

Which supply voltage is GSD160 rated for?

The rated operational voltage of GSD160 is 690 V AC.

What is the HS code of GSD160 for customs?

The tariff (HS) code on file for GSD160 is 853610.

Where does GSD160 ship from, and how fast?

GSD160 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
