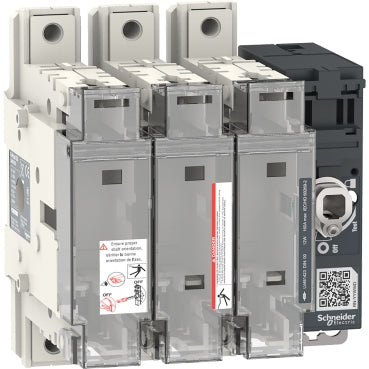

Schneider Electric LV481423 FuPacT GSD160 3P 160 A NH00 Fuse Switch Disconnector

FuPacT GSD160 switch disconnector fuse, 3P, 160 A, 690 V AC, DIN NH00.

Rated current
160 A
Rated operational voltage
690 V AC
Poles
4P
Description

About the GSD160

The Schneider Electric LV481423 FuPacT GSD160 is a 3-pole switch disconnector fuse rated 160 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH00 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD160 shares the GSD125's DIN NH00 fuse size and 148 x 162 x 116 mm housing but is rated 160 A rather than 125 A, so it is the choice when the circuit load sits between the NH00 frame's upper limits before stepping up to the NH1-based GSD250. Its 80 kA breaking capacity with fuses at 415 V (50 kA at 690 V) matches the GSD125, since both share the same fuse-carrier design. The lugs-ring terminal range extends to 95 mm² to suit the higher continuous current.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD160
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH00
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 160 A ( 35 °C ) power dissipation per fuse: 12 W
[Ithe] conventional enclosed thermal current 160 A at 35 °C, Power dissipation per fuse: 12 W
Maximum power dissipation per pole 10.4 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 160 A at 220/240 V AC 50/60 Hz, AC-23A: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-23B: 160 A at 220/240 V AC 50/60 Hz, AC-22A: 160 A at 380/415 V AC 50/60 Hz, AC-23A: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-23B: 160 A at 380/415 V AC 50/60 Hz, AC-22A: 160 A at 660/690 V AC 50/60 Hz, AC-22B: 160 A at 660/690 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 50 kA at 690 V (AC)
Rated operational power in W 80 kW at 380/400 V, 110 kW at 660/690 V
Contacts type and composition 3 NO
Type of operating handle Direct frontal, External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1000 cycles 415 V AC 50/60 Hz, AC-23A: 1000 cycles 415 V AC 50/60 Hz, AC-22A: 1000 cycles 690 V AC 50/60 Hz, AC-23A: 1000 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 20 mm², Power circuit: lugs-ring terminals 50…95 mm²
Tightening torque Power circuit: 12 N.m
Width 148 mm
Height 162 mm
Depth 116 mm
Net weight 1.8 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481423
Type designation GSD160
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 17.0 cm
Package 1 Length 21.0 cm
Package 1 Weight 1.84 kg
Unit Type of Package 2 S06
Number of Units in Package 2 20
Package 2 Height 73.5 cm
Package 2 Width 60 cm
Package 2 Length 80 cm
Package 2 Weight 48.5 kg
Shipping weight 1.8 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
