- Part number
- LV481413
- Model no
- GSD125
Description
About the GSD125
About the GSD125

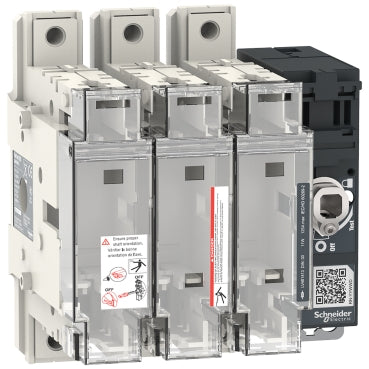

The Schneider Electric LV481413 FuPacT GSD125 is a 3-pole switch disconnector fuse rated 125 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH00 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The GSD125 steps up from the GSD63 to DIN NH00 fuses and a 125 A rating while keeping the same direct and external rotary handle options; pick it over the smaller NH000 frame once the circuit load exceeds 63 A. Its 80 kA breaking capacity with fuses at 415 V drops to 50 kA at 690 V, a distinction worth checking against the upstream fault level on higher-voltage distribution. The bare-cable or lugs-ring terminal options (35-95 mm²) give more conductor flexibility than the GSD63's screw-clamp-only termination.
Specification
Full specification
Main 19
| Range | FuPacT |
|---|---|
| Product name | FuPacT GS |
| Device short name | GSD125 |
| Product or component type | Switch-disconnector-fuse |
| Device application | Equipment protection, monitoring and control, Distribution |
| Poles description | 3P |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH00 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | No |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 125 A ( 35 °C ) power dissipation per fuse: 12 W |
| [Ithe] conventional enclosed thermal current | 125 A at 35 °C, Power dissipation per fuse: 12 W |
| Maximum power dissipation per pole | 8.6 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-22A: 125 A at 220/240 V AC 50/60 Hz, AC-23A: 125 A at 220/240 V AC 50/60 Hz, AC-22B: 125 A at 220/240 V AC 50/60 Hz, AC-23B: 125 A at 220/240 V AC 50/60 Hz, AC-22A: 125 A at 380/415 V AC 50/60 Hz, AC-23A: 125 A at 380/415 V AC 50/60 Hz, AC-22B: 125 A at 380/415 V AC 50/60 Hz, AC-23B: 125 A at 380/415 V AC 50/60 Hz, AC-22A: 125 A at 660/690 V AC 50/60 Hz, AC-23A: 125 A at 660/690 V AC 50/60 Hz, AC-22B: 125 A at 660/690 V AC 50/60 Hz, AC-23B: 125 A at 660/690 V AC 50/60 Hz |
Complementary 18
| [Iq] Breaking capacity with fuses (kA RMS) | 80 kA at 415 V (AC), 50 kA at 690 V (AC) |
|---|---|
| Rated operational power in W | 70 kW at 380/400 V, 110 kW at 660/690 V |
| Contacts type and composition | 3 NO |
| Type of operating handle | Direct frontal, External frontal, External right side |
| Provision for padlocking | 3 padlocks |
| Mounting position | Vertical |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Mechanical durability | 10000 cycles |
| Electrical durability | AC-22A: 1000 cycles 415 V AC 50/60 Hz, AC-23A: 1000 cycles 415 V AC 50/60 Hz, AC-22A: 1000 cycles 690 V AC 50/60 Hz, AC-23A: 1000 cycles 690 V AC 50/60 Hz |
| Connections - terminals | Power circuit: bare cable connectors 20 mm², Power circuit: lugs-ring terminals 35…95 mm² |
| Tightening torque | Power circuit: 12 N.m |
| Width | 148 mm |
| Height | 162 mm |
| Depth | 116 mm |
| Net weight | 1.5 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC, EAC |
Environment 7
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Flame resistance | 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1 |
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV481413 |
|---|---|
| Type designation | GSD125 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.500 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 21.500 cm |
| Package 1 Weight | 1.850 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 57.500 kg |
| Shipping weight | 1.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
