- Part number
- LV481403
- Model no
- GSD63
Description
About the GSD63
About the GSD63

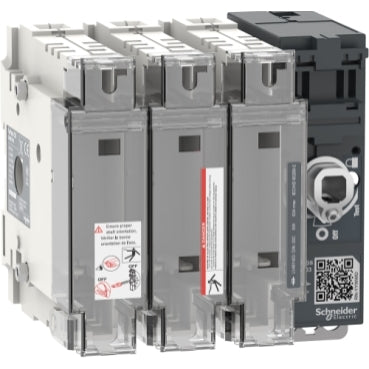

The Schneider Electric LV481403 FuPacT GSD63 is a 3-pole switch disconnector fuse rated 63 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH000 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with a 100 kA breaking capacity with fuses at 415 V.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The GSD63 is the smallest frame in the FuPacT GS switch-disconnector-fuse range, sized for DIN NH000 fuses up to 63 A; larger loads step up through the NH00, NH1, NH2 and NH3 frame sizes in the same family. Its direct frontal handle option keeps the footprint compact for panels with front access, while the external front or right-side rotary handle (with 200, 320 or 400 mm extension shafts) suits enclosures where the device sits behind a door. The 100 kA breaking capacity with fuses at both 415 V and 690 V means the fuse, not the switch mechanism, carries the fault-interruption duty.
Specification
Full specification
Main 19
| Range | FuPacT |
|---|---|
| Product name | FuPacT GS |
| Device short name | GSD63 |
| Product or component type | Switch-disconnector-fuse |
| Device application | Equipment protection, monitoring and control, Distribution |
| Poles description | 3P |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH000 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | No |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 63 A ( 35 °C ) power dissipation per fuse: 6 W |
| [Ithe] conventional enclosed thermal current | 63 A at 35 °C, Power dissipation per fuse: 6 W |
| Maximum power dissipation per pole | 4.4 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20 |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-22A: 63 A at 220/240 V AC 50/60 Hz, AC-23A: 63 A at 220/240 V AC 50/60 Hz, AC-22B: 63 A at 220/240 V AC 50/60 Hz, AC-23B: 63 A at 220/240 V AC 50/60 Hz, AC-22A: 63 A at 380/415 V AC 50/60 Hz, AC-23A: 63 A at 380/415 V AC 50/60 Hz, AC-22B: 63 A at 380/415 V AC 50/60 Hz, AC-23B: 63 A at 380/415 V AC 50/60 Hz, AC-22A: 63 A at 660/690 V AC 50/60 Hz, AC-23A: 63 A at 660/690 V AC 50/60 Hz, AC-22B: 63 A at 660/690 V AC 50/60 Hz, AC-23B: 63 A at 660/690 V AC 50/60 Hz |
Complementary 18
| [Iq] Breaking capacity with fuses (kA RMS) | 100 kA at 415 V (AC), 100 kA at 690 V (AC) |
|---|---|
| Rated operational power in W | 30 kW at 380/400 V, 55 kW at 660/690 V |
| Contacts type and composition | 3 NO |
| Type of operating handle | Direct frontal, External frontal, External right side |
| Provision for padlocking | 3 padlocks |
| Mounting position | Vertical |
| Mounting mode | Fixed |
| Mounting support | Backplate, DIN rail |
| Mechanical durability | 10000 cycles |
| Electrical durability | AC-22A: 1500 cycles 415 V AC 50/60 Hz, AC-23A: 1500 cycles 415 V AC 50/60 Hz, AC-22A: 1500 cycles 690 V AC 50/60 Hz, AC-23A: 1500 cycles 690 V AC 50/60 Hz |
| Connections - terminals | Power circuit: screw-clamp terminals 10…25 mm² |
| Tightening torque | Power circuit: 3.2 N.m |
| Width | 136 mm |
| Height | 162 mm |
| Depth | 116 mm |
| Net weight | 1 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC, EAC |
Environment 7
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Flame resistance | 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1 |
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV481403 |
|---|---|
| Type designation | GSD63 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 12.800 cm |
| Package 1 Length | 19.700 cm |
| Package 1 Weight | 1.302 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 11.204 kg |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
