Part number
LV480903
Model no
ISFL630
$409.23 On request Dispatch — · From TürkiyeGet a Quote

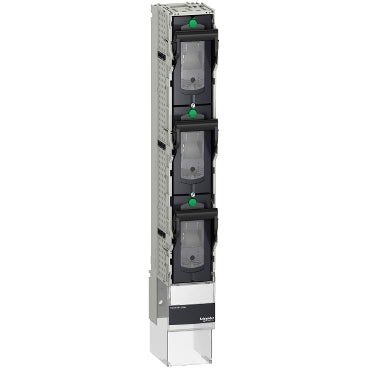

Schneider Electric LV480903 FuPacT ISFL630 3 x 1P 630 A 120 kA Busbar-Mount Fuse Switch Disconnector

FuPacT ISFL630 vertical busbar-mount fuse switch disconnector, 630 A 690 V AC, NH3 fuses, 120 kA.

Rated current
630 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the ISFL630

The Schneider Electric LV480903 FuPacT ISFL630 is a 3 x 1-pole vertical fuse switch disconnector rated 630 A at 690 V AC, built for direct mounting on 185 mm busbars. It takes NH3 fuses, delivers a 120 kA breaking capacity, and needs no extra clearance for current-transformer installation, since its compact 100 mm width keeps the panel footprint small for distribution and equipment-protection duty.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The ISFL630 is the 630 A vertical module in the FuPacT ISFL range, built around NH3 fuse carriers on the same 185 mm busbar centres and 100 mm width as the 400 A ISFL400; pick it when the circuit load exceeds 400 A continuous. Three individually switchable 1-pole units stack one above the other to form a 3-pole assembly, so each phase keeps visible-break isolation per EN/IEC 60947-3 and its own contact-position indicator. Its 25 kA/1 s short-time withstand and 52.5 kA making/breaking capacity at 690 V are higher than the 400 A variant's, which matters when selecting for selective coordination with downstream fused outgoing circuits, and the 3-padlock provision on the fuse-carrier handle supports lockout without extra hardware.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFL
Device short name ISFL630
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 3 x 1P switchable
Number of fuse carriers 3
Fuse type DIN
Fuse size NH3
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 630 A ( 40 °C ) power dissipation per fuse: 48 W
[Ithe] conventional enclosed thermal current 630 A at 40 °C, Power dissipation per fuse: 48 W
Maximum power dissipation per pole 85 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 630 A at 220/240 V AC 50/60 Hz, AC-21B: 630 A at 380/415 V AC 50/60 Hz, AC-21B: 630 A at 440/480 V AC 50/60 Hz, AC-21B: 630 A at 500 V AC 50/60 Hz, AC-21B: 630 A at 660/690 V AC 50/60 Hz, AC-21B: 400 A at 800 V AC 50/60 Hz, AC-22B: 630 A at 220/240 V AC 50/60 Hz, AC-22B: 630 A at 380/415 V AC 50/60 Hz, AC-22B: 630 A at 440/480 V AC 50/60 Hz, AC-22B: 630 A at 500 V AC 50/60 Hz, AC-23B: 630 A at 220/240 V AC 50/60 Hz, AC-23B: 630 A at 380/415 V AC 50/60 Hz

Complementary 21

Breaking capacity 120 kA at 415 V (AC), 120 kA at 500 V (AC), 120 kA at 690 V (AC)
[Icw] rated short-time withstand current 25 kA for 1 s
[Im] rated making and breaking capacity 52.5 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Busbars
Mounting location One above the other
Contact operation Single-break
Mechanical durability 800 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Screw connection downstream M12 630 A, Direct connection upstream 630 A 185 mm
Tightening torque 32 N.m
Width 100 mm
Height 741 mm
Depth 190 mm
Net weight 5.6 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC <= 690 V, EAC <= 690 V

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480903
Type designation ISFL630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.100 cm
Package 1 Width 21.300 cm
Package 1 Length 78.400 cm
Package 1 Weight 6.000 kg
Unit Type of Package 2 P12
Number of Units in Package 2 50
Package 2 Height 120.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 312.000 kg
Shipping weight 5.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
