- Part number
- LV480902
- Model no
- ISFL400
Description
About the ISFL400
About the ISFL400

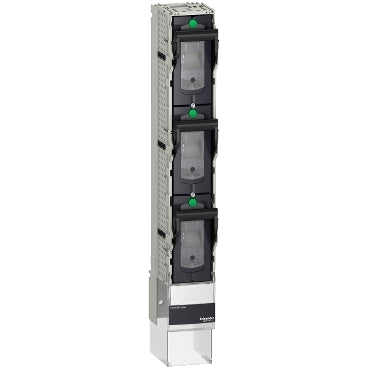

The Schneider Electric LV480902 FuPacT ISFL400 is a 3 x 1-pole vertical fuse switch disconnector rated 400 A at 690 V AC, built for direct mounting on 185 mm busbars. It takes NH2 fuses, delivers a 120 kA breaking capacity, and needs no extra clearance for current-transformer installation, since its compact 100 mm width keeps the panel footprint small for distribution and equipment-protection duty.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The ISFL400 is the 400 A vertical module in the FuPacT ISFL range, built around NH2 fuse carriers and direct connection to 185 mm busbars; projects needing a higher current or NH3 fuses on the same busbar centres use the 630 A ISFL630 instead. Three individually switchable 1-pole units stack one above the other to form a 3-pole assembly, so each phase keeps visible-break isolation per EN/IEC 60947-3 and its own contact-position indicator. The 15 kA/1 s short-time withstand and 120 kA breaking capacity let it serve as a sub-distribution disconnector ahead of downstream fused outgoing circuits, while the 3-padlock provision on the fuse-carrier handle supports lockout without extra hardware.
Specification
Full specification
Main 20
| Range | FuPacT |
|---|---|
| Product name | FuPacT ISFL |
| Device short name | ISFL400 |
| Product or component type | Fuse-switch disconnector |
| Device application | Equipment protection, monitoring and control, Distribution |
| Signalling function | Separated fuse monitor |
| Poles description | 3 x 1P switchable |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | Yes |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 400 A ( 40 °C ) power dissipation per fuse: 34 W |
| [Ithe] conventional enclosed thermal current | 400 A at 40 °C, Power dissipation per fuse: 34 W |
| Maximum power dissipation per pole | 53 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz, 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-21B: 400 A at 220/240 V AC 50/60 Hz, AC-21B: 400 A at 380/415 V AC 50/60 Hz, AC-21B: 400 A at 440/480 V AC 50/60 Hz, AC-21B: 400 A at 500 V AC 50/60 Hz, AC-21B: 400 A at 660/690 V AC 50/60 Hz, AC-21B: 250 A at 800 V AC 50/60 Hz, AC-22B: 400 A at 220/240 V AC 50/60 Hz, AC-22B: 400 A at 380/415 V AC 50/60 Hz, AC-22B: 400 A at 440/480 V AC 50/60 Hz, AC-22B: 400 A at 500 V AC 50/60 Hz, AC-23B: 400 A at 220/240 V AC 50/60 Hz, AC-23B: 400 A at 380/415 V AC 50/60 Hz |
Complementary 21
| Breaking capacity | 120 kA at 415 V (AC), 120 kA at 500 V (AC), 120 kA at 690 V (AC) |
|---|---|
| [Icw] rated short-time withstand current | 15 kA for 1 s |
| [Im] rated making and breaking capacity | 30 kA at 690 V |
| Rated duty | Uninterrupted |
| Control type | Fuse carriers handle |
| Provision for padlocking | 3 padlocks |
| Mounting position | Vertical |
| Mounting mode | Fixed |
| Mounting support | Busbars |
| Mounting location | One above the other |
| Contact operation | Single-break |
| Mechanical durability | 800 cycles |
| Electrical durability | AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connections - terminals | Screw connection downstream M12 400 A, Direct connection upstream 400 A 185 mm |
| Tightening torque | 32 N.m |
| Width | 100 mm |
| Height | 741 mm |
| Depth | 190 mm |
| Net weight | 5 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC <= 690 V, EAC <= 690 V |
Environment 6
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV480902 |
|---|---|
| Type designation | ISFL400 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.4 cm |
| Package 1 Width | 21.6 cm |
| Package 1 Length | 78.7 cm |
| Package 1 Weight | 6.0 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 117.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 312.0 kg |
| Shipping weight | 5.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
