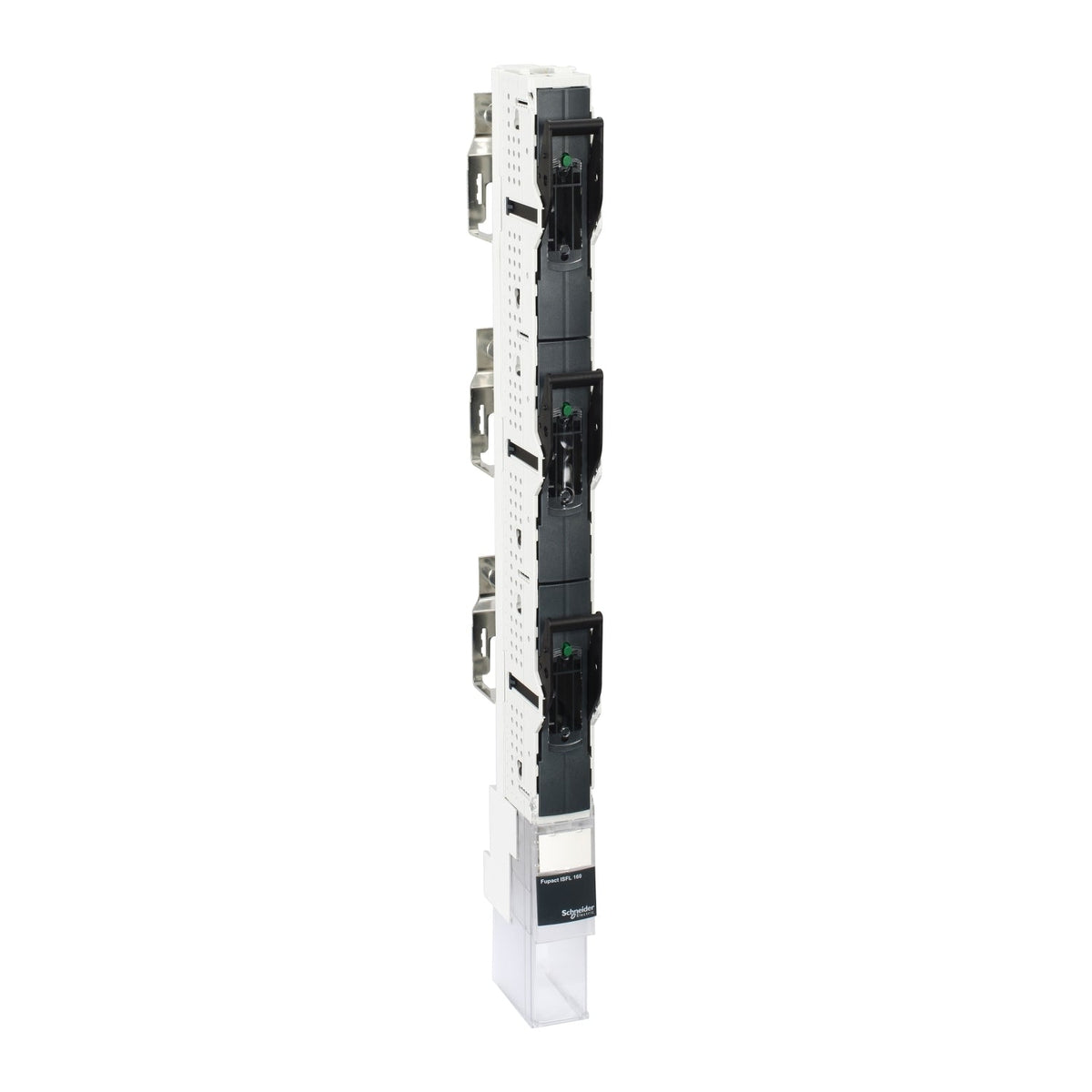

Schneider Electric LV480900 Fupact ISFL160 1P 160 A NH000/NH00 Fuse Switch Disconnector

ISFL160 1P 160 A fuse-switch disconnector, NH000/NH00, 185 mm busbar, direct mount.

Rated current
160 A
Rated operational voltage
690 V AC
Description

About the ISFL160

The Schneider Electric LV480900 is a single-pole Fupact ISFL160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH000/NH00 fuse links and built for 185 mm busbar, direct mount mounting with screw connection downstream m8 160 a. It carries a 100 kA at 415–690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480900 is a single-pole ISFL160 module rated 160 A — three are mounted side by side on the 185 mm busbar to build a complete 3-pole fuse-switch disconnector, with each pole switching and isolating independently. Use the ganged 3-pole ISFL160 version instead when a single handle operating all three poles together is preferred.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFL
Device short name ISFL160
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 3 x 1P switchable
Number of fuse carriers 3
Fuse type DIN
Fuse size NH000, NH00
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 160 A ( 40 °C ) power dissipation per fuse: 12 W
[Ithe] conventional enclosed thermal current 160 A at 40 °C, Power dissipation per fuse: 12 W
Maximum power dissipation per pole 19 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 160 A at 220/240 V AC 50/60 Hz, AC-21B: 160 A at 380/415 V AC 50/60 Hz, AC-21B: 160 A at 440/480 V AC 50/60 Hz, AC-21B: 160 A at 500 V AC 50/60 Hz, AC-21B: 160 A at 660/690 V AC 50/60 Hz, AC-21B: 80 A at 800 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 440/480 V AC 50/60 Hz, AC-22B: 160 A at 500 V AC 50/60 Hz, AC-22B: 160 A at 660/690 V AC 50/60 Hz, AC-23B: 160 A at 380/415 V AC 50/60 Hz, AC-23B: 160 A at 220/240 V AC 50/60 Hz

Complementary 21

Breaking capacity 100 kA at 415 V (AC), 100 kA at 500 V (AC), 100 kA at 690 V (AC)
[Icw] rated short-time withstand current 5 kA for 1 s
[Im] rated making and breaking capacity 7.65 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking 3 padlocks
Mounting position Horizontal, Vertical
Mounting mode Fixed
Mounting support Busbars
Mounting location One above the other
Contact operation Single-break
Mechanical durability 1400 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Screw connection downstream M8 160 A, Direct connection upstream 160 A 185 mm
Tightening torque 14 N.m
Width 50 mm
Height 405 mm
Depth 123 mm
Net weight 1.3 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC <= 690 V, EAC <= 690 V

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480900
Type designation ISFL160
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 19.000 cm
Package 1 Length 76.400 cm
Package 1 Weight 2.979 kg
Unit Type of Package 2 P12
Number of Units in Package 2 50
Package 2 Height 50.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 160.950 kg
Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
