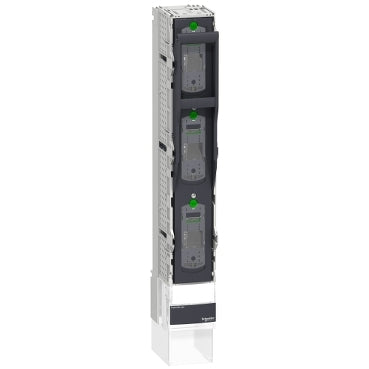

Schneider Electric LV480858 Fupact ISFL630 3P 630 A NH3 Fuse Switch Disconnector

ISFL630 3P 630 A fuse-switch disconnector, NH3, 185 mm busbar, direct mount.

Rated current
630 A
Rated operational voltage
690 V AC
Description

About the ISFL630

The Schneider Electric LV480858 is a three-pole Fupact ISFL630 fuse-switch disconnector rated 630 A at 690 V AC for AC-21B duty, sized for NH3 fuse links and built for 185 mm busbar, direct mount mounting with screw connection downstream m12 630 a. It carries a 120 kA at 415–690 V AC breaking capacity with fuses and a 25 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480858 switches all three poles together from a single handle, rated 630 A with a 120 kA at 415–690 V AC breaking capacity with fuses installed. Choose the 185 mm busbar, direct mount variant over the other ISFL630 mounting options when the busbar spacing and cable size in the panel match this connection type.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFL
Device short name ISFL630
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 1 x 3P switchable
Number of fuse carriers 3
Fuse type DIN
Fuse size NH3
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 630 A ( 40 °C ) power dissipation per fuse: 48 W
[Ithe] conventional enclosed thermal current 630 A at 40 °C, Power dissipation per fuse: 48 W
Maximum power dissipation per pole 85 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 630 A at 220/240 V AC 50/60 Hz, AC-21B: 630 A at 380/415 V AC 50/60 Hz, AC-21B: 630 A at 440/480 V AC 50/60 Hz, AC-21B: 630 A at 500 V AC 50/60 Hz, AC-21B: 630 A at 660/690 V AC 50/60 Hz, AC-21B: 400 A at 800 V AC 50/60 Hz, AC-22B: 630 A at 220/240 V AC 50/60 Hz, AC-22B: 630 A at 380/415 V AC 50/60 Hz, AC-22B: 630 A at 440/480 V AC 50/60 Hz, AC-22B: 630 A at 500 V AC 50/60 Hz, AC-23B: 630 A at 220/240 V AC 50/60 Hz, AC-23B: 630 A at 380/415 V AC 50/60 Hz

Complementary 21

Breaking capacity 120 kA at 415 V (AC), 120 kA at 500 V (AC), 120 kA at 690 V (AC)
[Icw] rated short-time withstand current 25 kA for 1 s
[Im] rated making and breaking capacity 52.5 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Busbars
Mounting location One above the other
Contact operation Single-break
Mechanical durability 800 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Screw connection downstream M12 630 A, Direct connection upstream 630 A 185 mm
Tightening torque 40 N.m
Width 100 mm
Height 741 mm
Depth 190 mm
Net weight 5.6 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC <= 690 V, EAC <= 690 V

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480858
Type designation ISFL630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 21.500 cm
Package 1 Length 79.000 cm
Package 1 Weight 6.112 kg
Unit Type of Package 2 P12
Number of Units in Package 2 50
Package 2 Height 125.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 317.600 kg
Shipping weight 5.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
