- Part number
- LV480857
- Model no
- ISFL400
Description
About the ISFL400
About the ISFL400

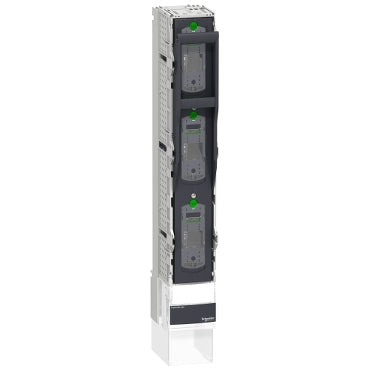

The Schneider Electric LV480857 is a three-pole Fupact ISFL400 fuse-switch disconnector rated 400 A at 690 V AC for AC-21B duty, sized for NH2 fuse links and built for 185 mm busbar, direct mount mounting with screw connection downstream m12 400 a. It carries a 120 kA at 415–690 V AC breaking capacity with fuses and a 15 kA for 1 s short-time withstand rating.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The LV480857 switches all three poles together from a single handle, rated 400 A with a 120 kA at 415–690 V AC breaking capacity with fuses installed. Choose the 185 mm busbar, direct mount variant over the other ISFL400 mounting options when the busbar spacing and cable size in the panel match this connection type.
Specification
Full specification
Main 20
| Range | FuPacT |
|---|---|
| Product name | FuPacT ISFL |
| Device short name | ISFL400 |
| Product or component type | Fuse-switch disconnector |
| Device application | Equipment protection, monitoring and control, Distribution |
| Signalling function | Separated fuse monitor |
| Poles description | 1 x 3P switchable |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | Yes |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 400 A ( 40 °C ) power dissipation per fuse: 34 W |
| [Ithe] conventional enclosed thermal current | 400 A at 40 °C, Power dissipation per fuse: 34 W |
| Maximum power dissipation per pole | 53 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz, 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-21B: 400 A at 220/240 V AC 50/60 Hz, AC-21B: 400 A at 380/415 V AC 50/60 Hz, AC-21B: 400 A at 440/480 V AC 50/60 Hz, AC-21B: 400 A at 500 V AC 50/60 Hz, AC-21B: 400 A at 660/690 V AC 50/60 Hz, AC-21B: 250 A at 800 V AC 50/60 Hz, AC-22B: 400 A at 220/240 V AC 50/60 Hz, AC-22B: 400 A at 380/415 V AC 50/60 Hz, AC-22B: 400 A at 440/480 V AC 50/60 Hz, AC-22B: 400 A at 500 V AC 50/60 Hz, AC-23B: 400 A at 220/240 V AC 50/60 Hz, AC-23B: 400 A at 380/415 V AC 50/60 Hz |
Complementary 21
| Breaking capacity | 120 kA at 415 V (AC), 120 kA at 500 V (AC), 120 kA at 690 V (AC) |
|---|---|
| [Icw] rated short-time withstand current | 15 kA for 1 s |
| [Im] rated making and breaking capacity | 30 kA at 690 V |
| Rated duty | Uninterrupted |
| Control type | Fuse carriers handle |
| Provision for padlocking | 3 padlocks |
| Mounting position | Vertical |
| Mounting mode | Fixed |
| Mounting support | Busbars |
| Mounting location | One above the other |
| Contact operation | Single-break |
| Mechanical durability | 800 cycles |
| Electrical durability | AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connections - terminals | Screw connection downstream M12 400 A, Direct connection upstream 400 A 185 mm |
| Tightening torque | 40 N.m |
| Width | 100 mm |
| Height | 741 mm |
| Depth | 190 mm |
| Net weight | 5 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC <= 690 V, EAC <= 690 V |
Environment 6
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV480857 |
|---|---|
| Type designation | ISFL400 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 21.600 cm |
| Package 1 Length | 79.000 cm |
| Package 1 Weight | 5.567 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 122.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 292.350 kg |
| Shipping weight | 5.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for LV480857
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Quick answers
Questions about the ISFL400
What is the rated current of ISFL400?
The rated current of ISFL400 is 400 A.
Which supply voltage is ISFL400 rated for?
The rated operational voltage of ISFL400 is 690 V AC.
What is the HS code of ISFL400 for customs?
The tariff (HS) code on file for ISFL400 is 853610.
Where does ISFL400 ship from, and how fast?
ISFL400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
