- Part number
- LV480852
- Model no
- ISFL160
Description
About the ISFL160
About the ISFL160

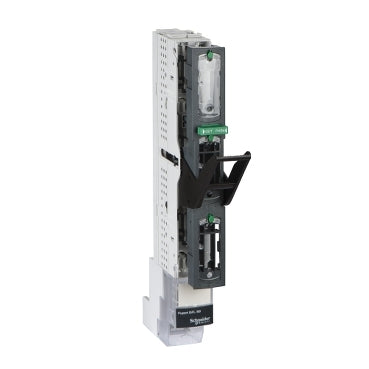

The Schneider Electric LV480852 is a three-pole Fupact ISFL160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH000/NH00 fuse links and built for 100 mm busbar, direct mount mounting with m8 terminals. It carries a 100 kA at 415–690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.
Certifications & Standards
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The LV480852 switches all three poles together from a single handle, rated 160 A with a 100 kA at 415–690 V AC breaking capacity with fuses installed. Choose the 100 mm busbar, direct mount variant over the other ISFL160 mounting options when the busbar spacing and cable size in the panel match this connection type.
Specification
Full specification
Main 20
| Range | FuPacT |
|---|---|
| Product name | FuPacT ISFL |
| Device short name | ISFL160 |
| Product or component type | Fuse-switch disconnector |
| Device application | Equipment protection, monitoring and control, Distribution |
| Signalling function | Separated fuse monitor |
| Poles description | 1 x 3P switchable |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH000, NH00 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | Yes |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 160 A ( 40 °C ) power dissipation per fuse: 12 W |
| [Ithe] conventional enclosed thermal current | 160 A at 40 °C, Power dissipation per fuse: 12 W |
| Maximum power dissipation per pole | 19 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz, 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-21B: 160 A at 220/240 V AC 50/60 Hz, AC-21B: 160 A at 380/415 V AC 50/60 Hz, AC-21B: 160 A at 440/480 V AC 50/60 Hz, AC-21B: 160 A at 500 V AC 50/60 Hz, AC-21B: 160 A at 660/690 V AC 50/60 Hz, AC-21B: 80 A at 800 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 440/480 V AC 50/60 Hz, AC-22B: 160 A at 500 V AC 50/60 Hz, AC-22B: 160 A at 660/690 V AC 50/60 Hz, AC-23B: 160 A at 380/415 V AC 50/60 Hz, AC-23B: 160 A at 220/240 V AC 50/60 Hz |
Complementary 20
| Breaking capacity | 100 kA at 415 V (AC), 100 kA at 500 V (AC), 100 kA at 690 V (AC) |
|---|---|
| [Icw] rated short-time withstand current | 5 kA for 1 s |
| [Im] rated making and breaking capacity | 7.65 kA at 690 V |
| Rated duty | Uninterrupted |
| Control type | Fuse carriers handle |
| Provision for padlocking | 3 padlocks |
| Mounting position | Horizontal, Vertical |
| Mounting mode | Fixed |
| Mounting support | Busbars |
| Mounting location | One above the other |
| Contact operation | Single-break |
| Mechanical durability | 1400 cycles |
| Electrical durability | AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connections - terminals | M8 terminals |
| Tightening torque | 14 N.m |
| Width | 50 mm |
| Height | 405 mm |
| Depth | 123 mm |
| Net weight | 1.3 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
Environment 6
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 70 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV480852 |
|---|---|
| Type designation | ISFL160 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 43.000 cm |
| Package 1 Weight | 1.253 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 11 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 14.485 kg |
| Shipping weight | 1.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
