Part number
LV480851
Model no
ISFL160
$149.27 On request Dispatch — · From TürkiyeGet a Quote

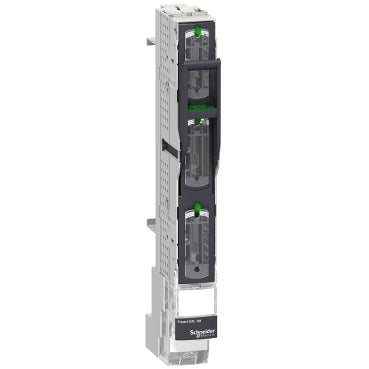

Schneider Electric LV480851 Fupact ISFL160 3P 160 A NH00/NH000 Fuse Switch Disconnector

ISFL160 3P 160 A fuse-switch disconnector, NH00/NH000, 60 mm busbar, cable connectors.

Rated current
160 A
Rated operational voltage
690 V AC
Description

About the ISFL160

The Schneider Electric LV480851 is a three-pole Fupact ISFL160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH00/NH000 fuse links and built for 60 mm busbar, cable connectors mounting with cable connectors, 95 mm². It carries a 100 kA at 415–690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.

Certifications & Standards

  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480851 switches all three poles together from a single handle, rated 160 A with a 100 kA at 415–690 V AC breaking capacity with fuses installed. Choose the 60 mm busbar, cable connectors variant over the other ISFL160 mounting options when the busbar spacing and cable size in the panel match this connection type.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFL
Device short name ISFL160
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 1 x 3P switchable
Number of fuse carriers 3
Fuse type DIN
Fuse size NH00, NH000
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 160 A ( 40 °C ) power dissipation per fuse: 12 W
[Ithe] conventional enclosed thermal current 160 A at 40 °C, Power dissipation per fuse: 12 W
Maximum power dissipation per pole 19 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 160 A at 220/240 V AC 50/60 Hz, AC-21B: 160 A at 380/415 V AC 50/60 Hz, AC-21B: 160 A at 440/480 V AC 50/60 Hz, AC-21B: 160 A at 500 V AC 50/60 Hz, AC-21B: 160 A at 660/690 V AC 50/60 Hz, AC-21B: 80 A at 800 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 440/480 V AC 50/60 Hz, AC-22B: 160 A at 500 V AC 50/60 Hz, AC-22B: 160 A at 660/690 V AC 50/60 Hz, AC-23B: 160 A at 380/415 V AC 50/60 Hz, AC-23B: 160 A at 220/240 V AC 50/60 Hz

Complementary 20

Breaking capacity 100 kA at 415 V (AC), 100 kA at 500 V (AC), 100 kA at 690 V (AC)
[Icw] rated short-time withstand current 5 kA for 1 s
[Im] rated making and breaking capacity 7.65 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking 3 padlocks
Mounting position Horizontal, Vertical
Mounting mode Fixed
Mounting support Busbars
Mounting location One above the other
Contact operation Single-break
Mechanical durability 1400 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals Cable connectors 95 mm²
Tightening torque 14 N.m
Width 50 mm
Height 405 mm
Depth 123 mm
Net weight 1.3 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 70 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480851
Type designation ISFL160
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 15.000 cm
Package 1 Length 44.000 cm
Package 1 Weight 1.314 kg
Unit Type of Package 2 S04
Number of Units in Package 2 11
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 15.400 kg
Shipping weight 1.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV480851

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • EN/IEC 60947-1
  • EN/IEC 60947-3
Quick answers

Questions about the ISFL160

What is the rated current of ISFL160?

The rated current of ISFL160 is 160 A.

Which supply voltage is ISFL160 rated for?

The rated operational voltage of ISFL160 is 690 V AC.

What is the HS code of ISFL160 for customs?

The tariff (HS) code on file for ISFL160 is 853610.

Where does ISFL160 ship from, and how fast?

ISFL160 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
