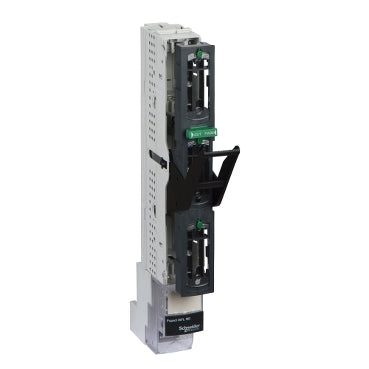

Schneider Electric LV480850 Fupact ISFL160 3P 160 A NH000/NH00 Fuse Switch Disconnector

% $-145.62
Schneider Electric LV480850 Fupact ISFL160 3P 160 A Fuse Switch Disconnector – NH000/NH00
Schneider Electric LV480850 Fupact ISFL160 3P 160 A Fuse Switch Disconnector – NH000/NH00

Schneider Electric LV480850 Fupact ISFL160 3P 160 A NH000/NH00 Fuse Switch Disconnector

Brand: Schneider Electric
Reference No: LV480850
Catalog No: LV480850
Tariff Code (HS): 853610
Rated Current: 160 A
Rated Voltage: 690 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$145.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV480850 is a three-pole Fupact ISFL160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH000/NH00 fuse links and built for 60 mm busbar, hook-on mounting with m8 terminals. It carries a 100 kA at 415–690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.

Technical Specifications

Reference LV480850
Brand Schneider Electric
Range FuPacT
Device short name ISFL160
Poles 3P, switchable as one 3-pole unit
Fuse type / size DIN NH000/NH00
[Ith] conventional thermal current 160 A at 40 °C (12 W per fuse)
[Ue] rated operational voltage 690 V AC 50/60 Hz (800 V AC AC-20); 800 V DC DC-20
[Ui] / [Uimp] insulation / impulse withstand voltage 1000 V AC / 1000 V DC / 8 kV
[Ie] rated operational current 160 A, AC-21B/AC-22B, 220–690 V AC (80 A at 800 V AC); 160 A, AC-23B, 220–415 V AC
Breaking capacity with fuses 100 kA at 415–690 V AC
[Icw] rated short-time withstand current 5 kA for 1 s
Rated making/breaking capacity 7.65 kA at 690 V (rated making/breaking)
Control type Fuse carriers handle
Mounting Busbars, 60 mm, hook-on connection
Connections / tightening torque M8 terminals (14 N.m)
Dimensions (W x H x D) / net weight 50 mm x 405 mm x 123 mm / 1.3 kg
IP degree of protection IP20 (IEC 60529)
Standard IEC 60947-1, IEC 60947-3

Certifications & Standards

  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480850 switches all three poles together from a single handle, rated 160 A with a 100 kA at 415–690 V AC breaking capacity with fuses installed. Choose the 60 mm busbar, hook-on variant over the other ISFL160 mounting options when the busbar spacing and cable size in the panel match this connection type.

Technical Details

Short Description
ISFL160 3P 160 A fuse-switch disconnector, NH000/NH00, 60 mm busbar, hook-on.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Busbars, 60 mm, hook-on connection
Protection Type
IP20
Catalog No
LV480850
Delivery Date (Days)
30 days
Model Number
ISFL160
Tariff Code
853610
