Part number
LV480807
Model no
ISFT400
$462.99 On request Dispatch — · From TürkiyeGet a Quote

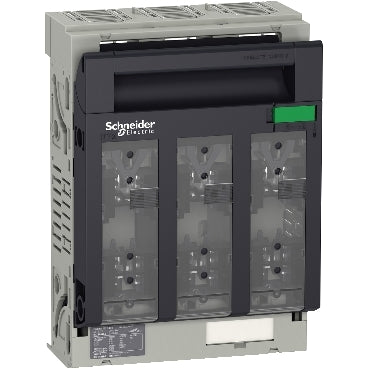

Schneider Electric LV480807 Fupact ISFT400 3P 400 A NH2 Fuse Switch Disconnector

ISFT400 3P 400 A fuse-switch disconnector, NH2, 60 mm busbar, turnable hook.

Rated current
400 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the ISFT400

The Schneider Electric LV480807 is a three-pole Fupact ISFT400 fuse-switch disconnector rated 400 A at 690 V AC for AC-21B duty, sized for NH2 fuse links and built for 60 mm busbar, turnable hook mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 15.2 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480807 is a fixed, non-switchable ISFT400 disconnector rated 400 A, sized for NH2 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the 60 mm busbar, turnable hook version over the other ISFT400 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Specification

Full specification

71 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFT
Device short name ISFT400
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH2
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 400 A ( 40 °C ) power dissipation per fuse: 34 W
[Ithe] conventional enclosed thermal current 400 A at 40 °C, Power dissipation per fuse: 34 W
Maximum power dissipation per pole 44 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 440 V DC, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 400 A at 220/240 V AC 50/60 Hz, AC-21B: 400 A at 380/415 V AC 50/60 Hz, AC-21B: 400 A at 440/480 V AC 50/60 Hz, AC-21B: 400 A at 500 V AC 50/60 Hz, AC-21B: 400 A at 660/690 V AC 50/60 Hz, AC-22B: 400 A at 220/240 V AC 50/60 Hz, AC-22B: 400 A at 380/415 V AC 50/60 Hz, AC-22B: 400 A at 440/480 V AC 50/60 Hz, AC-22B: 400 A at 500 V AC 50/60 Hz, AC-22B: 400 A at 660/690 V AC 50/60 Hz, DC-21B: 400 A at 220 V DC (3 poles in series), DC-21B: 400 A at 440 V DC (3 poles in series), DC-22B: 400 A at 220 V DC (3 poles in series)

Complementary 21

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 80 kA at 500 V (AC), 25 kA at 690 V (AC)
[Icw] rated short-time withstand current 15.2 kA for 1 s
[Icm] Rated short-circuit making capacity 30.4 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking Lead seal
Mounting position Vertical, Horizontal
Mounting mode Fixed
Mounting support Busbars
Mounting location Side by side
Contact operation Single-break
Mechanical durability 1000 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 690 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals M10 terminals
Tightening torque 8 N.m for terminal
Width 210 mm
Height 306 mm
Depth 130 mm
Net weight 2 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP3x front face: conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480807
Type designation ISFT400
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 16 cm
Package 1 Width 23.5 cm
Package 1 Length 33 cm
Package 1 Weight 3.34 kg
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.636 kg
Shipping weight 2.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV480807

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3
Quick answers

Questions about the ISFT400

What is the rated current of ISFT400?

The rated current of ISFT400 is 400 A.

Which supply voltage is ISFT400 rated for?

The rated operational voltage of ISFT400 is 690 V AC.

What is the HS code of ISFT400 for customs?

The tariff (HS) code on file for ISFT400 is 853610.

Where does ISFT400 ship from, and how fast?

ISFT400 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
