Schneider Electric LV480806 Fupact ISFT400 3P 400 A NH2 Fuse Switch Disconnector

% $-244.35

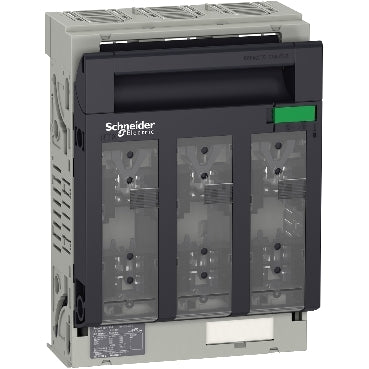

Schneider Electric LV480806 Fupact ISFT400 3P 400 A Fuse Switch Disconnector – NH2
Schneider Electric LV480806 Fupact ISFT400 3P 400 A Fuse Switch Disconnector – NH2

Schneider Electric LV480806 Fupact ISFT400 3P 400 A NH2 Fuse Switch Disconnector

Brand: Schneider Electric
Reference No: LV480806
Catalog No: LV480806
Tariff Code (HS): 853610
Rated Current: 400 A
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$244.35

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV480806 is a three-pole Fupact ISFT400 fuse-switch disconnector rated 400 A at 690 V AC for AC-21B duty, sized for NH2 fuse links and built for backplate mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 15.2 kA for 1 s short-time withstand rating.

Technical Specifications

Reference LV480806
Brand Schneider Electric
Range FuPacT
Device short name ISFT400
Poles 3P (3 fuse carriers)
Fuse type / size DIN NH2
[Ith] conventional thermal current 400 A at 40 °C (34 W per fuse)
[Ue] rated operational voltage 690 V AC 50/60 Hz (800 V AC AC-20); 440 V DC (800 V DC DC-20)
[Ui] / [Uimp] insulation / impulse withstand voltage 1000 V AC / 1000 V DC / 8 kV
[Ie] rated operational current 400 A, AC-21B, 220–690 V AC; 400 A, AC-22B, up to 690 V AC; 400 A DC-21B/DC-22B at 220–440 V DC (3 poles in series)
Breaking capacity with fuses 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC
[Icw] rated short-time withstand current 15.2 kA for 1 s
Rated making/breaking capacity 30.4 kA at 690 V
Control type Fuse carriers handle
Mounting Backplate
Connections / tightening torque M10 terminals (20 N.m)
Dimensions (W x H x D) / net weight 210 mm x 306 mm x 130 mm / 2 kg
IP degree of protection IP3x front face (IEC 60529)
Standard IEC 60947-1, IEC 60947-3

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480806 is a fixed, non-switchable ISFT400 disconnector rated 400 A, sized for NH2 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the backplate version over the other ISFT400 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Technical Details

Short Description
ISFT400 3P 400 A fuse-switch disconnector, NH2, backplate.
Rated Current (Ampere)
400 A
Rated Voltage (VAC)
690 V
Mounting Type
Backplate
Protection Type
IP3x
Catalog No
LV480806
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
ISFT400
Tariff Code
853610
