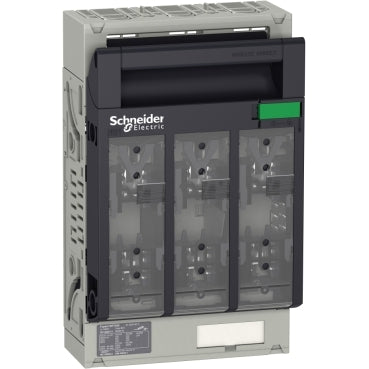

Schneider Electric LV480804 Fupact ISFT250 3P 250 A NH1 Fuse Switch Disconnector

ISFT250 3P 250 A fuse-switch disconnector, NH1, backplate.

Rated current
250 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the ISFT250

The Schneider Electric LV480804 is a three-pole Fupact ISFT250 fuse-switch disconnector rated 250 A at 690 V AC for AC-21B duty, sized for NH1 fuse links and built for backplate mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 8.6 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480804 is a fixed, non-switchable ISFT250 disconnector rated 250 A, sized for NH1 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the backplate version over the other ISFT250 mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Specification

Full specification

77 values · Last verified 30 Oct 2026

Main 20

Range FuPacT
Product name FuPacT ISFT
Device short name ISFT250
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Signalling function Separated fuse monitor
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH1
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 250 A ( 40 °C ) power dissipation per fuse: 23 W
[Ithe] conventional enclosed thermal current 250 A at 40 °C, Power dissipation per fuse: 23 W
Maximum power dissipation per pole 29 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 440 V DC, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-21B: 250 A at 220/240 V AC 50/60 Hz, AC-21B: 250 A at 380/415 V AC 50/60 Hz, AC-21B: 250 A at 440/480 V AC 50/60 Hz, AC-21B: 250 A at 500 V AC 50/60 Hz, AC-21B: 250 A at 660/690 V AC 50/60 Hz, AC-22B: 250 A at 220/240 V AC 50/60 Hz, AC-22B: 250 A at 380/415 V AC 50/60 Hz, AC-22B: 250 A at 440/480 V AC 50/60 Hz, AC-22B: 250 A at 500 V AC 50/60 Hz, AC-22B: 250 A at 660/690 V AC 50/60 Hz, DC-21B: 250 A at 220 V DC (3 poles in series), DC-21B: 250 A at 440 V DC (3 poles in series), DC-22B: 250 A at 220 V DC (3 poles in series)

Complementary 21

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 80 kA at 500 V (AC), 25 kA at 690 V (AC)
[Icw] rated short-time withstand current 8.6 kA for 1 s
[Icm] Rated short-circuit making capacity 14.6 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking Lead seal
Mounting position Vertical, Horizontal
Mounting mode Fixed
Mounting support Backplate
Mounting location Side by side
Contact operation Single-break
Mechanical durability 1600 cycles
Electrical durability AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 690 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz
Connections - terminals M10 terminals
Tightening torque 12 N.m for terminal
Width 184 mm
Height 306 mm
Depth 110 mm
Net weight 2 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP3x front face: conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 77 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480804
Type designation ISFT250
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 20.000 cm
Package 1 Length 35.200 cm
Package 1 Weight 2.510 kg
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.340 kg
Unit Type of Package 3 P12
Number of Units in Package 3 36
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 104.360 kg
Shipping weight 2.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
