- Part number
- LV480803
- Model no
- ISFT160
Description
About the ISFT160
About the ISFT160

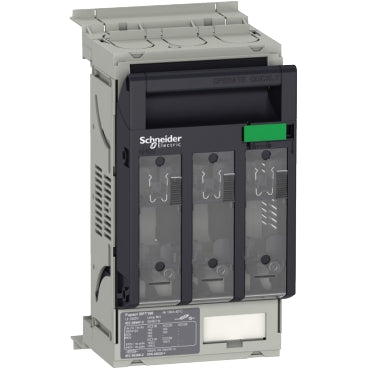

The Schneider Electric LV480803 is a three-pole Fupact ISFT160 fuse-switch disconnector rated 160 A at 690 V AC for AC-21B duty, sized for NH00 fuse links and built for 60 mm busbar, turnable hook mounting with m10 terminals. It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 5 kA for 1 s short-time withstand rating.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The LV480803 is a fixed, non-switchable ISFT160 disconnector rated 160 A, sized for NH00 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the 60 mm busbar, turnable hook version over the other ISFT160 mounting variants in this range when it matches the busbar or cable connection already used in the panel.
Specification
Full specification
Main 20
| Range | FuPacT |
|---|---|
| Product name | FuPacT ISFT |
| Device short name | ISFT160 |
| Product or component type | Fuse-switch disconnector |
| Device application | Equipment protection, monitoring and control, Distribution |
| Signalling function | Separated fuse monitor |
| Poles description | 3P |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH00 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | Yes |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 160 A ( 40 °C ) power dissipation per fuse: 12 W |
| [Ithe] conventional enclosed thermal current | 160 A at 40 °C, Power dissipation per fuse: 12 W |
| Maximum power dissipation per pole | 15 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 440 V DC, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz, 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | AC-21B: 160 A at 220/240 V AC 50/60 Hz, AC-21B: 160 A at 380/415 V AC 50/60 Hz, AC-21B: 160 A at 440/480 V AC 50/60 Hz, AC-21B: 160 A at 500 V AC 50/60 Hz, AC-21B: 160 A at 660/690 V AC 50/60 Hz, AC-22B: 160 A at 220/240 V AC 50/60 Hz, AC-22B: 160 A at 380/415 V AC 50/60 Hz, AC-22B: 160 A at 440/480 V AC 50/60 Hz, AC-22B: 160 A at 500 V AC 50/60 Hz, DC-21B: 160 A at 220 V DC (3 poles in series), DC-21B: 125 A at 440 V DC (3 poles in series), DC-22B: 160 A at 220 V DC (3 poles in series) |
Complementary 21
| [Iq] Breaking capacity with fuses (kA RMS) | 80 kA at 415 V (AC), 80 kA at 500 V (AC), 25 kA at 690 V (AC) |
|---|---|
| [Icw] rated short-time withstand current | 5 kA for 1 s |
| [Icm] Rated short-circuit making capacity | 7.65 kA at 690 V |
| Rated duty | Uninterrupted |
| Control type | Fuse carriers handle |
| Provision for padlocking | Lead seal |
| Mounting position | Vertical, Horizontal |
| Mounting mode | Fixed |
| Mounting support | Busbars |
| Mounting location | Side by side |
| Contact operation | Single-break |
| Mechanical durability | 1600 cycles |
| Electrical durability | AC-21B: 200 cycles 690 V AC 50/60 Hz, AC-22B: 200 cycles 500 V AC 50/60 Hz, AC-23B: 200 cycles 415 V AC 50/60 Hz |
| Connections - terminals | M10 terminals |
| Tightening torque | 6 N.m for terminal |
| Width | 106 mm |
| Height | 206 mm |
| Depth | 80 mm |
| Net weight | 0.6 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC, EAC |
Environment 6
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP3x front face: conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 71 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV480803 |
|---|---|
| Type designation | ISFT160 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.5 cm |
| Package 1 Width | 15.5 cm |
| Package 1 Length | 24.5 cm |
| Package 1 Weight | 1.026 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11.324 kg |
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
