Part number
LV480752
Model no
ISFT100N
$103.73 On request Dispatch — · From TürkiyeGet a Quote

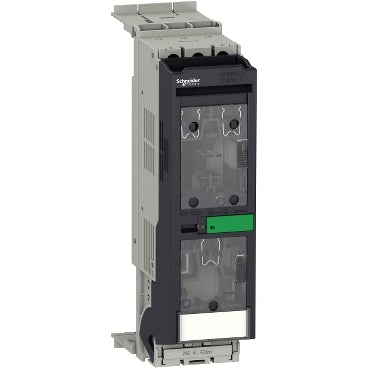

Schneider Electric LV480752 Fupact ISFT100N 3P 100 A NH000 Fuse Switch Disconnector

ISFT100N 3P 100 A fuse-switch disconnector, NH000, 60 mm busbar, downstream.

Rated current
100 A
Rated operational voltage
690 V AC
Poles
3P
Description

About the ISFT100N

The Schneider Electric LV480752 is a three-pole Fupact ISFT100N fuse-switch disconnector rated 100 A at 690 V AC for AC-21B duty, sized for NH000 fuse links and built for 60 mm busbar, downstream mounting with cable connectors, downstream only, 2.5–50 mm². It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 3.6 kA for 1 s short-time withstand rating.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The LV480752 is a fixed, non-switchable ISFT100N disconnector rated 100 A, sized for NH000 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the 60 mm busbar, downstream version over the other ISFT100N mounting variants in this range when it matches the busbar or cable connection already used in the panel.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT ISFT
Device short name ISFT100N
Product or component type Fuse-switch disconnector
Device application Equipment protection, monitoring and control, Distribution
Poles description 3P
Number of fuse carriers 3
Fuse type DIN
Fuse size NH000
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break Yes
Contact position indicator Yes
[Ith] conventional free air thermal current 100 A ( 40 °C ) power dissipation per fuse: 9 W
[Ithe] conventional enclosed thermal current 100 A at 40 °C, Power dissipation per fuse: 9 W
Maximum power dissipation per pole 11 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 440 V DC, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20
[Ui] rated insulation voltage 1000 V AC 50/60 Hz, 1000 V DC
[Uimp] rated impulse withstand voltage 6 kV
[Ie] rated operational current AC-21B: 100 A at 220/240 V AC 50/60 Hz, AC-21B: 100 A at 380/415 V AC 50/60 Hz, AC-21B: 100 A at 440/480 V AC 50/60 Hz, AC-21B: 100 A at 500 V AC 50/60 Hz, AC-21B: 100 A at 660/690 V AC 50/60 Hz, AC-22B: 100 A at 220/240 V AC 50/60 Hz, AC-22B: 100 A at 380/415 V AC 50/60 Hz, AC-22B: 100 A at 440/480 V AC 50/60 Hz, AC-22B: 100 A at 500 V AC 50/60 Hz, DC-21B: 100 A at 220 V DC (3 poles in series), DC-21B: 100 A at 440 V DC (3 poles in series), DC-22B: 100 A at 220 V DC (3 poles in series), DC-22B: 100 A at 440 V DC (3 poles in series)

Complementary 21

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 80 kA at 500 V (AC), 25 kA at 690 V (AC)
[Icw] rated short-time withstand current 3.6 kA for 1 s
[Icm] Rated short-circuit making capacity 5.2 kA at 690 V
Rated duty Uninterrupted
Control type Fuse carriers handle
Provision for padlocking Lead seal
Mounting position Vertical, Horizontal
cable entry Bottom
Mounting support Backplate, Busbars, DIN rail with accessory
Mounting location Side by side
Contact operation Single-break
Mechanical durability 2000 cycles
Electrical durability AC-21B: 300 cycles 690 V AC 50/60 Hz, AC-22B: 300 cycles 500 V AC 50/60 Hz, AC-23B: 300 cycles 415 V AC 50/60 Hz
Connections - terminals Cable connectors downstream 2.5…50 mm²
Tightening torque 4.5 N.m for terminal
Width 53 mm
Height 216 mm
Depth 80 mm
Net weight 0.54 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 6

Electrical shock protection class Class II front face
IP degree of protection IP3x front face: conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -50…85 °C
Show all 70 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV480752
Type designation ISFT100N
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 14.000 cm
Package 1 Length 23.500 cm
Package 1 Weight 631.600 g
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.979 kg
Shipping weight 0.54 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV480752

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3
Quick answers

Questions about the ISFT100N

What is the rated current of ISFT100N?

The rated current of ISFT100N is 100 A.

Which supply voltage is ISFT100N rated for?

The rated operational voltage of ISFT100N is 690 V AC.

What is the HS code of ISFT100N for customs?

The tariff (HS) code on file for ISFT100N is 853610.

Where does ISFT100N ship from, and how fast?

ISFT100N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
