- Part number
- LV480751
- Model no
- ISFT100N
Description
About the ISFT100N
About the ISFT100N

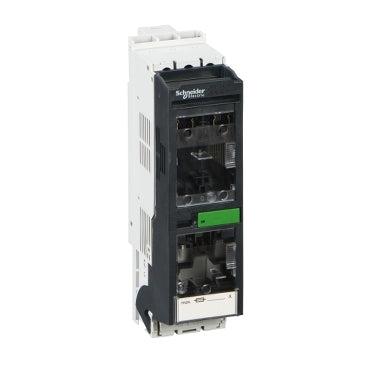

The Schneider Electric LV480751 is a three-pole Fupact ISFT100N fuse-switch disconnector rated 100 A at 690 V AC for AC-21B duty, sized for NH000 fuse links and built for 60 mm busbar, upstream mounting with cable connectors, upstream only, 2.5–50 mm². It carries a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses and a 3.6 kA for 1 s short-time withstand rating.
Certifications & Standards
- CE
- CCC
- EAC
- EN/IEC 60947-1
- EN/IEC 60947-3
Selection Notes
The LV480751 is a fixed, non-switchable ISFT100N disconnector rated 100 A, sized for NH000 fuse links and a 80 kA at 415 V AC, 80 kA at 500 V AC, 25 kA at 690 V AC breaking capacity with fuses installed. Pick the 60 mm busbar, upstream version over the other ISFT100N mounting variants in this range when it matches the busbar or cable connection already used in the panel.
Specification
Full specification
Main 19
| Range | FuPacT |
|---|---|
| Product name | FuPacT ISFT |
| Device short name | ISFT100N |
| Product or component type | Fuse-switch disconnector |
| Device application | Distribution, Equipment protection, monitoring and control |
| Poles description | 3P |
| Number of fuse carriers | 3 |
| Fuse type | DIN |
| Fuse size | NH000 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| Visible break | Yes |
| Contact position indicator | Yes |
| [Ith] conventional free air thermal current | 100 A ( 40 °C ) power dissipation per fuse: 9 W |
| [Ithe] conventional enclosed thermal current | 100 A at 40 °C, Power dissipation per fuse: 9 W |
| Maximum power dissipation per pole | 11 W |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz, 440 V DC, 800 V AC 50/60 Hz AC-20, 800 V DC DC-20 |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz, 1000 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ie] rated operational current | AC-21B: 100 A at 220/240 V AC 50/60 Hz, AC-21B: 100 A at 380/415 V AC 50/60 Hz, AC-21B: 100 A at 440/480 V AC 50/60 Hz, AC-21B: 100 A at 500 V AC 50/60 Hz, AC-21B: 100 A at 660/690 V AC 50/60 Hz, AC-22B: 100 A at 220/240 V AC 50/60 Hz, AC-22B: 100 A at 380/415 V AC 50/60 Hz, AC-22B: 100 A at 440/480 V AC 50/60 Hz, AC-22B: 100 A at 500 V AC 50/60 Hz, DC-21B: 100 A at 220 V DC (3 poles in series), DC-21B: 100 A at 440 V DC (3 poles in series), DC-22B: 100 A at 220 V DC (3 poles in series), DC-22B: 100 A at 440 V DC (3 poles in series) |
Complementary 21
| [Iq] Breaking capacity with fuses (kA RMS) | 80 kA at 415 V (AC), 80 kA at 500 V (AC), 25 kA at 690 V (AC) |
|---|---|
| [Icw] rated short-time withstand current | 3.6 kA for 1 s |
| [Icm] Rated short-circuit making capacity | 5.2 kA at 690 V |
| Rated duty | Uninterrupted |
| Control type | Fuse carriers handle |
| Provision for padlocking | Lead seal |
| Mounting position | Vertical, Horizontal |
| cable entry | Top |
| Mounting support | Backplate, Busbars, DIN rail with accessory |
| Mounting location | Side by side |
| Contact operation | Single-break |
| Mechanical durability | 2000 cycles |
| Electrical durability | AC-21B: 300 cycles 690 V AC 50/60 Hz, AC-22B: 300 cycles 500 V AC 50/60 Hz, AC-23B: 300 cycles 415 V AC 50/60 Hz |
| Connections - terminals | Cable connectors upstream 2.5…50 mm² |
| Tightening torque | 4.5 N.m for terminal |
| Width | 53 mm |
| Height | 216 mm |
| Depth | 80 mm |
| Net weight | 0.54 kg |
| Standards | EN/IEC 60947-1, EN/IEC 60947-3 |
| Product certifications | CE, CCC, EAC |
Environment 6
| Electrical shock protection class | Class II front face |
|---|---|
| IP degree of protection | IP3x front face: conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -50…85 °C |
Show all 70 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | LV480751 |
|---|---|
| Type designation | ISFT100N |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 14.0 cm |
| Package 1 Length | 24.0 cm |
| Package 1 Weight | 620.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.927 kg |
| Shipping weight | 0.54 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
