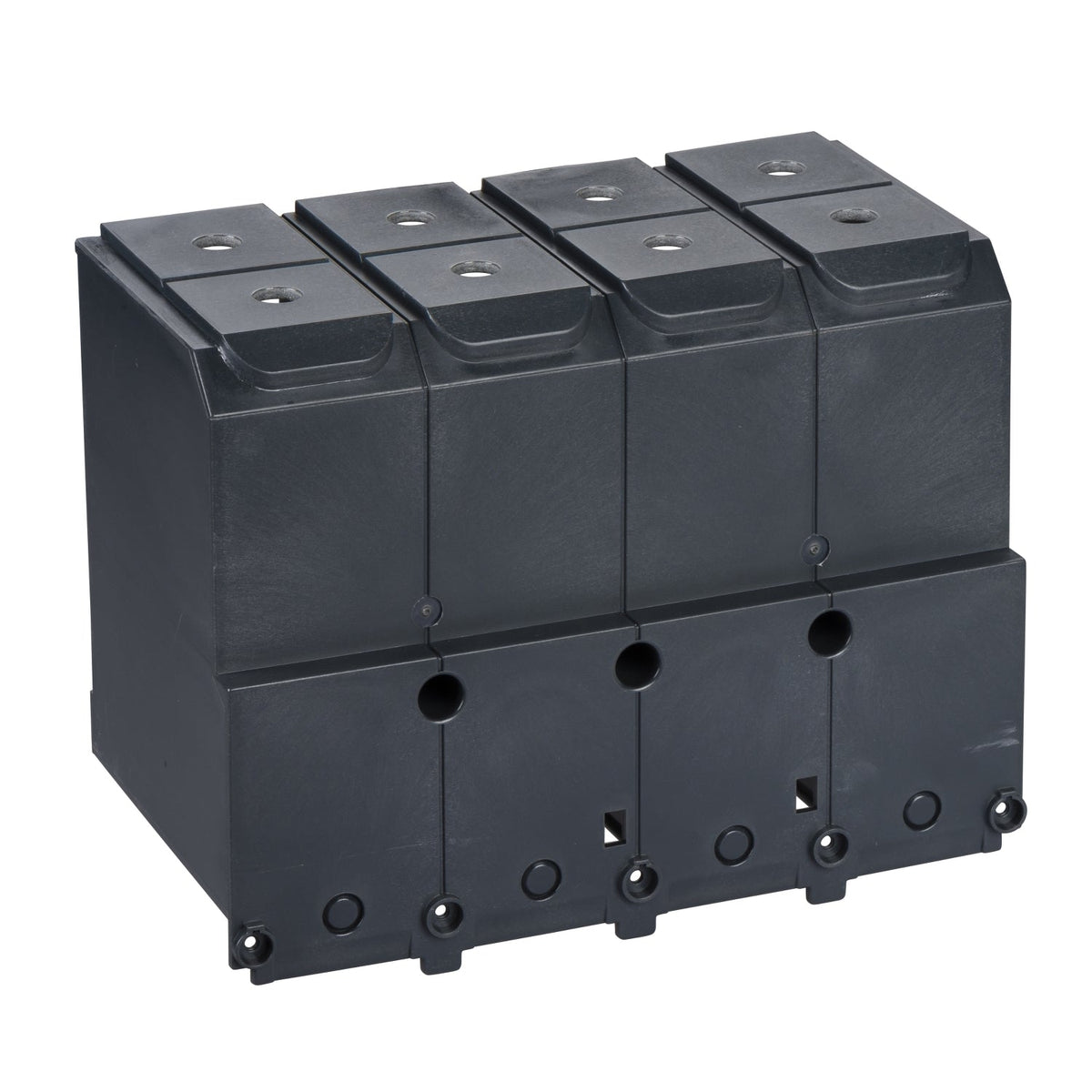

The Schneider Electric LV438346 is a 4-pole terminal shield for ComPacT NSX400 DC and NSX630 DC breakers, plus the INS and INV switch-disconnector ranges, wired with poles in series. It insulates the breaker's connection terminals to IP40 and is supplied as a single set.
Use the LV438346 on a 4-pole ComPacT NSX400-630 DC breaker or INV switch-disconnector wired in series; the 3-pole version for the same frame, LV438345, is the equivalent choice for a 3-pole series application.
| Product or component type | Terminal shield |
|---|---|
| Range compatibility | ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, ComPact ComPacT INS, ComPact Compact INV |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Output coupling | Series |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | LV438346 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.0 cm |
| Package 1 Width | 23.0 cm |
| Package 1 Length | 44.0 cm |
| Package 1 Weight | 884.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 3.418 kg |
| Shipping weight | 0.884 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
