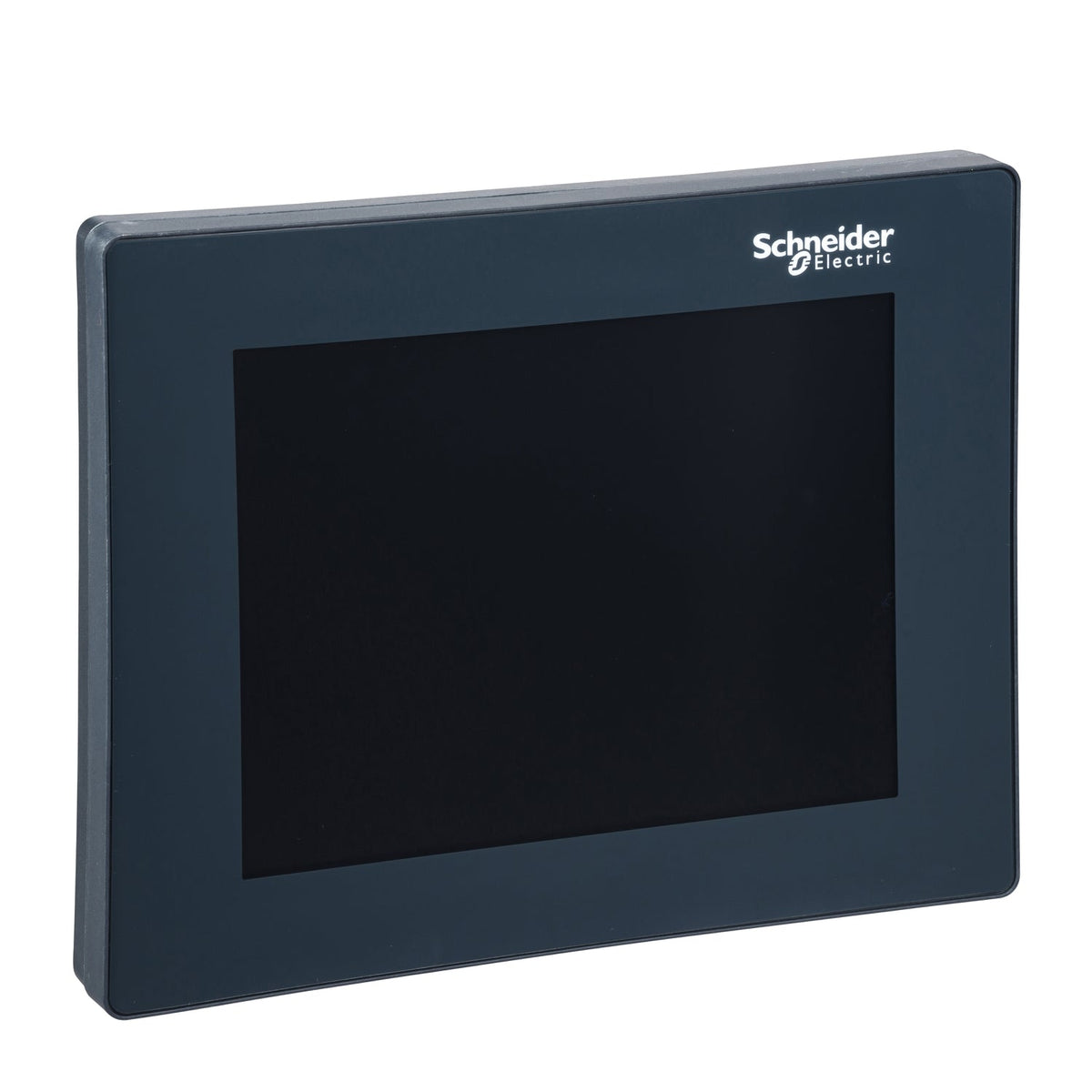

The Schneider Electric LV434128 is an Enerlin'X FDM128 Ethernet switchboard display module for Masterpact, ComPacT, PowerPact and PowerTag Link devices. Powered at 24 V DC, it collects data from up to 8 connected devices over Ethernet and shows measurements, alarms and operating data on a color touchscreen, IP65 on the front face.
Specify the FDM128 when a switchboard needs a local touchscreen overview of up to 8 Enerlin'X-connected breakers (and up to 160 PowerTag sensors) without opening a supervisory SCADA session; it mounts through a standard 22 mm door hole and updates firmware via EcoStruxure Power Commission software.
| Device short name | FDM128 |
|---|---|
| Product or Component Type | Display module |
| Accessory / separate part category | Display and signalling accessory |
| Range compatibility | MasterPact MTZ, MasterPact NW, MasterPact NT, Compact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact H, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact P, PowerPact PowerPact R, Acti 9 Acti9 Smartlink smart communication module |
| Product name | Enerlin'X FDM |
| Function of module | Remote control, View network, Metering, Display alarm |
| Control Type | Remote control |
|---|---|
| Mounting Mode | Flush mounting |
| Mounting Support | Surface mount with kit |
| Display Type | Active matrix colour TFT LCD with LED backlight |
| Display Resolution | 320 x 240 pixels QVGA |
| View angle horizontal x vertical | 70 x 80° |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Power Consumption in W | 6.8 W |
| Standards | CE, CSA, UL |
| Height | 5.08 in (129 mm) |
| Width | 6.4 in (163 mm) |
| Depth | 2.2 in (56.5 mm) |
| Accessory / separate part category | Spare part ComPact NS630b...1600, Spare part ComPact NS1600b...3200 |
| IP degree of protection | IP54, IP65 front face: |
|---|---|
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
| Part number | LV434128 |
|---|---|
| Type designation | FDM128 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480590191 |
| Warranty (in months) | 18 |
|---|
| Country of origin | CN |
|---|---|
| Shipping weight | 0.824 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for FDM128 is 853890.
The EAN (GTIN) of FDM128 is 3606480590191.
FDM128 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
