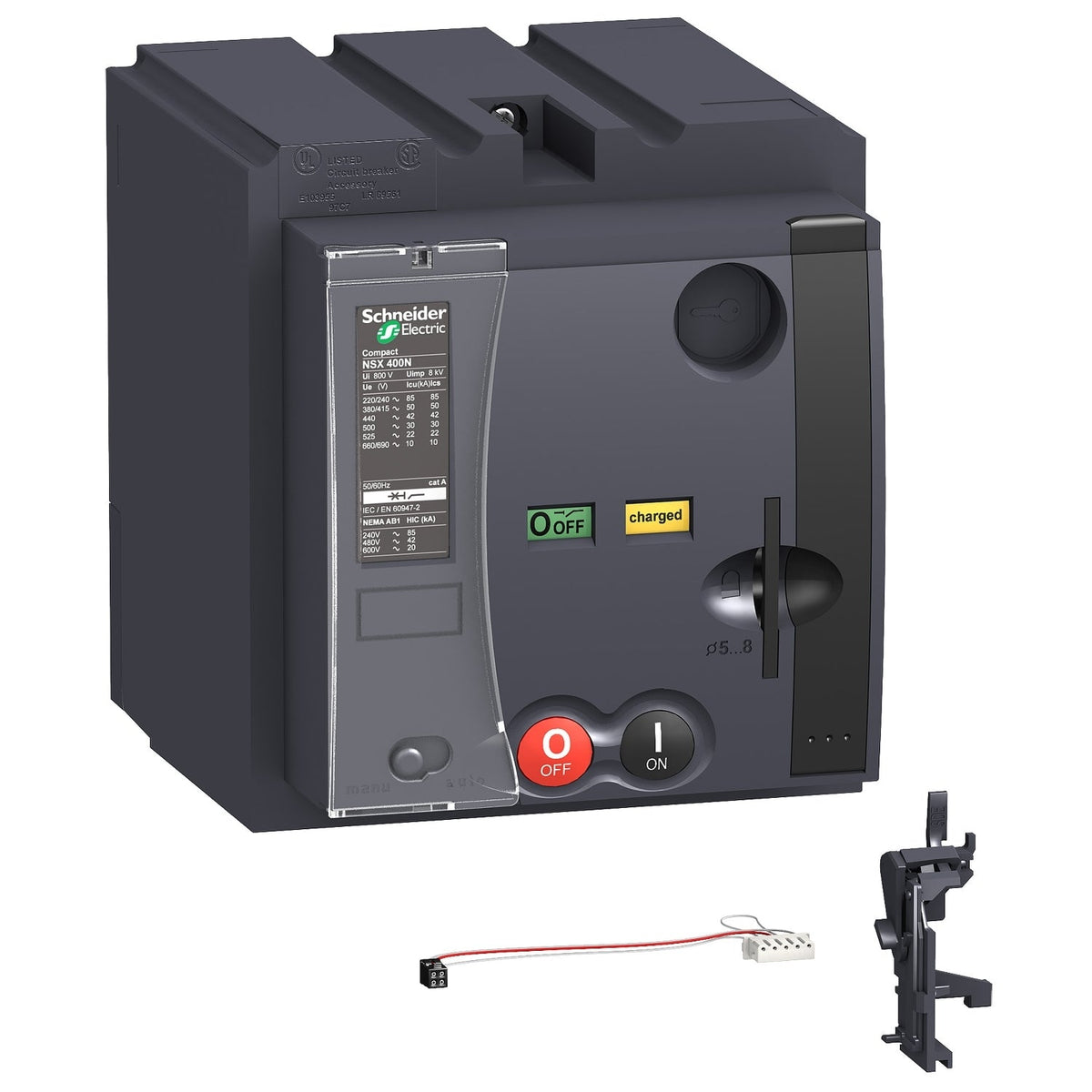

The Schneider Electric LV432652 is a communicating motor mechanism (MTc400/630) for fixed ComPacT NSX400, NSX630 and PowerPact L-frame circuit breakers, supplied at 220-240 V AC. It automates spring-charging and can receive external opening and closing orders. It responds to an open command in under 700 ms and a close command in under 80 ms, up to 4 operations per minute.
The communicating MTc400/630 adds remote open/close command over the standard MT400/630 mechanism (LV432642), so specify it when the breaker must accept external control signals rather than operate on local spring-charging alone.
| Device short name | MT400/630 |
|---|---|
| Product or Component Type | Motor mechanism |
| Device Application | Automatic spring charging |
| Range compatibility | ComPacT NSX400, ComPacT NSX630, ComPacT NSX400 DC, ComPacT NSX630 DC |
| Control Type | Communicating |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current | 630 A, 400 A |
| Control signal type | Maintained, Impulse |
|---|---|
| circuit breaker response time | < 700 ms open, < 80 ms closed |
| Maximum operating frequency | 4 per minute |
| Maximum power consumption in VA | 500 VA closing, 500 VA opening |
| Locking options description | 1 to 3 padlocks Ø 5 to Ø 8, Padlocking in OFF position |
| Warranty (in months) | 18 |
|---|
| Part number | LV432652 |
|---|---|
| Type designation | MT400/630 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480020261 |
| Country of origin | IT |
|---|---|
| Shipping weight | 3.092 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of MT400/630 is 220–240 V AC.
The tariff (HS) code on file for MT400/630 is 853890.
The EAN (GTIN) of MT400/630 is 3606480020261.
MT400/630 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
