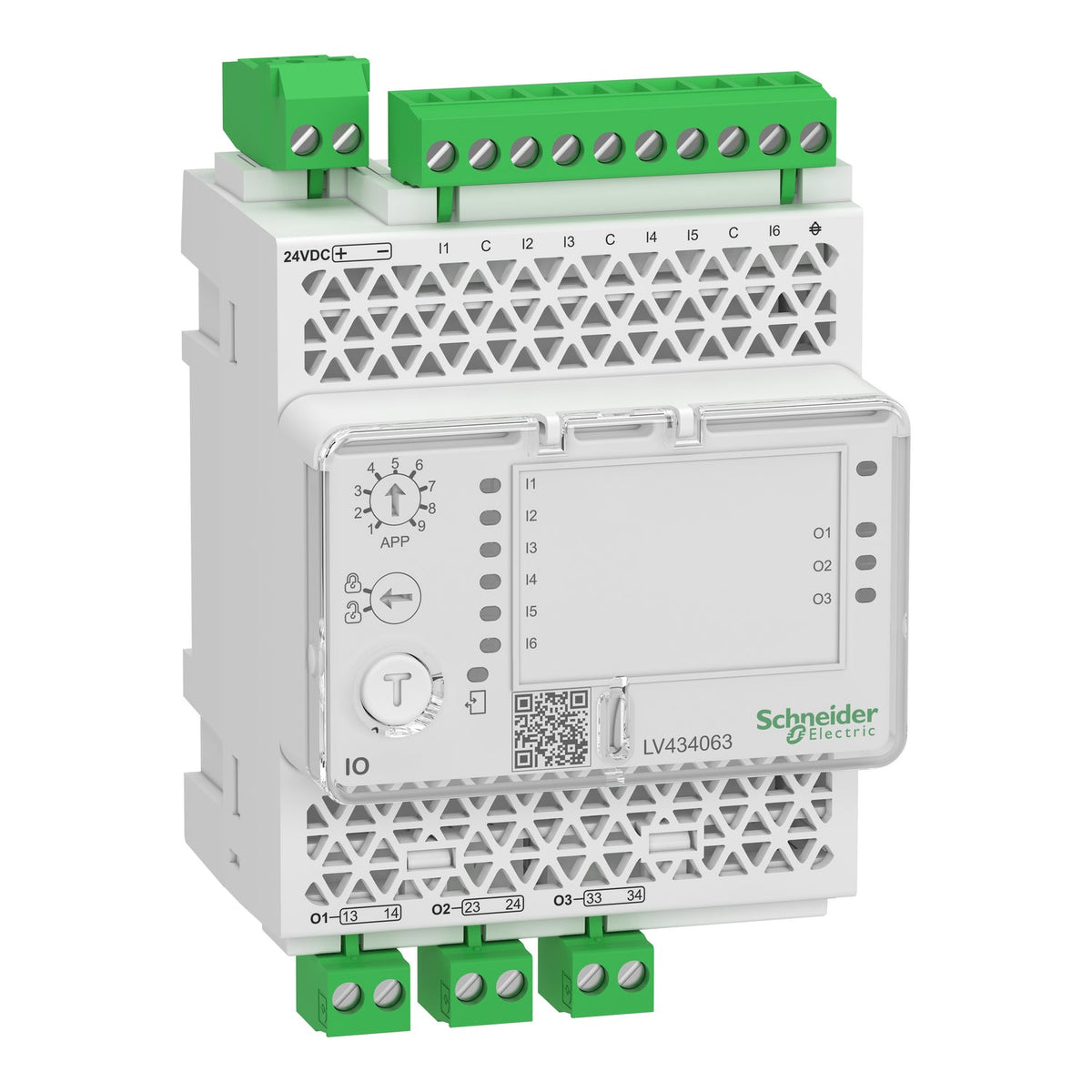

The Schneider Electric LV434063 is an Enerlin'X I/O application module for Masterpact, ComPacT and PowerPact circuit breakers. Powered at 24 V DC, it provides six digital inputs, three digital outputs and one analog input for circuit breaker control, motor control and energy monitoring. It mounts on a 35 mm DIN rail and connects to the breaker over two RJ45 Universal Logic Plug sockets.
Use the I/O module when a Masterpact, ComPacT or PowerPact breaker needs hardwired signals (digital inputs/outputs, one analog input) brought into the Enerlin'X/EcoStruxure Power architecture over its Universal Logic Plug link; configuration and firmware updates run through EcoStruxure Power Commission software.
| Device short name | I/O |
|---|---|
| Product or Component Type | I/O module |
| Range compatibility | Masterpact MasterPact MTZ, Masterpact MasterPact NT, Masterpact MasterPact NW, ComPact ComPact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact H, PowerPact PowerPact P, PowerPact PowerPact R |
| Product name | Enerlin'X IO |
| Communication network type | Universal Logic Plug 2 RJ45 connectors |
|---|---|
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Current Consumption | 165 mA |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2, Immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, Surge immunity test conforming to EN/IEC 61000-4-5 |
| Number of inputs | 6 digital, 1 analog |
| Input type | Digital state 1 19.8…25.2 V - DC - 6.1…8.8 mA, Digital state 0 0…19.8 V - DC - 0 mA |
| Number of Outputs | 3 digital |
| Output type | Digital 250 V - AC - 5 A |
| Cable length | 32.8 ft (10 m) |
| Mounting Mode | By clips |
| Mounting Support | 35 mm DIN rail |
| Control Type | By software |
| Time delay | 0...20 s |
| Vibration frequency | 5…8.4 Hz |
| Connections - Terminals | Screw terminal block |
| Product Certifications | FCC, GOST, CE, cULus |
| Standards | IEC 60947-6-2, UL 60950, IEC 60950, UL 508 |
| Depth | 2.8 in (70.6 mm) |
| Height | 4.6 in (116 mm) |
| Width | 2.8 in (71.7 mm) |
| Net Weight | 8.10 oz (229.5 g) |
| Relative humidity | 5…85 % |
|---|---|
| IP degree of protection | IP2X connectors:, IP4X front panel:, IP3x other parts: |
| Ambient Air Temperature for Operation | -4…158 °F (-20…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL |
| Shock resistance | 1000 m/s² |
| Part number | LV434063 |
|---|---|
| Type designation | I/O |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480631146 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.23 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for I/O is 853890.
The EAN (GTIN) of I/O is 3606480631146.
I/O ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
