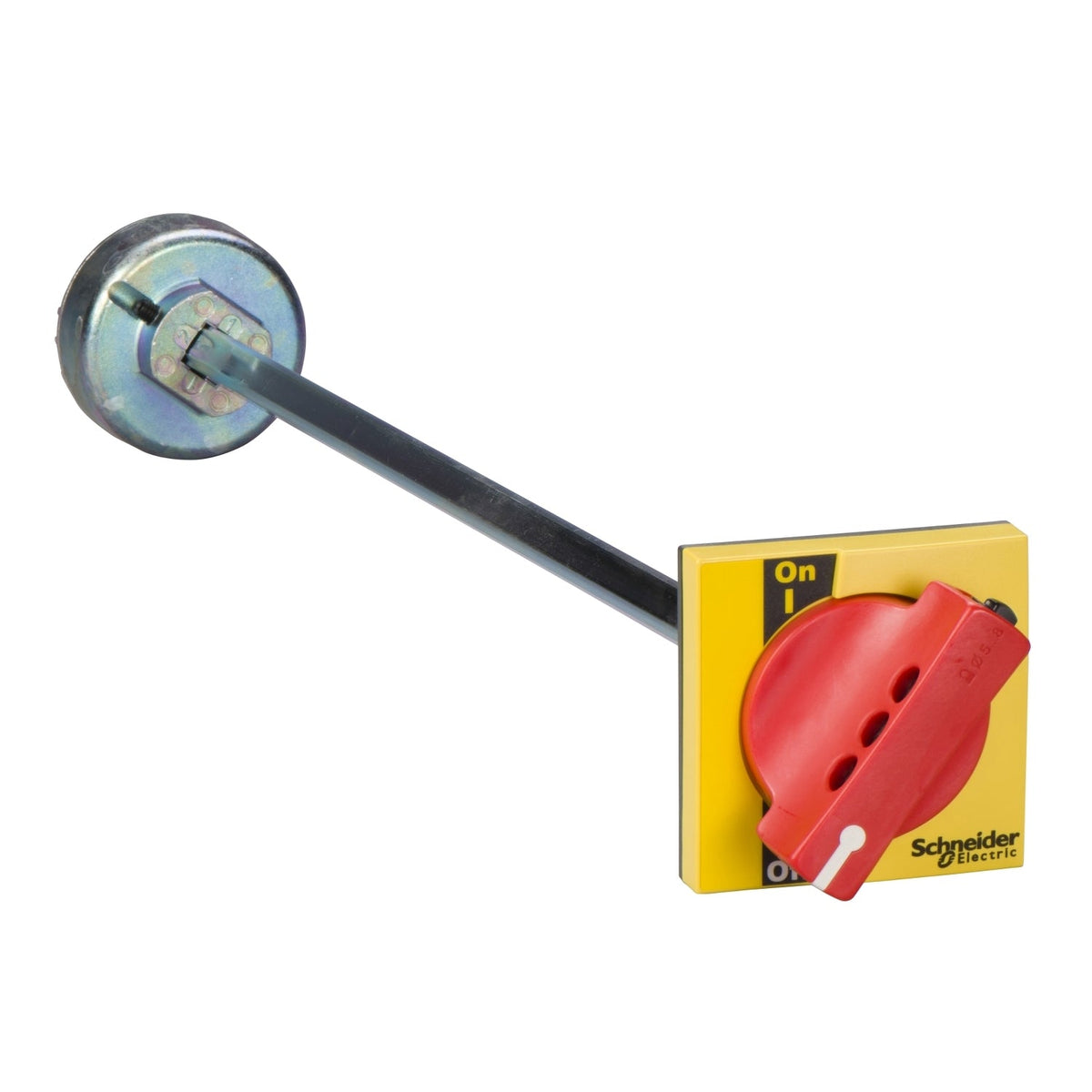

The Schneider Electric LV431051 is an extended red rotary handle on a yellow front plate for ComPacT INV100-250 and INS250 switch-disconnectors. The emergency-off colour scheme suits front-of-switchboard control, reaching IP55 and IK08 degrees of protection once installed. It can be padlocked in the OFF position with one to three padlocks, 5-8 mm shackle diameter, for lockout during maintenance.
Choose this red-on-yellow handle instead of the plain black LV431050 when the installation needs an emergency-off colour code at the front of the switchboard; both share the same IP55/IK08 extended-mount mechanics and the same 1 to 3 padlock OFF-position locking options, so the choice between them comes down to colour coding, not function.
| Range of product | INV100...250, INS250 |
|---|---|
| Product or component type | Rotary handle |
| Accessory / separate part type | Control accessories |
| Handle front plate colour | Yellow |
| Handle colour | Red |
| Rotary handle mounting style | Extended |
| Rotary handle mounting location | Front |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV431051 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 48.500 cm |
| Package 1 Weight | 879.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.806 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 93.672 kg |
| Shipping weight | 0.879 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV431051 is 853890.
LV431051 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
