Part number
LV438345
$325.74 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

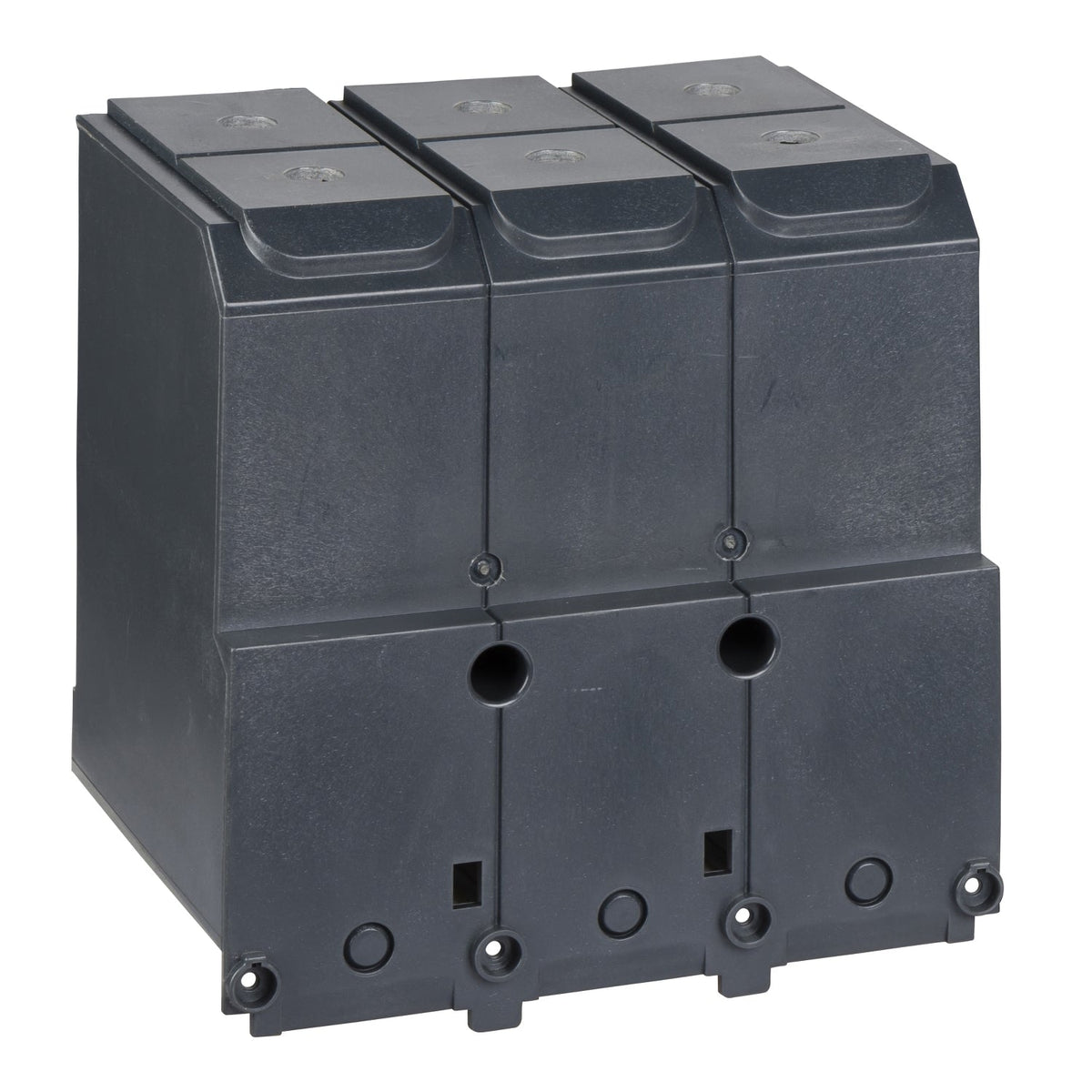

Schneider Electric LV438345 ComPacT NSX400-630 DC Terminal Shield 3P Series Circuit Breaker Accessory

ComPacT NSX400-630 DC terminal shield, 3P, series connection, IP40.

Product or component type
Terminal shield
Range compatibility
ComPact Compact NSX400 DC, ComPact Compact NSX630 DC
Accessory / separate part type
Insulation accessories
Poles description
3P
Description

About the LV438345

The Schneider Electric LV438345 is a 3-pole terminal shield for ComPacT NSX400 DC and NSX630 DC breakers wired with poles in series. It insulates the breaker's connection terminals to IP40 and is supplied as a single set.

Selection Notes

Use the LV438345 on a 3-pole ComPacT NSX400-630 DC breaker wired in series for higher DC voltage; the 4-pole equivalent for the same frame, LV438346, also covers the INS and INV switch-disconnector ranges.

Specification

Full specification

29 values · Last verified 30 Oct 2026

Main 4

Product or component type Terminal shield
Range compatibility ComPact Compact NSX400 DC, ComPact Compact NSX630 DC
Accessory / separate part type Insulation accessories
Poles description 3P

Complementary 2

Output coupling Series
IP degree of protection IP40 conforming to IEC 60529

Contractual warranty 1

Warranty (in months) 18
Show all 29 specifications ↓ Show less ↑22 more values in Identification, Logistics.

Identification 6

Part number LV438345
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 23.0 cm
Package 1 Length 44.0 cm
Package 1 Weight 994.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 3.748 kg
Shipping weight 0.994 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV438345

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV438345

What is the HS code of LV438345 for customs?

The tariff (HS) code on file for LV438345 is 853890.

Where does LV438345 ship from, and how fast?

LV438345 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
