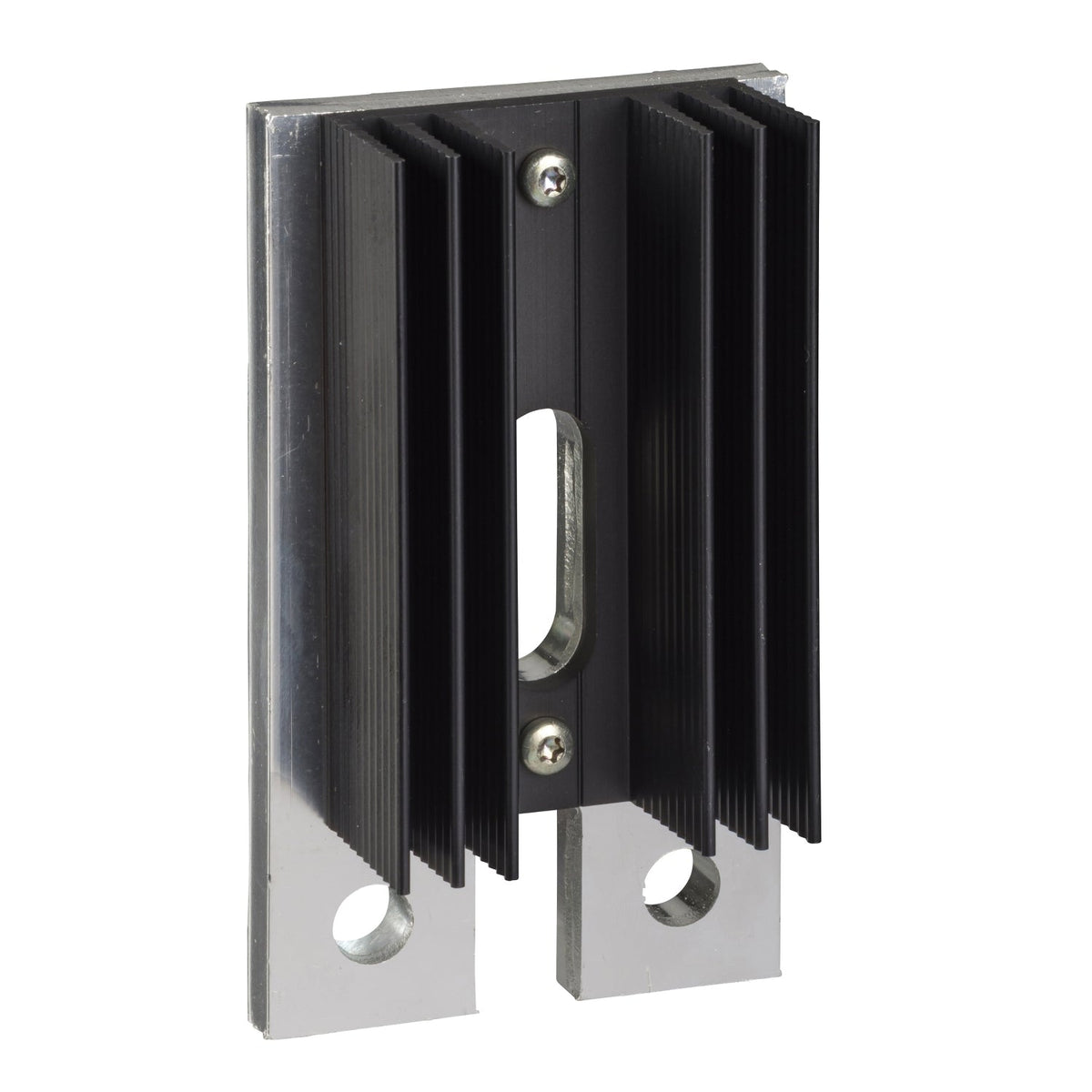

The Schneider Electric LV438338 is a 2-pole connection plate with integral heatsink for ComPacT NSX400 and NSX630 breakers, their DC and DC PV variants, and the INS320-630 and INV320-630 switch-disconnectors. It couples two poles in either a parallel or a series arrangement and ships as a single part.
The LV438338 is the 400-630 frame version of the NSX100-250 plate LV438328, covering the same parallel-or-series 2-pole coupling but sized for the larger NSX400-630 terminals and the INS/INV320-630 switch-disconnector range.
| Product or component type | Connection plate |
|---|---|
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact ComPact NSX400, ComPact ComPact NSX630, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, ComPact Compact NSX400 DC PV, ComPact Compact NSX630 DC PV, ComPact INS320, ComPact INS400, ComPact INS500, ComPact INS630, ComPact INV320, ComPact INV400, ComPact INV500, ComPact INV630 |
| Poles description | 2P |
| Quantity per set | 1 |
| Output coupling | Parallel, Serial |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV438338 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.300 cm |
| Package 1 Width | 9.200 cm |
| Package 1 Length | 16.300 cm |
| Package 1 Weight | 1.042 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.846 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 42.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 115.496 kg |
| Shipping weight | 1.042 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
