Part number
LV438337
$337.12 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

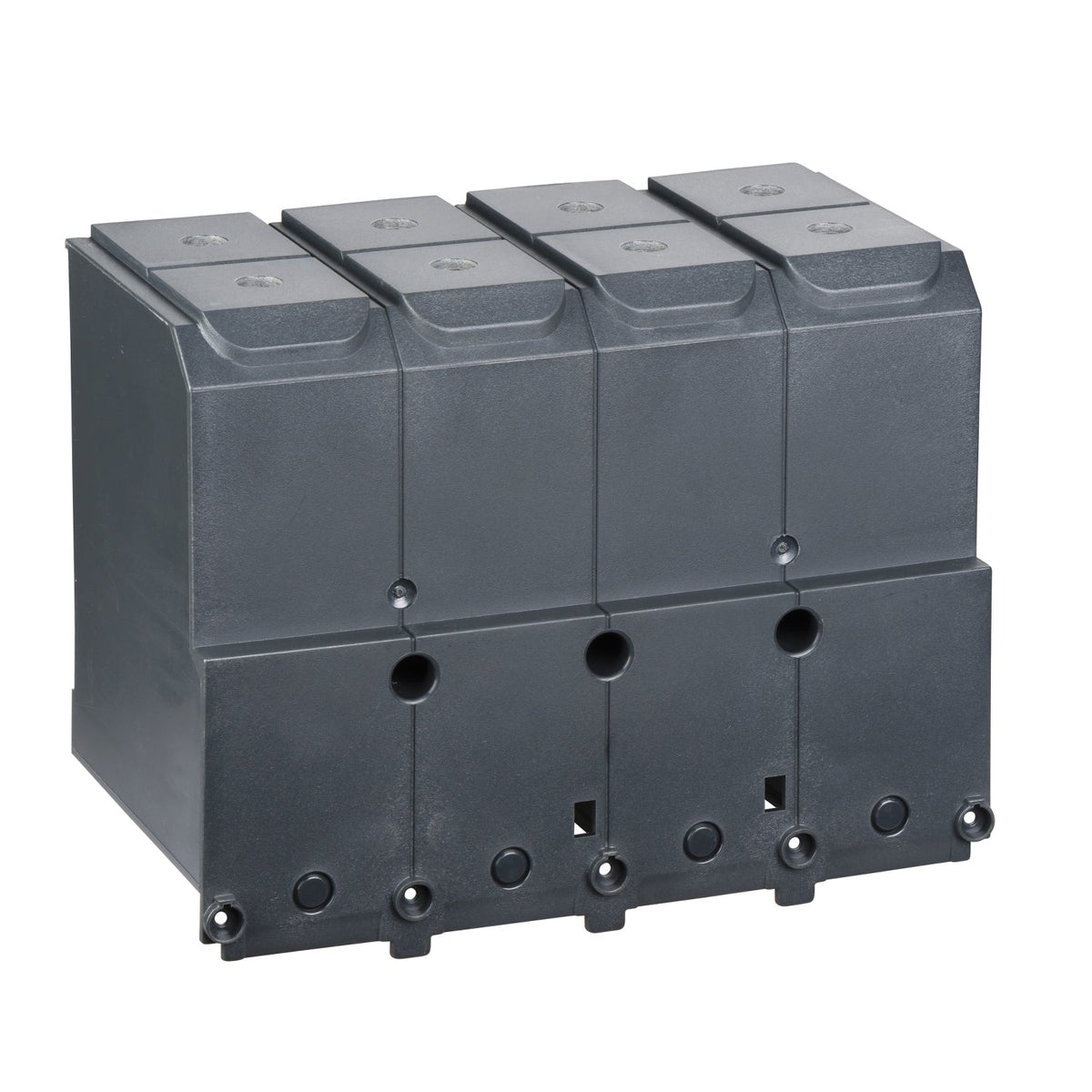

Schneider Electric LV438337 ComPacT NSX400-630 DC Terminal Shield 4P Parallel Circuit Breaker Accessory

ComPacT NSX400-630 DC PV terminal shield, 4P, parallel, upstream, IP40.

Product or component type
Terminal shield
Range compatibility
ComPacT ComPacT NSX DC PV NSX400 DC PV switch disconnector, ComPacT ComPacT NSX DC PV NSX630 DC PV switch disconnector, ComPact Compact NSX400 DC PV switch disconnector, ComPact Compact NSX630 DC PV switch disconnector, ComPact ComPacT INS switch disconnector, ComPact Compact INV switch disconnector
Accessory / separate part type
Insulation accessories
Poles description
4P
Quantity per set
1 set
Description

About the LV438337

The Schneider Electric LV438337 is a 4-pole terminal shield for ComPacT NSX400 DC PV and NSX630 DC PV switch-disconnectors, plus the INS and INV ranges, wired with poles in parallel. It insulates the upstream connection terminals to IP40 and is supplied as a single set.

Selection Notes

Use the LV438337 on the larger NSX400-630 DC PV switch-disconnector frame where poles are paralleled on the upstream face only; it is the 400-630 frame counterpart of the NSX100-250 DC shield LV438327, sized for the heavier terminals of the larger frame.

Specification

Full specification

31 values · Last verified 30 Oct 2026

Main 5

Product or component type Terminal shield
Range compatibility ComPacT ComPacT NSX DC PV NSX400 DC PV switch disconnector, ComPacT ComPacT NSX DC PV NSX630 DC PV switch disconnector, ComPact Compact NSX400 DC PV switch disconnector, ComPact Compact NSX630 DC PV switch disconnector, ComPact ComPacT INS switch disconnector, ComPact Compact INV switch disconnector
Accessory / separate part type Insulation accessories
Poles description 4P
Quantity per set 1 set

Complementary 3

Output coupling Parallel
Location of connection Upstream
IP degree of protection IP40 conforming to IEC 60529

Contractual warranty 1

Warranty (in months) 18
Show all 31 specifications ↓ Show less ↑22 more values in Identification, Logistics.

Identification 6

Part number LV438337
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 27.400 cm
Package 1 Length 44.500 cm
Package 1 Weight 868.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 3.267 kg
Shipping weight 0.868 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV438337

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV438337

What is the HS code of LV438337 for customs?

The tariff (HS) code on file for LV438337 is 853890.

Where does LV438337 ship from, and how fast?

LV438337 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
