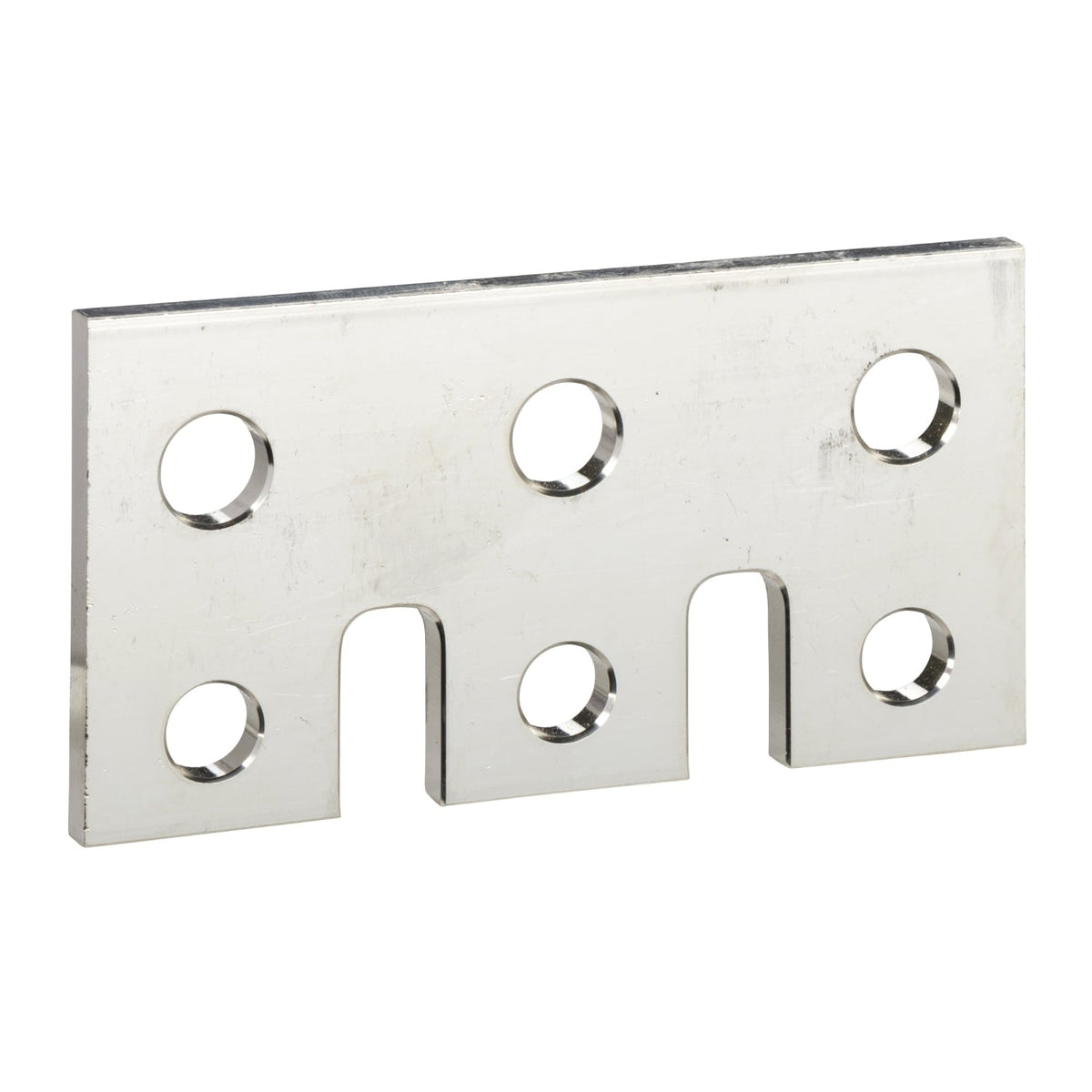

The Schneider Electric LV438329 is a 2-pole connection plate with integral heatsink for ComPacT NSX100 DC, NSX160 DC and NSX250 DC breakers, including the PV-rated and INS250/INV100-250 variants. It couples two poles in a parallel arrangement and is supplied as a set of 2 parts.
The LV438329 supplies two separate plates for a parallel pole coupling, where the single-piece LV438328 covers the equivalent parallel-or-series job with one part; both fit the same NSX100-250 DC frame range and carry the same heatsink design.
| Product or component type | Connection plate |
|---|---|
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, ComPact Compact NSX100 DC PV, ComPact Compact NSX160 DC PV, ComPact Compact NSX250 DC PV, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 2P |
| Quantity per set | Set of 2 |
| Output coupling | Parallel |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV438329 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 26.5 cm |
| Package 1 Weight | 623.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 12.947 kg |
| Shipping weight | 0.623 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
