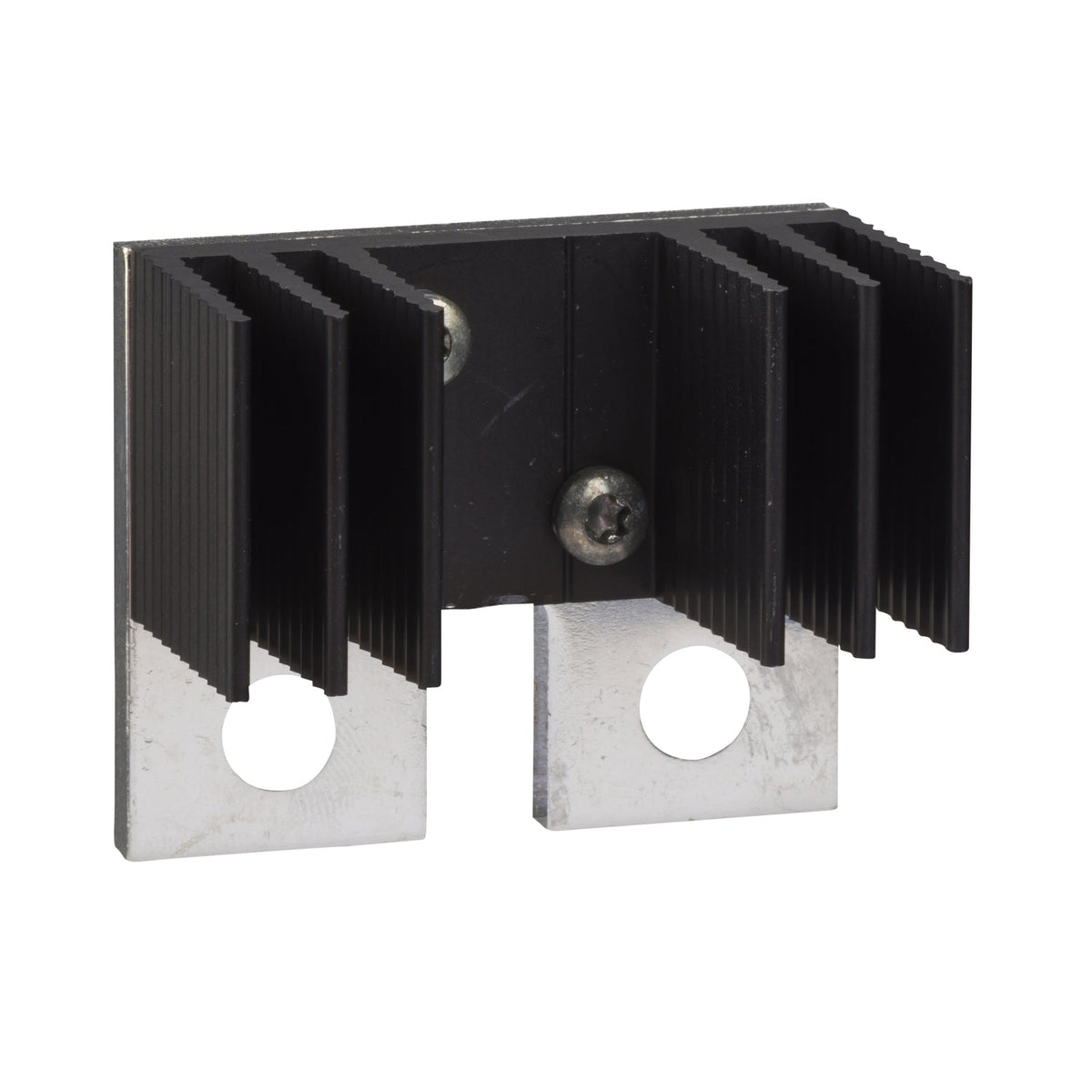

The Schneider Electric LV438328 is a 2-pole connection plate with integral heatsink for ComPacT NSX100 DC, NSX160 DC and NSX250 DC breakers, including the PV-rated and INS250/INV100-250 variants. It couples two poles in either a parallel or a series arrangement and ships as a single part.
The LV438328 is the single-part 2-pole plate; pick the set-of-2 LV438329 when both poles of a parallel pair need separate plates rather than one shared piece. The built-in heatsink helps dissipate heat at the pole-coupling joint on DC applications.
| Product or component type | Connection plate |
|---|---|
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, ComPact Compact NSX100 DC PV, ComPact Compact NSX160 DC PV, ComPact Compact NSX250 DC PV, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 2P |
| Quantity per set | 1 |
| Output coupling | Parallel, Serial |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV438328 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 279.900 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 17.500 kg |
| Shipping weight | 0.28 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV438328 is 853890.
LV438328 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
