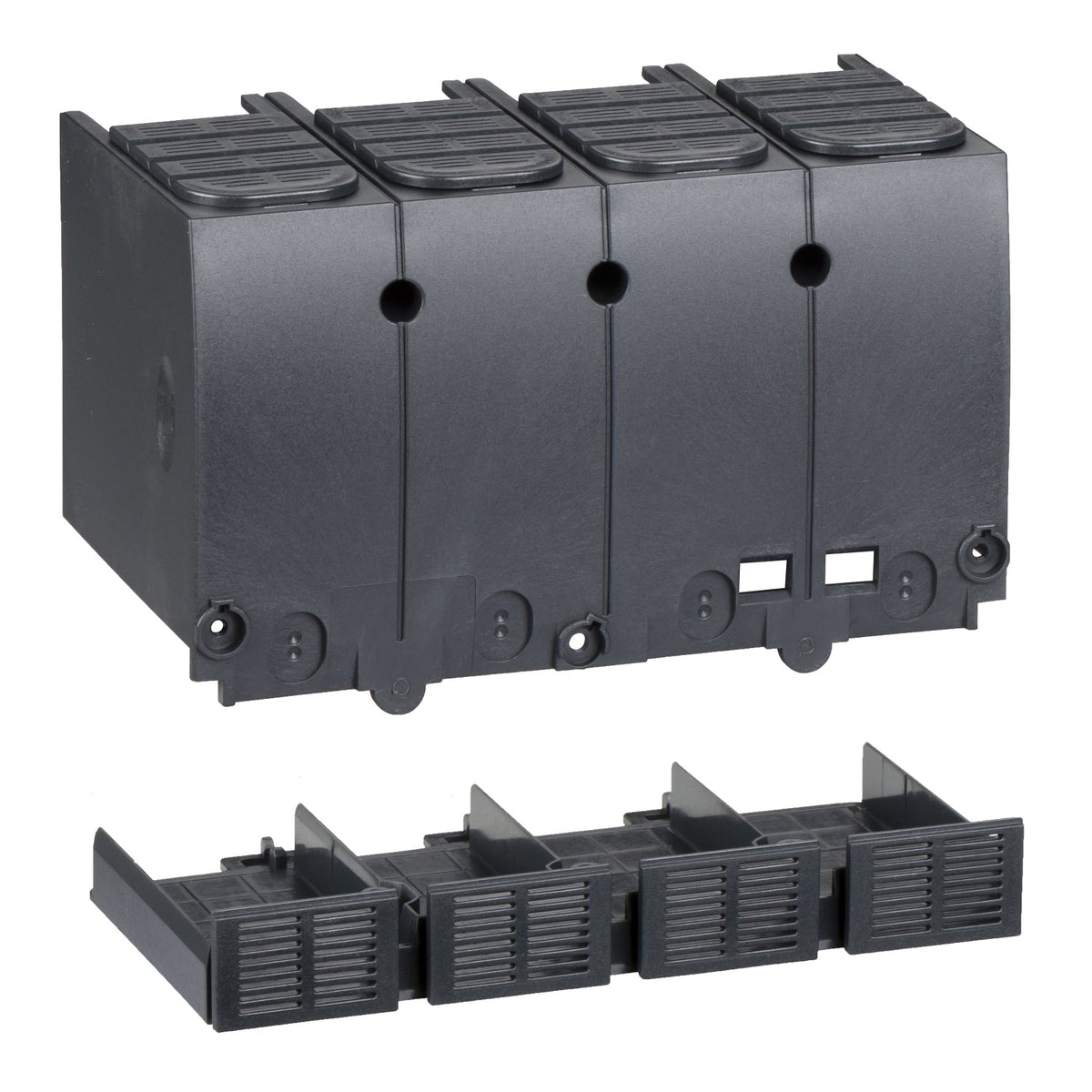

The Schneider Electric LV438326 is a 4-pole terminal shield for ComPacT NSX100 DC, NSX160 DC and NSX250 DC breakers, plus the INS250 and INV100-250 switch-disconnectors, wired with poles in series. It insulates the upstream and downstream connection terminals to IP40 and is supplied as a single set.
Use the LV438326 on a 4-pole ComPacT NSX100-250 DC breaker or INV100-250 switch-disconnector wired in series; its 3-pole counterpart, LV438325, covers the equivalent 3-pole series application on the same frame range.
| Product or component type | Terminal shield |
|---|---|
| Range compatibility | ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, ComPact INS250, ComPact Compact INV100...250 |
| Accessory / separate part type | Insulation accessories |
| Poles description | 4P |
| Quantity per set | 1 set |
| Output coupling | Series |
|---|---|
| Location of connection | Upstream, Downstream |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | LV438326 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 35.0 cm |
| Package 1 Weight | 369.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 4.087 kg |
| Shipping weight | 0.369 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
