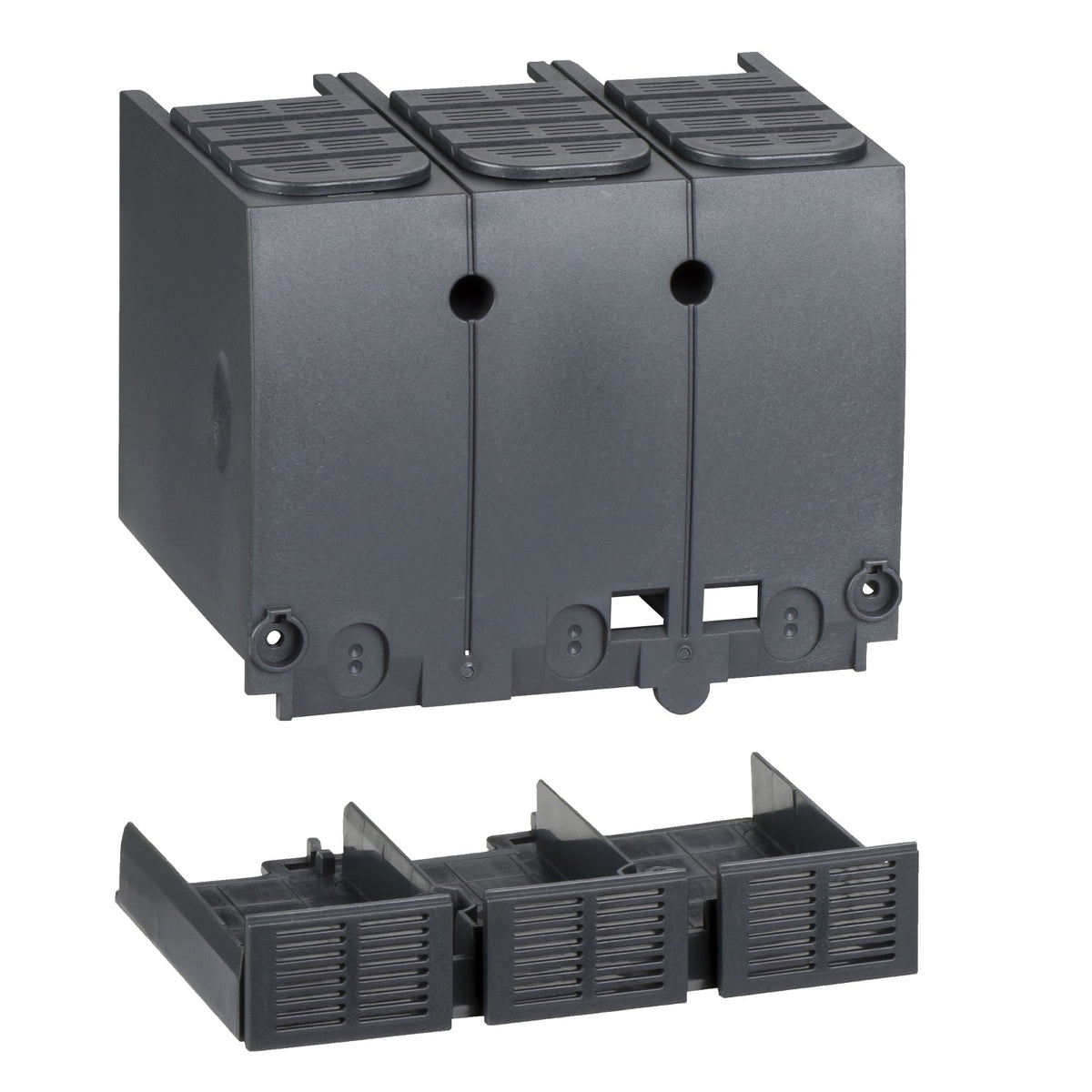

The Schneider Electric LV438325 is a 3-pole terminal shield for ComPacT NSX100 DC, NSX160 DC and NSX250 DC breakers wired with poles in series. It insulates the upstream and downstream connection terminals to IP40 and is supplied as a single set.
Use the LV438325 on a 3-pole ComPacT NSX100-250 DC breaker wired in series for higher DC voltage; the 4-pole version, LV438326, is for the equivalent 4-pole series application. It covers both the upstream and downstream terminal faces to the same IP40 level.
| Product or component type | Terminal shield |
|---|---|
| Range compatibility | ComPacT ComPacT NSX DC NSX100 DC, ComPacT ComPacT NSX DC NSX160 DC, ComPacT ComPacT NSX DC NSX250 DC, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC |
| Accessory / separate part type | Insulation accessories |
| Poles description | 3P |
| Quantity per set | 1 set |
| Output coupling | Series |
|---|---|
| Location of connection | Upstream, Downstream |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | LV438325 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 35.500 cm |
| Package 1 Weight | 356.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 3.160 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 28 |
| Package 3 Height | 50.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 23.968 kg |
| Shipping weight | 0.356 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
