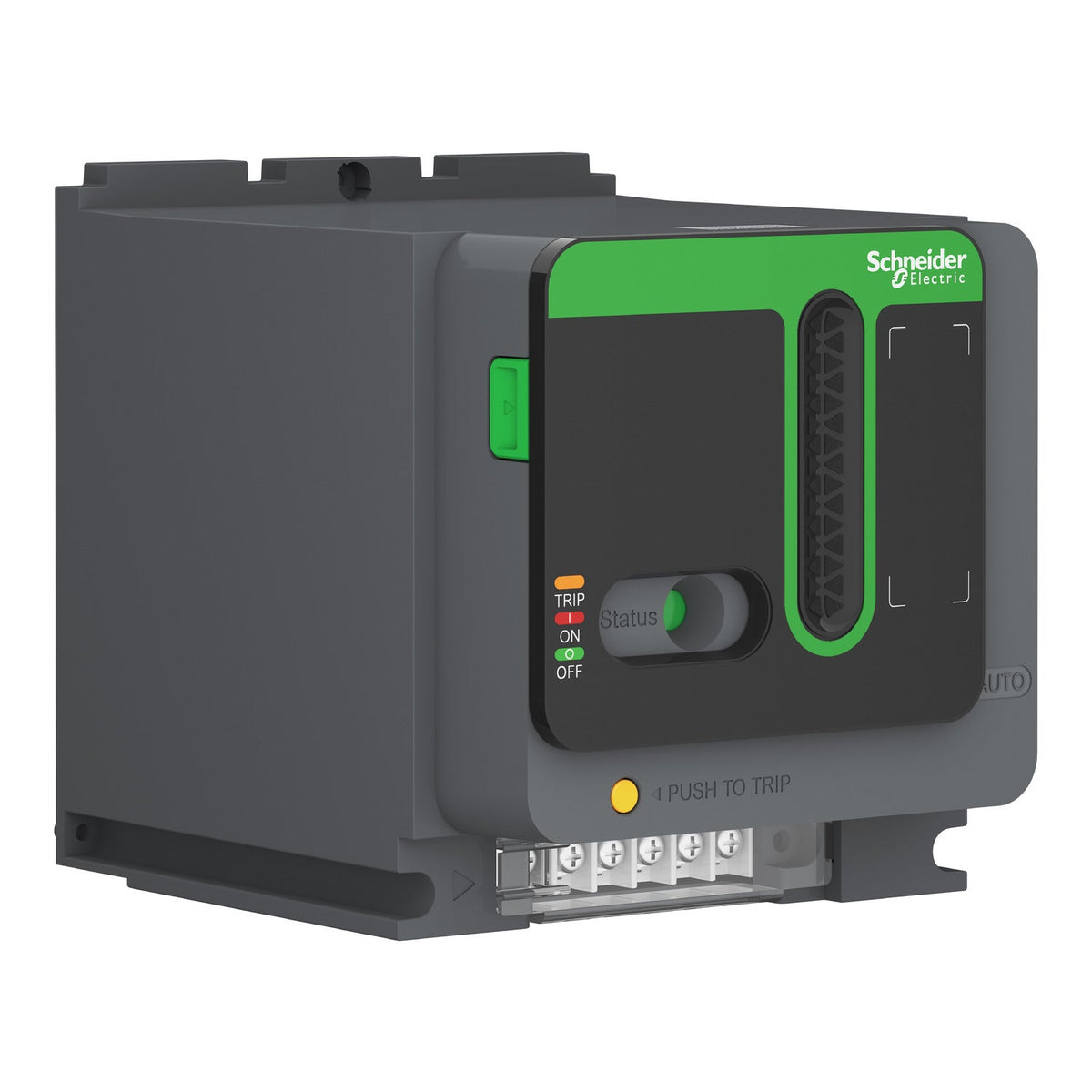

The Schneider Electric LV435010 is a motor mechanism module for EasyPact CVS400...630 circuit breakers, powering local or remote open/close operation from a 110-230 V AC (50/60 Hz) or 110-230 V DC supply. It accepts impulse and maintained control signals, includes a keylock and transparent cover, and carries an IK07 impact rating.
Select the LV435010 instead of the 400 V AC-only LV435005 when the control circuit supplies a universal 110-230 V AC/DC voltage rather than a dedicated 400 V AC source; both fit the CVS400-630 frame and share the 300 VA, 500 ms/1 s response rating.
| Range | EasyPact |
|---|---|
| Product name | EasyPact CVS |
| Product or component type | Motor mechanism |
| Device short name | motor mechanism module |
| Product compatibility | EasyPact CVS400...630 circuit-breaker |
| Control type | Local/remote control |
|---|---|
| Control signal type | Impulse and maintained |
| Supply voltage [Us] | 110...230 V AC 50/60 Hz, 110...230 V DC |
| Mounting mode | Fixed |
| Response time | <= 500 ms (opening), <= 1 s (closing) |
| Maximum operating frequency | <= 2 cycles per minute |
| Maximum power consumption in VA | 300 VA closing, 300 VA opening |
| Electrical durability | 20000 cycles 110...230 V AC 50/60 Hz, 20000 cycles 110...230 V DC |
| Provided equipment | Keylock |
| Locking options description | Transparent cover |
| IK degree of protection | IK07 |
| IP degree of protection | IP20 |
|---|
| Part number | LV435010 |
|---|---|
| Type designation | motor mechanism module |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 2.923 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.389 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 129.096 kg |
| Shipping weight | 2.923 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of motor mechanism module is 110–230–DC V DC.
The tariff (HS) code on file for motor mechanism module is 853890.
motor mechanism module ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
