Part number
LV435005
Model no
motor mechanism module
$722.95 On request Dispatch — · From TürkiyeGet a Quote
Schneider EasyPact CVS

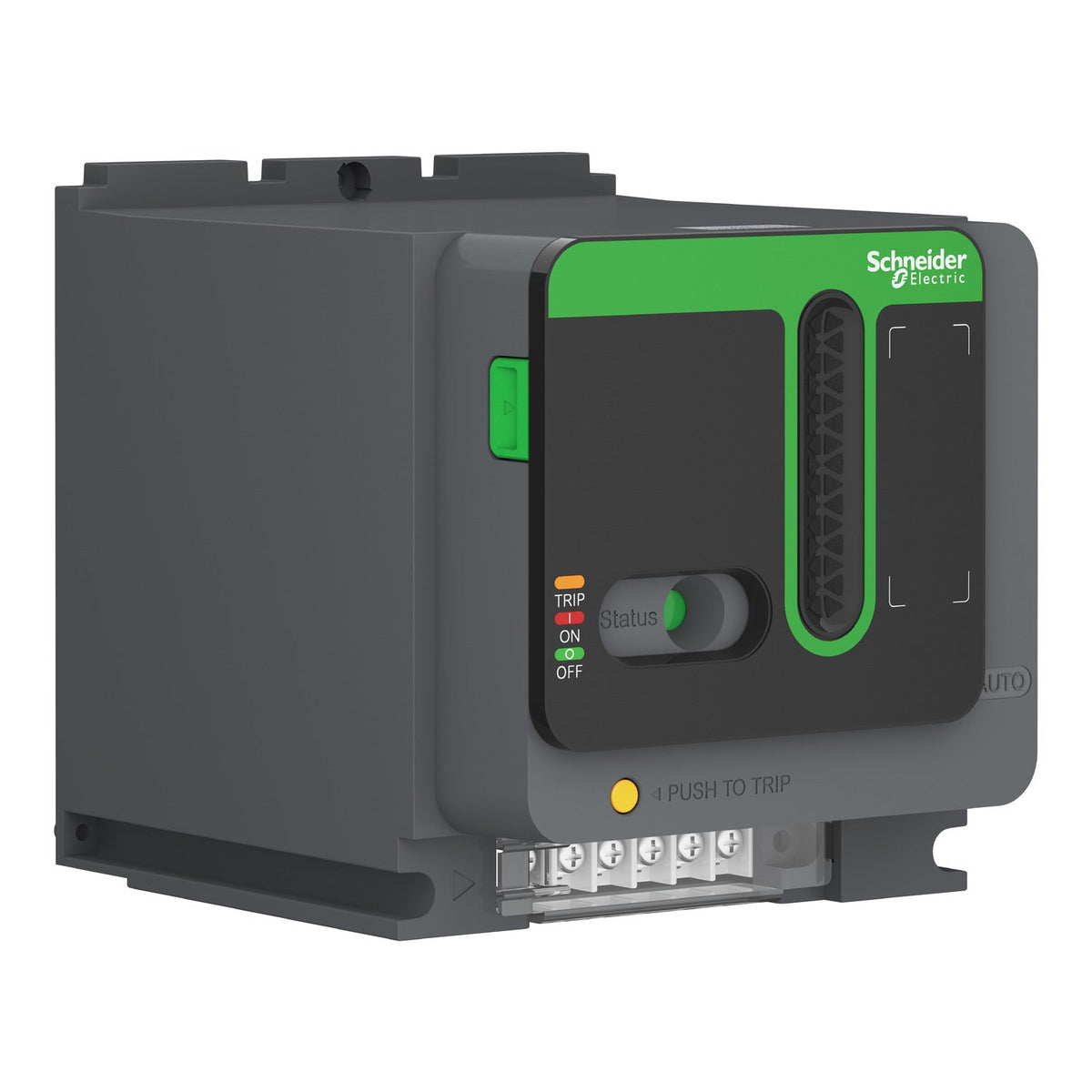

Schneider Electric LV435005 EasyPact CVS400-630 Motor Mechanism 400 V AC Circuit Breaker Accessory

EasyPact CVS400-630 motor mechanism, 400 V AC, keylock, local/remote control, IK07.

Rated operational voltage
400 V AC
Description

About the motor mechanism module

The Schneider Electric LV435005 is a motor mechanism module for EasyPact CVS400...630 circuit breakers, powering local or remote open/close operation from a 400 V AC, 50/60 Hz supply. It accepts impulse and maintained control signals, includes a keylock and transparent cover, and carries an IK07 impact rating.

Selection Notes

The LV435005 is the 400-630 A frame counterpart of the LV435002, carrying the higher 300 VA power draw and slower 500 ms/1 s response time that the larger CVS400-630 breaker mechanism needs. Use it when the control circuit runs on 400 V AC rather than the universal 110-230 V AC/DC supply of the LV435010.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 5

Range EasyPact
Product name EasyPact CVS
Product or component type Motor mechanism
Device short name motor mechanism module
Product compatibility EasyPact CVS400...630 circuit-breaker

Complementary 11

Control type Local/remote control
Control signal type Impulse and maintained
Supply voltage [Us] 400 V AC 50/60 Hz
Mounting mode Fixed
Response time <= 500 ms (opening), <= 1 s (closing)
Maximum operating frequency <= 2 cycles per minute
Maximum power consumption in VA 300 VA closing, 300 VA opening
Electrical durability 20000 cycles 400 V AC 50/60 Hz
Provided equipment Keylock
Locking options description Transparent cover
IK degree of protection IK07

Contractual warranty 1

Warranty (in months) 18
Show all 46 specifications ↓ Show less ↑29 more values in Identification, Logistics.

Identification 7

Part number LV435005
Type designation motor mechanism module
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.200 cm
Package 1 Width 19.800 cm
Package 1 Length 22.500 cm
Package 1 Weight 2.935 kg
Unit Type of Package 2 S04
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.452 kg
Unit Type of Package 3 P12
Number of Units in Package 3 36
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 125.424 kg
Shipping weight 2.935 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV435005

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the motor mechanism module

Which supply voltage is motor mechanism module rated for?

The rated operational voltage of motor mechanism module is 400 V AC.

What is the HS code of motor mechanism module for customs?

The tariff (HS) code on file for motor mechanism module is 853890.

Where does motor mechanism module ship from, and how fast?

motor mechanism module ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
