Part number
LV435002
Model no
motor mechanism module
$280.20 On request Dispatch — · From TürkiyeGet a Quote
Schneider EasyPact CVS

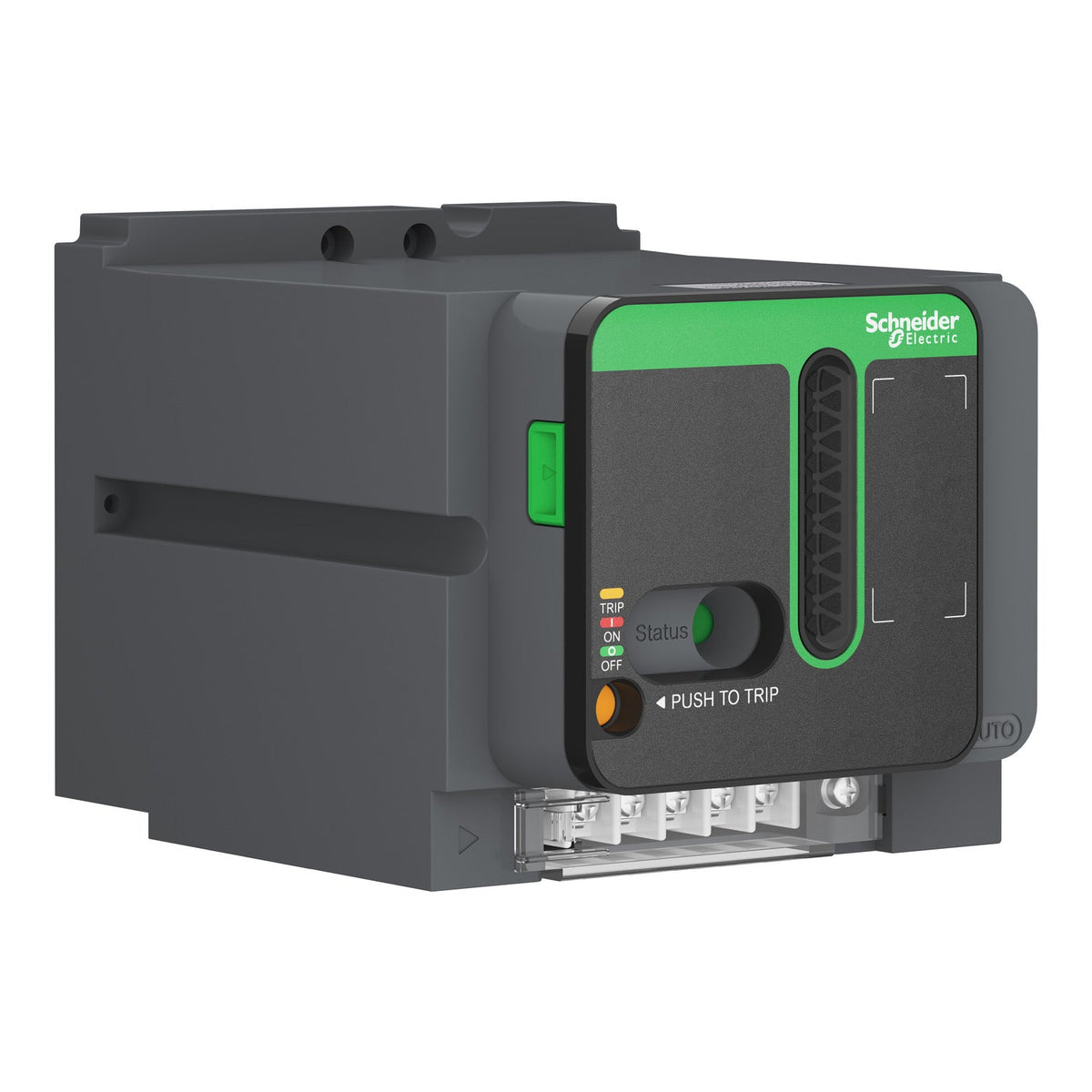

Schneider Electric LV435002 EasyPact CVS100-250 Motor Mechanism 400 V AC Circuit Breaker Accessory

EasyPact CVS100-250 motor mechanism, 400 V AC, keylock, local/remote control, IK07.

Rated operational voltage
400 V AC
Description

About the motor mechanism module

The Schneider Electric LV435002 is a motor mechanism module for EasyPact CVS100...250 circuit breakers, powering local or remote open/close operation from a 400 V AC, 50/60 Hz supply. It accepts impulse and maintained control signals, includes a keylock and transparent cover, and carries an IK07 impact rating.

Selection Notes

Choose the LV435002 when the control circuit is a dedicated 400 V AC source rather than the universal 110-230 V AC/DC supply used by the LV435001; the keylock and transparent cover add local lockout on top of the same CVS100-250 fit and response time.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 5

Range EasyPact
Product name EasyPact CVS
Product or component type Motor mechanism
Device short name motor mechanism module
Product compatibility EasyPact CVS100...250 circuit-breaker

Complementary 11

Control type Local/remote control
Control signal type Impulse and maintained
Supply voltage [Us] 400 V AC 50/60 Hz
Mounting mode Fixed
Response time <= 350 ms (opening), <= 700 ms (closing)
Maximum operating frequency <= 3 cycles per minute
Maximum power consumption in VA 150 VA closing, 150 VA opening
Electrical durability 25000 cycles 400 V AC 50/60 Hz
Provided equipment Keylock
Locking options description Transparent cover
IK degree of protection IK07

Contractual warranty 1

Warranty (in months) 18
Show all 46 specifications ↓ Show less ↑29 more values in Identification, Logistics.

Identification 7

Part number LV435002
Type designation motor mechanism module
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.600 cm
Package 1 Width 16.000 cm
Package 1 Length 18.000 cm
Package 1 Weight 1.117 kg
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.586 kg
Unit Type of Package 3 P12
Number of Units in Package 3 64
Package 3 Height 72.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 88.688 kg
Shipping weight 1.117 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV435002

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the motor mechanism module

Which supply voltage is motor mechanism module rated for?

The rated operational voltage of motor mechanism module is 400 V AC.

What is the HS code of motor mechanism module for customs?

The tariff (HS) code on file for motor mechanism module is 853890.

Where does motor mechanism module ship from, and how fast?

motor mechanism module ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
