Part number
LV435001
Model no
motor mechanism module
$280.20 On request Dispatch — · From TürkiyeGet a Quote
Schneider EasyPact CVS

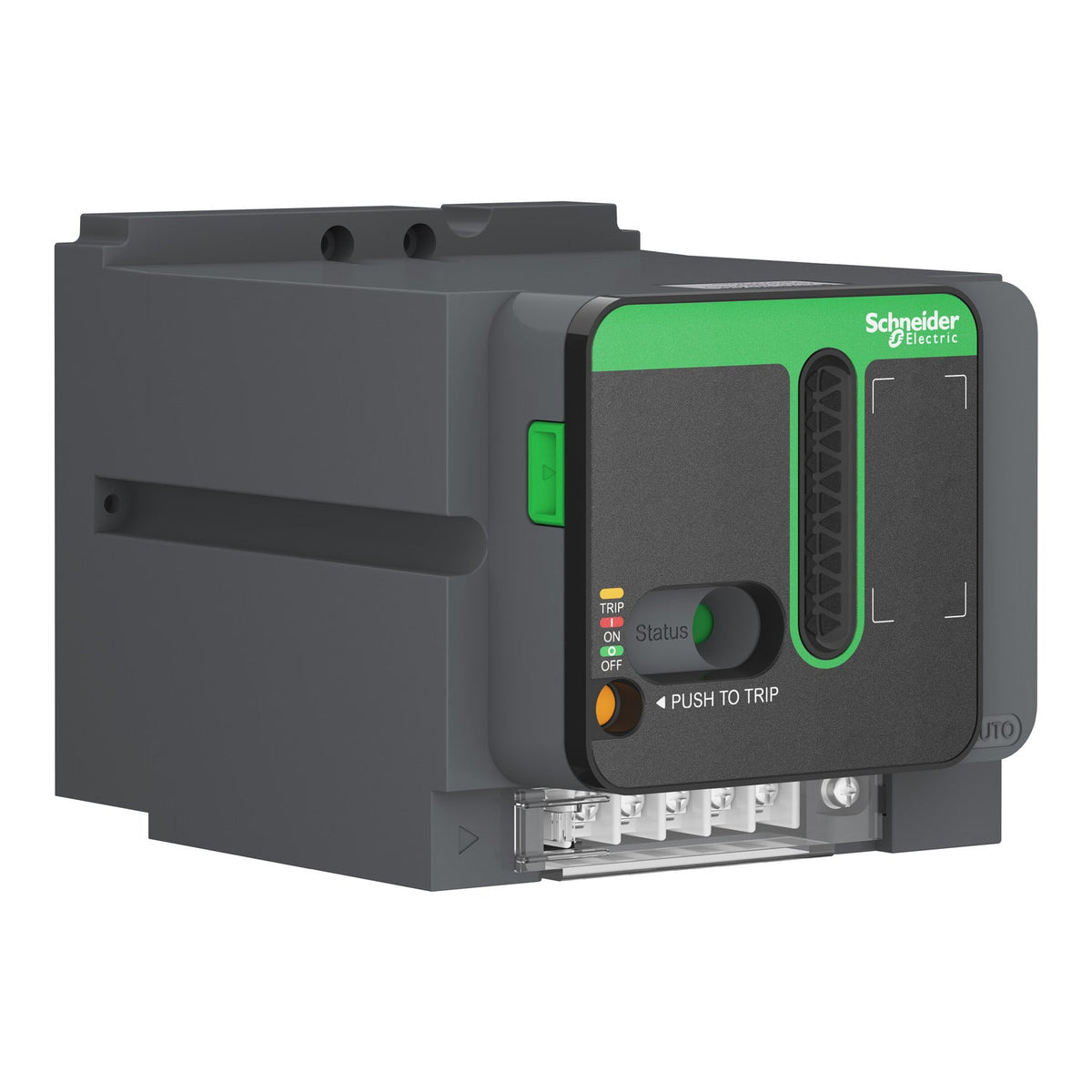

Schneider Electric LV435001 EasyPact CVS100-250 Motor Mechanism 110-230 V AC/DC Circuit Breaker Accessory

EasyPact CVS100-250 motor mechanism, 110-230 V AC/DC, local/remote control, IK07.

Rated operational voltage
110–230–DC V DC
Description

About the motor mechanism module

The Schneider Electric LV435001 is a motor mechanism module for EasyPact CVS100...250 circuit breakers, powering local or remote open/close operation from a 110-230 V AC (50/60 Hz) or 110-230 V DC supply. It accepts impulse and maintained control signals and carries an IK07 impact rating on the housing.

Selection Notes

Pick the LV435001 over the 400 V AC-only LV435002 when the switchboard's control circuit runs on a universal 110-230 V AC/DC supply rather than a dedicated 400 V AC source; both share the same CVS100-250 frame, impulse/maintained control, and response time.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 5

Range EasyPact
Product name EasyPact CVS
Product or component type Motor mechanism
Device short name motor mechanism module
Product compatibility EasyPact CVS100...250 circuit-breaker

Complementary 9

Control type Local/remote control
Control signal type Impulse and maintained
Supply voltage [Us] 110...230 V AC 50/60 Hz, 110...230 V DC
Mounting mode Fixed
Response time <= 350 ms (opening), <= 700 ms (closing)
Maximum operating frequency <= 3 cycles per minute
Maximum power consumption in VA 150 VA closing, 150 VA opening
Electrical durability 25000 cycles 110...230 V AC 50/60 Hz, 25000 cycles 110...230 V DC
IK degree of protection IK07

Environment 1

IP degree of protection IP20
Show all 45 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV435001
Type designation motor mechanism module
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 16.000 cm
Package 1 Length 18.000 cm
Package 1 Weight 1.109 kg
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 9.519 kg
Unit Type of Package 3 P12
Number of Units in Package 3 32
Package 3 Height 105.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 50.076 kg
Shipping weight 1.109 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV435001

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the motor mechanism module

Which supply voltage is motor mechanism module rated for?

The rated operational voltage of motor mechanism module is 110–230–DC V DC.

What is the HS code of motor mechanism module for customs?

The tariff (HS) code on file for motor mechanism module is 853890.

Where does motor mechanism module ship from, and how fast?

motor mechanism module ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
