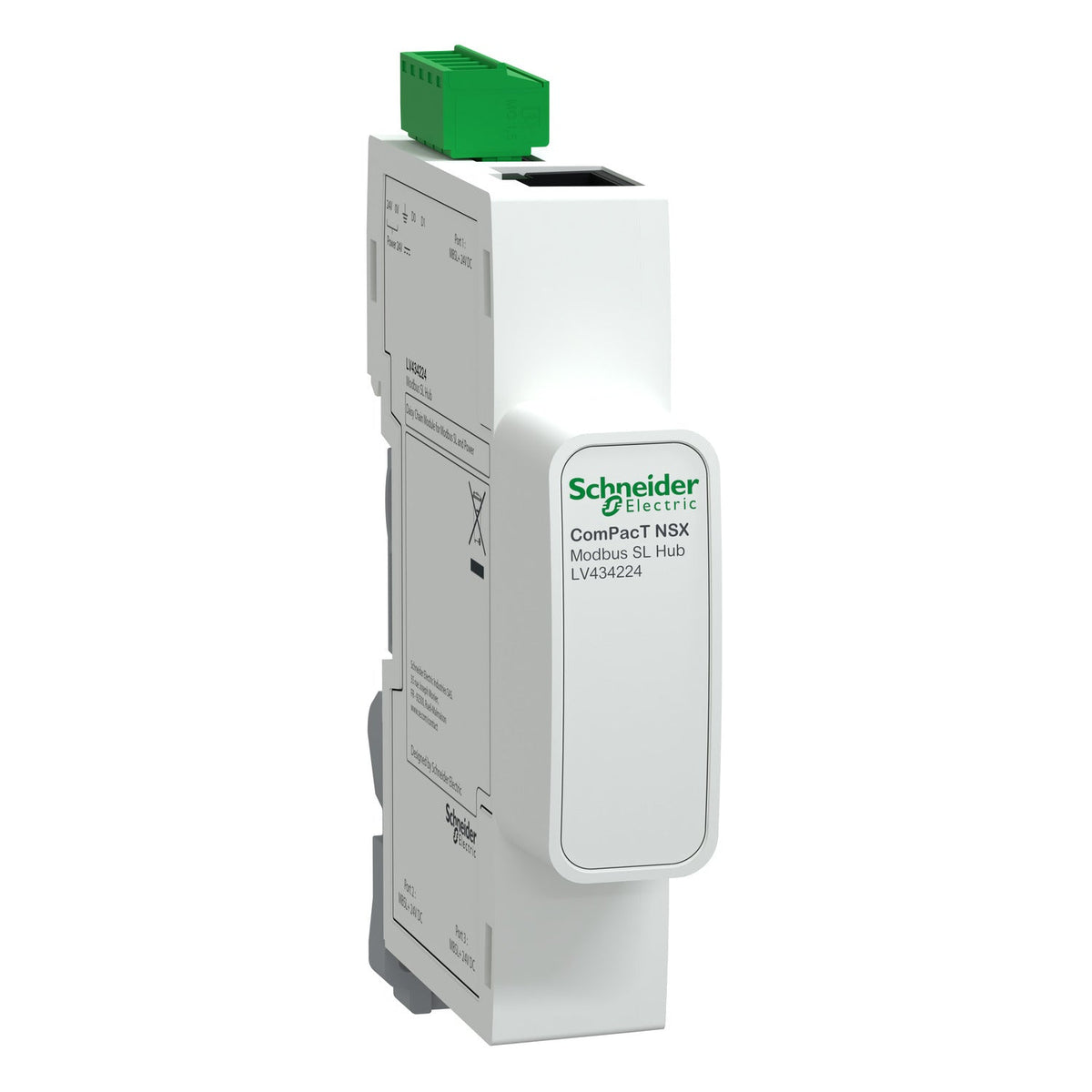

The Schneider Electric LV434224 Modbus SL Hub is a DIN-rail-mounted interface module that daisy-chains Modbus connectivity for ComPacT NSX100 to NSX630 circuit breakers. It has 3 RJ45 ports, each connecting to one BSCM Modbus SL/ULP module via a BSCM Modbus cord, and a stacking connector that links through to an IFM or IFE interface module.
The Modbus SL Hub is required whenever more than one ComPacT NSX breaker's BSCM module needs to share a single Modbus serial line; each hub's 3 RJ45 ports connect up to 3 BSCM-equipped breakers, and its 24 V DC terminal block also accepts other Modbus serial devices and gateways onto the same chain. It is a passive daisy-chain aggregator, not a protocol converter — reaching an Ethernet-based (IFE) or Modbus-TCP master still requires the separate IFM or IFE interface module.
| Range of product | ComPacT NSX100...250, ComPacT NSX400...630 |
|---|---|
| Device short name | Modbus SL HUB |
| Product or component type | Modbus hub |
| Device application | Communication |
| Range compatibility | ComPacT NSX100, ComPacT NSX160, ComPacT NSX250, ComPacT NSX400, ComPacT NSX630 |
| Function of module | Daisy chain for Modbus devices |
| Communication network type | Modbus, Modbus Serial line slave9.6...38.4 kbauds |
|---|---|
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Accuracy class | Class 2 power supply |
| [Us] rated supply voltage | 24 V DC |
| Input voltage | 24 V DC +/- 10 % |
| Current consumption | 2 mA 24 V DC room temperature |
| Power consumption in W | 0.048 W |
| Connections - terminals | RJ45 connector |
| Product certifications | UL |
| Standards | CISPR 32, IEC 61000-4-3, IEC 61000-4-6, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-2 |
| Height | 102 mm |
| Width | 71 mm |
| Depth | 18 mm |
| Net weight | 57.6 g |
| Relative humidity | 5…85 % at 55 °C without condensation |
|---|---|
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…55 °C |
| Pollution degree | 3 |
| Part number | LV434224 |
|---|---|
| Type designation | Modbus SL HUB |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.100 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 11.300 cm |
| Package 1 Weight | 79.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.424 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 64.784 kg |
| Shipping weight | 0.058 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
