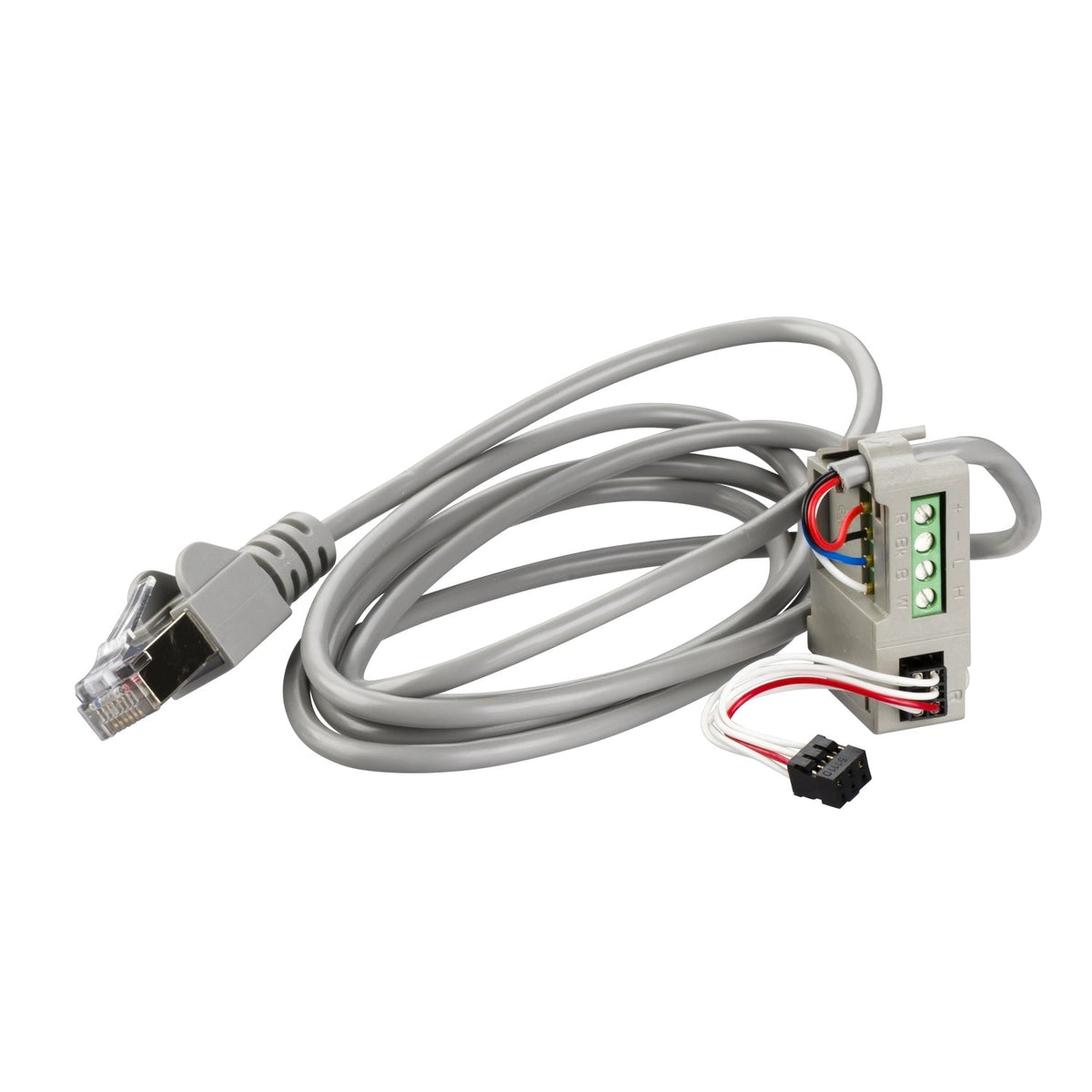

The Schneider Electric LV434202 is a 3 m NSX cord, a terminal block connector that wires a ComPacT NSX circuit breaker to its ULP peripherals. It plugs onto the breaker's BSCM module with one RJ45 connector, carrying both ULP communication and 24 V DC power to devices such as the FDM121 display, IFM/IFE modules, or an I/O module, and is rated for systems up to 480 V AC.
The 3 m LV434202 is the longest NSX cord in the family, suited to a BSCM-connected FDM121 display or communication module mounted on a remote door or adjacent panel section. Connection method and electrical rating match the shorter 0.35 m and 1.3 m variants; only the reach changes.
| Device short name | cord L = 3 m |
|---|---|
| Product or Component Type | Terminal block connector |
| Range compatibility | ComPact ComPact NSX DC, PowerPact PowerPact Multistandard, ComPact ComPact NSX |
| Mounting Mode | By clips |
|---|---|
| Location of connection | Inside |
| Localisation on device | Internal |
| Connector Type | 1 RJ45 |
| [Ue] rated operational voltage | <= 480 V |
| Length | 9.8 ft (3 m) |
| Warranty (in months) | 18 |
|---|
| Part number | LV434202 |
|---|---|
| Type designation | cord L = 3 m |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480022258 |
| Country of origin | FR |
|---|---|
| Shipping weight | 0.108 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for cord L = 3 m is 853890.
The EAN (GTIN) of cord L = 3 m is 3606480022258.
cord L = 3 m ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
