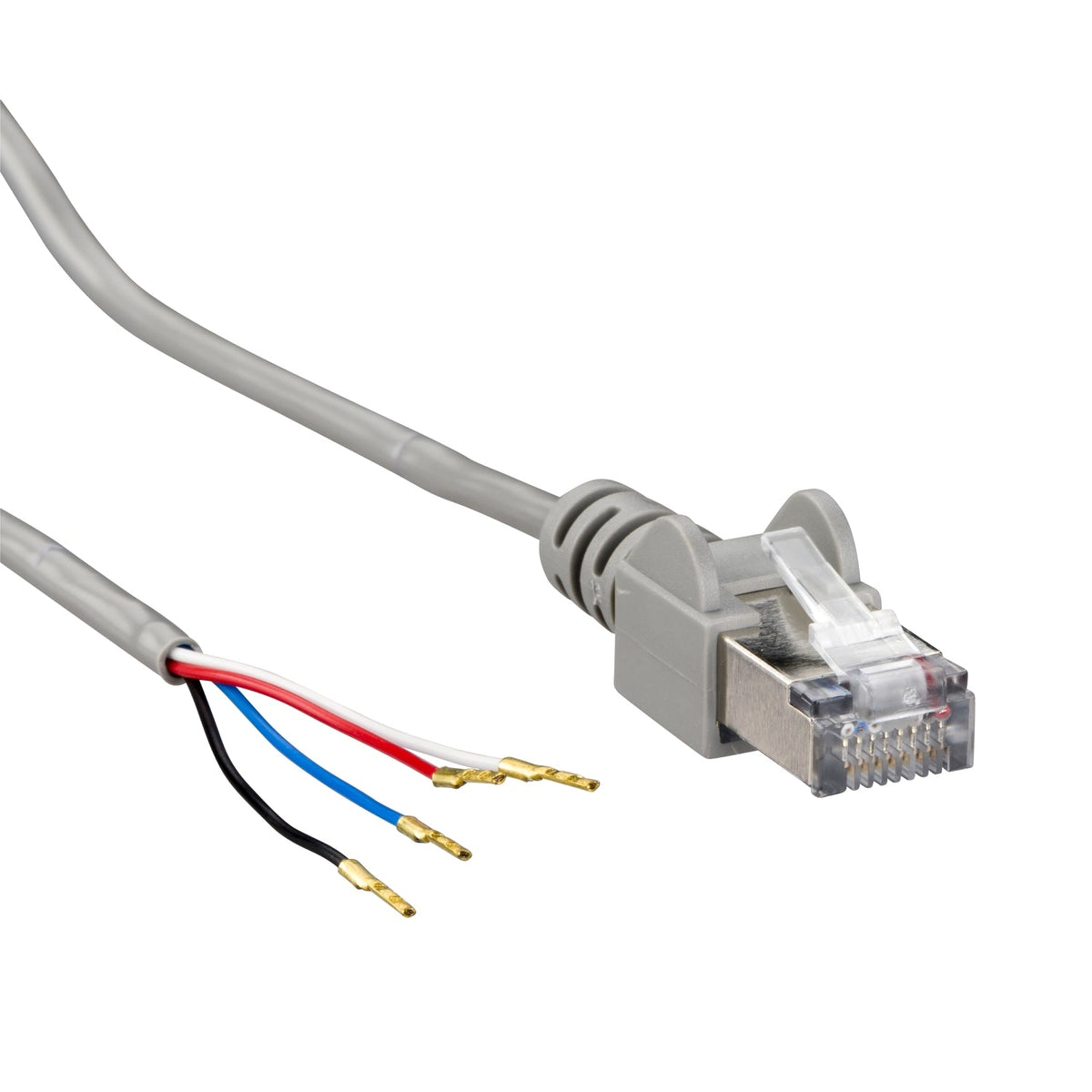

The Schneider Electric LV434197 is a single-end prefabricated ULP cord that wires a ComPacT NS or MasterPact NT/NW circuit breaker to its ULP peripherals over a 3 m run. It terminates in one RJ45 connector and connects directly on the breaker connection terminals, linking the breaker to an FDM121 display, an IFM or IFE communication module, or an I/O module.
Use the 3 m cord instead of the 1.3 m version when the FDM121 display or the IFM/IFE/I-O module is mounted on a separate door or in another enclosure section away from the breaker. The connection method is identical: one RJ45 end plugs into the ULP device, the other wires onto the breaker terminals.
| Device short name | cord L = 3 m |
|---|---|
| Product or Component Type | Single-end prefabricated cable |
| Range compatibility | MasterPact MasterPact MTZ, MasterPact MasterPact NW, MasterPact MasterPact NT, ComPacT ComPacT NS new generation, ComPact ComPact NS |
| Localisation on device | External, Internal |
|---|---|
| Connector Type | 1 RJ45 |
| Length | 9.8 ft (3 m) |
| Accessory / separate part category | Spare part |
| Warranty (in months) | 18 |
|---|
| Part number | LV434197 |
|---|---|
| Type designation | cord L = 3 m |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480397530 |
| Country of origin | CN |
|---|---|
| Shipping weight | 0.094 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for cord L = 3 m is 853890.
The EAN (GTIN) of cord L = 3 m is 3606480397530.
cord L = 3 m ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
