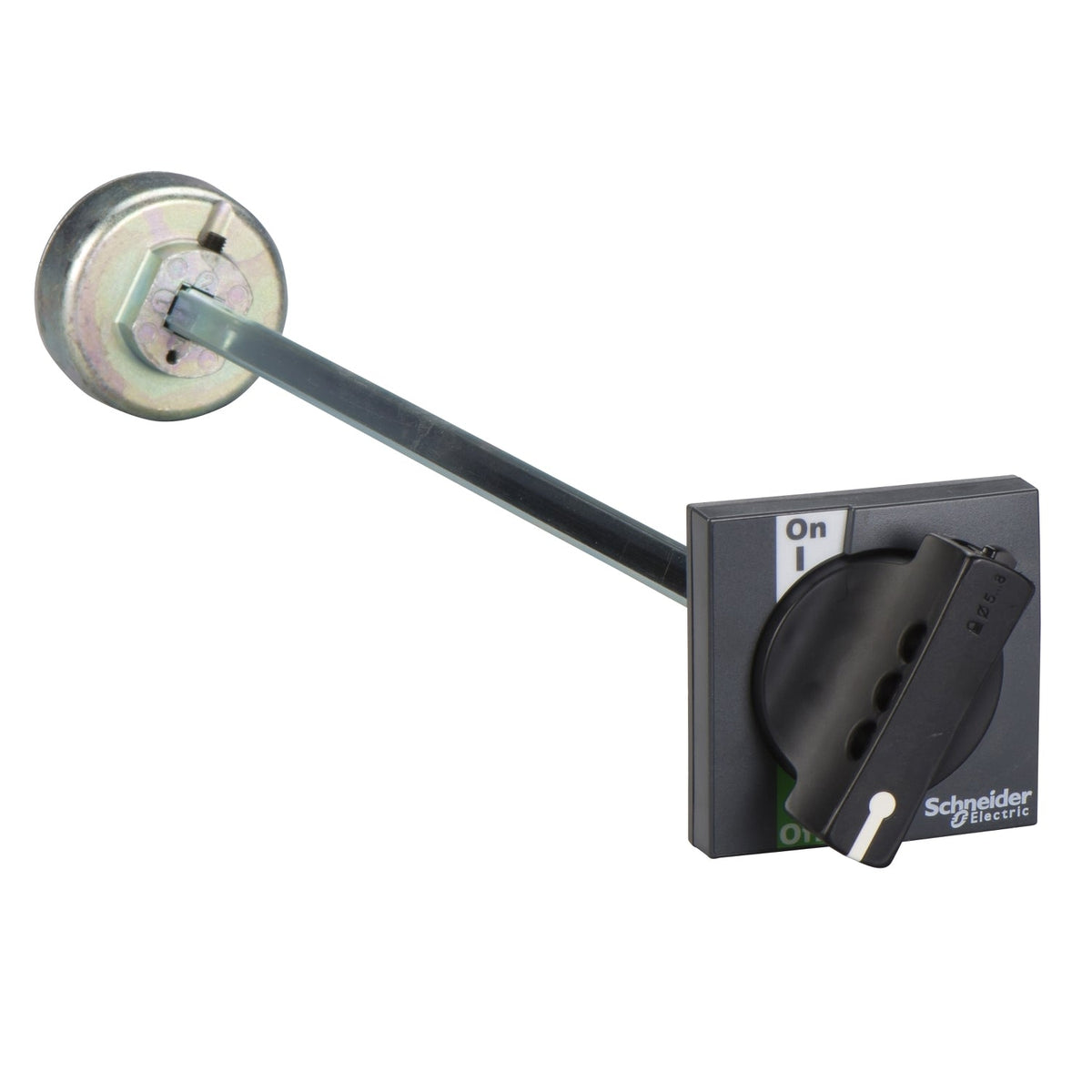

The Schneider Electric LV431050 is an extended black rotary handle for ComPacT INV100-250 and INS250 switch-disconnectors. It mounts on the front of the switchboard and operates devices installed at the back, reaching IP55 and IK08 degrees of protection once fitted. The handle can be padlocked in the OFF position with one to three padlocks, 5-8 mm shackle diameter, and keeps suitability for isolation on standard front-control applications.
Pick the extended version over a direct-mount handle whenever the INV/INS device sits at the back of the switchboard and front-door operation is required; the red-handle variant on a yellow front covers emergency-off applications instead of this standard black handle.
| Range of product | INV100...250, INS250 |
|---|---|
| Device short name | rotary handle |
| Product or component type | Rotary handle |
| Accessory / separate part type | Control accessories |
| Handle colour | Black |
| Rotary handle mounting style | Extended |
| Rotary handle mounting location | Front |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | LV431050 |
|---|---|
| Type designation | rotary handle |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 48.400 cm |
| Package 1 Weight | 875.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.790 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 77.000 kg |
| Shipping weight | 0.875 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for rotary handle is 853890.
rotary handle ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
