Description
About the LV434023
About the LV434023

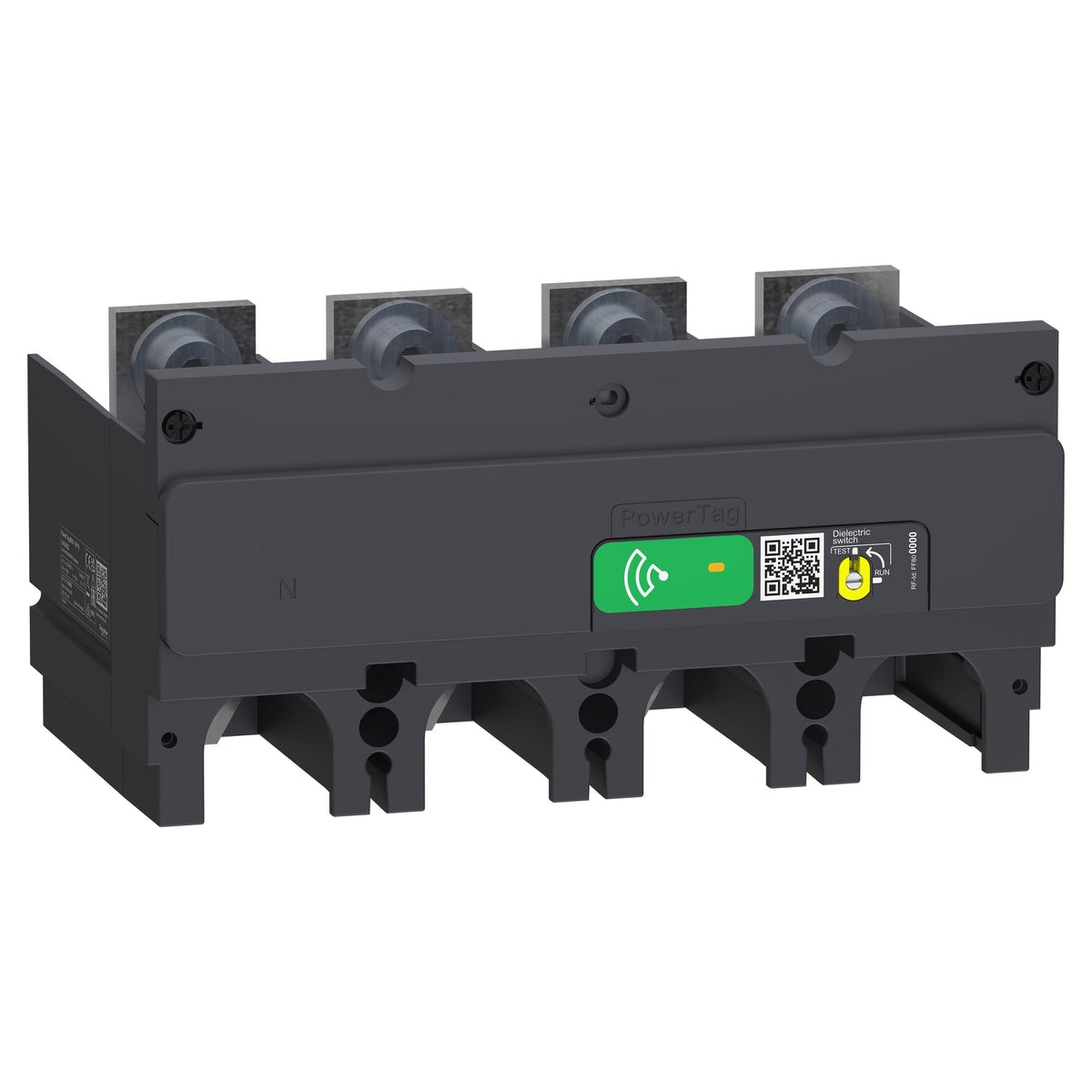

The Schneider Electric LV434023 is a PowerTag Energy M630 wireless energy sensor for 3P+N circuits up to 630 A, built with a Monoconnect form factor for direct mounting on the bottom of Compact NSX 400/630, Compact NS 400/630, Compact INS 320/400/500/630, and Compact INV 320/400/500/630 circuit breakers. It measures active and reactive energy, power, current, voltage and power factor to IEC 61557-12, and relays the readings over its built-in 2.4 GHz radio to a PowerTag-compatible concentrator or gateway for circuit-level monitoring.
Certifications & Standards
- IEC 61557-12
- IEC 61010-1
- IEC 61010-2-030
- IEC 61326-1
- ETSI EN 300 328
- ETSI EN 301 489-1
Selection Notes
Choosing between the 630 A M630 and its sibling current rating comes down to the breaker frame it mounts on: this sensor only fits Compact NSX 400/630, Compact NS 400/630, Compact INS 320/400/500/630, and Compact INV 320/400/500/630, so the breaker's own rated current — not the circuit's actual load — determines which PowerTag model is correct. The added neutral conductor on this 3P + N variant is needed when the circuit's neutral current or neutral-referenced energy must be measured separately, such as on a TN-S distribution feeding unbalanced single-phase loads off a three-phase-plus-neutral breaker. The basic current (Ib) of 100 A sets the lower bound for accurate Class 1 metering; below that, readings fall outside the IEC 61557-12 accuracy class.
Specification
Full specification
Main 21
| Range of product | PowerLogic |
|---|---|
| Product name | PowerTag M630 |
| Product or component type | Energy sensor |
| Poles | 3P + N |
| Maximum current [Imax] | 630 A |
| [Ib] Basic current | 100 A |
| Starting current | 400 mA |
| Saturation current | 1260 A |
| Product specific application | Energy management, Overload alarm, Power factor, Load monitoring, Circuit monitoring |
| Concentrator compatibility | EcoStruxure Panel Server Entry, EcoStruxure Panel Server Universal, EcoStruxure Panel Server Advanced, Harmony Hub, Acti9 Smartlink SI B, Acti9 Smartlink SI D, Acti9 PowerTag Link, Acti9 PowerTag Link HD |
| Range compatibility | ComPacT ComPacT NSX NSX400, ComPacT ComPacT NSX NSX630, ComPacT ComPacT INS INS320, ComPacT Compact INV Interpact INV400, ComPacT Compact INV Interpact INV630, Compact NS Compact NS400, Compact NS Compact NS630, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPacT ComPacT INS INS630 |
| Type of measurement | Active and reactive energy, Active and reactive power, Apparent power, Current, Voltage, Power factor |
| Accuracy class | Class 1 active energy conforming to IEC 61557-12, Class 2 reactive energy conforming to IEC 61557-12, Class 1 active power conforming to IEC 61557-12, Class 2 reactive power conforming to IEC 61557-12, Class 2 apparent power conforming to IEC 61557-12, Class 1 current conforming to IEC 61557-12, Class 0.5 voltage conforming to IEC 61557-12, Class 1 power factor conforming to IEC 61557-12 |
| Metering type | Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12, Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12, Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12, Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12, Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12, Current I1, I2, I3, Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12, Apparent power S, S1, S2, S3 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12, Active power P, P1, P2, P3 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12, Reactive power Q, Q1, Q2, Q3 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12, Frequency 45...65 Hz |
| Mounting location | Bottom |
| Mounting support | On circuit breaker |
| Connection pitch | 45 mm |
| Product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| Transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms |
| Emission power | 10 mW |
Complementary 14
| [Imp] maximum permanent current | 1.2 x In |
|---|---|
| Form factor | Monoconnect |
| Mounting mode | Bolt-on |
| Tightening torque | 50 N.m |
| supply voltage | 230 V AC, +/- 20 %, between phase and neutral, 400 V AC, +/- 20 %, between phases |
| Network frequency | 50 Hz, 60 Hz |
| Maximum power consumption | 3.7 VA |
| Standards | IEC 61557-12, IEC 61010-1, ETSI EN 301 489-1, IEC 61010-2-030, IEC 61326-1, ETSI EN 300 328 |
| Product certifications | IEC, DNV Marine |
| Height | 91 mm |
| Width | 185 mm |
| Depth | 110 mm |
| Net weight | 1000 g |
| Colour | Dark grey (RAL 7016) |
Environment 14
| Quality labels | CE |
|---|---|
| Directives | 2014/53/EU - radio equipment directive |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Overvoltage category | IV conforming to IEC 61010-1 |
| Measurement category | Category III conforming to IEC 61010-2-030 |
| IP degree of protection | IP20 |
| IK degree of protection | IK07 conforming to IEC 60068-2-75 test Ehb |
| Pollution degree | 3 |
| Relative humidity | 0…95 % at 55 °C conforming to IEC 60721-3-3 |
| Vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility | Industrial electromagnetic environment conforming to IEC 61326-1, Radiated EMC conforming to ETSI EN 301 489-17, Electromagnetic emission conforming to IEC 62311 |
| environmental characteristics | Indoor use |
Show all 78 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | LV434023 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 21.000 cm |
| Package 1 Weight | 1.312 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.034 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 73.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 60.544 kg |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
