About the LV434022
About the LV434022

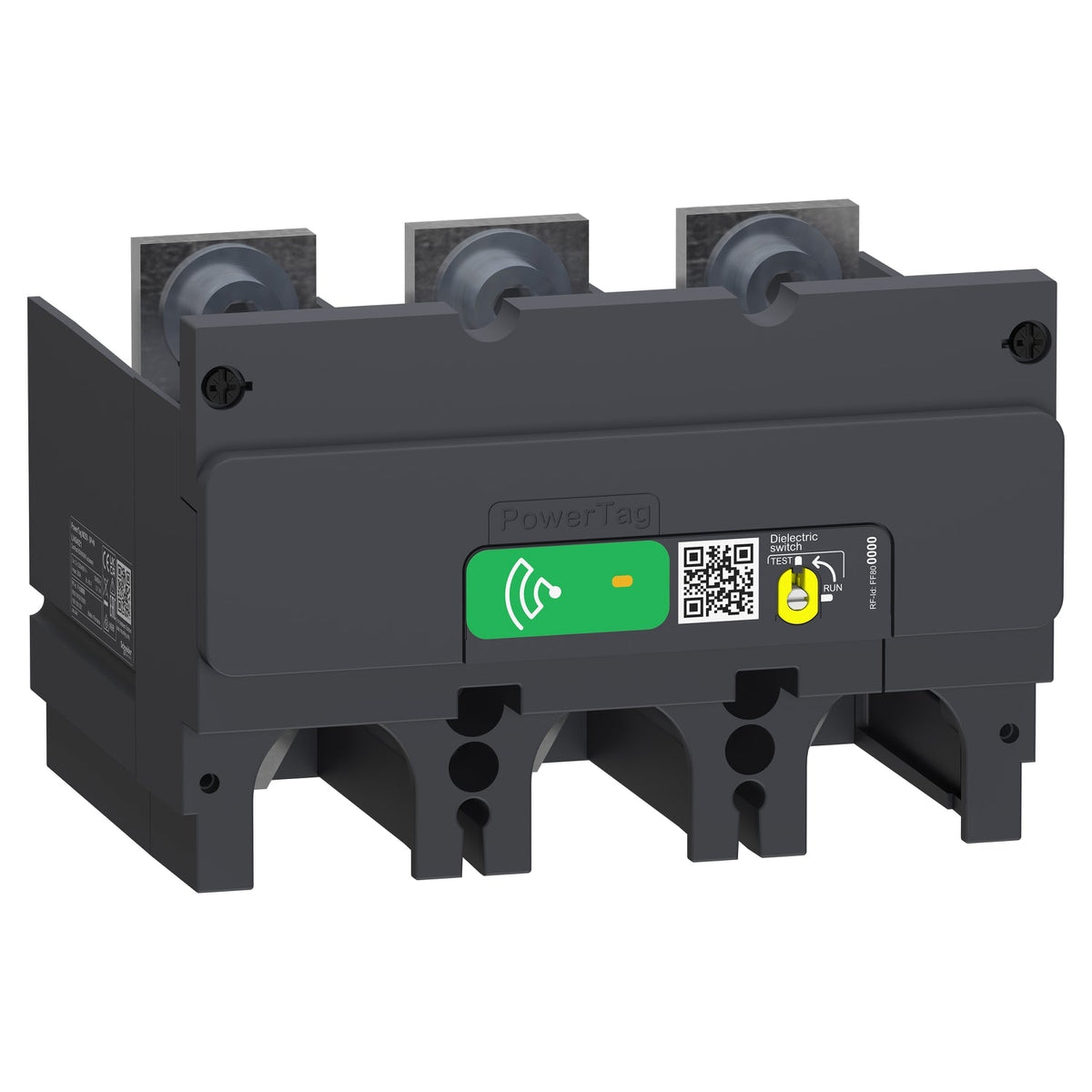

The Schneider Electric LV434022 is a PowerTag Energy M630 wireless energy sensor for 3P circuits up to 630 A, built with a Monoconnect form factor for direct mounting on the bottom of Compact NSX 400/630, Compact NS 400/630, and TeSys GV6 circuit breakers. It measures active and reactive energy, power, current, voltage and power factor to IEC 61557-12, and relays the readings over its built-in 2.4 GHz radio to a PowerTag-compatible concentrator or gateway for circuit-level monitoring.
Certifications & Standards
- IEC 61557-12
- IEC 61010-1
- IEC 61010-2-030
- IEC 61326-1
- ETSI EN 300 328
- ETSI EN 301 489-1
Selection Notes
Choosing between the 630 A M630 and its sibling current rating comes down to the breaker frame it mounts on: this sensor only fits Compact NSX 400/630, Compact NS 400/630, and TeSys GV6, so the breaker's own rated current — not the circuit's actual load — determines which PowerTag model is correct. This 3P variant covers balanced three-phase circuits without a monitored neutral conductor; where the installation needs neutral current or energy data as well, the 3P+N version of the same M630 sensor is the one to specify. The basic current (Ib) of 100 A sets the lower bound for accurate Class 1 metering; below that, readings fall outside the IEC 61557-12 accuracy class.
Specification
Full specification
Main 21
| Range of product | PowerLogic |
|---|---|
| Product name | PowerTag M630 |
| Product or component type | Energy sensor |
| Poles | 3P |
| Maximum current [Imax] | 630 A |
| [Ib] Basic current | 100 A |
| Starting current | 400 mA |
| Saturation current | 1260 A |
| Product specific application | Energy management, Overload alarm, Power factor, Load monitoring, Circuit monitoring |
| Concentrator compatibility | EcoStruxure Panel Server Entry, EcoStruxure Panel Server Universal, EcoStruxure Panel Server Advanced, Harmony Hub, Acti9 Smartlink SI B, Acti9 Smartlink SI D, Acti9 PowerTag Link, Acti9 PowerTag Link HD |
| Range compatibility | ComPacT ComPacT NSX NSX400, ComPacT ComPacT NSX NSX630, Compact NS Compact NS400, Compact NS Compact NS630, TeSys TeSys GV6, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630 |
| Type of measurement | Active and reactive energy, Active and reactive power, Apparent power, Current, Voltage, Power factor |
| Accuracy class | Class 1 active energy conforming to IEC 61557-12, Class 2 reactive energy conforming to IEC 61557-12, Class 1 active power conforming to IEC 61557-12, Class 2 reactive power conforming to IEC 61557-12, Class 2 apparent power conforming to IEC 61557-12, Class 1 current conforming to IEC 61557-12, Class 0.5 voltage conforming to IEC 61557-12, Class 1 power factor conforming to IEC 61557-12 |
| Metering type | Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12, Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12, Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12, Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12, Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12, Apparent power S, S1, S2, S3 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12, Active power P, P1, P2, P3 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12, Reactive power Q, Q1, Q2, Q3 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12, Current I1, I2, I3, Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12, Frequency 45...65 Hz |
| Mounting location | Bottom |
| Mounting support | On circuit breaker |
| Connection pitch | 45 mm |
| Product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| Transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms |
| Emission power | 10 mW |
Complementary 14
| [Imp] maximum permanent current | 1.2 x In |
|---|---|
| Form factor | Monoconnect |
| Mounting mode | Bolt-on |
| Tightening torque | 50 N.m |
| supply voltage | 230 V AC, +/- 20 %, between phase and neutral, 400 V AC, +/- 20 %, between phases |
| Network frequency | 50 Hz, 60 Hz |
| Maximum power consumption | 3.7 VA |
| Standards | IEC 61557-12, IEC 61010-1, ETSI EN 301 489-1, IEC 61010-2-030, IEC 61326-1, ETSI EN 300 328 |
| Product certifications | IEC, DNV Marine |
| Height | 91 mm |
| Width | 140 mm |
| Depth | 110 mm |
| Net weight | 800 g |
| Colour | Dark grey (RAL 7016) |
Environment 14
| Quality labels | CE |
|---|---|
| Directives | 2014/53/EU - radio equipment directive |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Overvoltage category | IV conforming to IEC 61010-1 |
| Measurement category | Category III conforming to IEC 61010-2-030 |
| IP degree of protection | IP20 |
| IK degree of protection | IK07 conforming to IEC 60068-2-75 test Ehb |
| Pollution degree | 3 |
| Relative humidity | 0…95 % at 55 °C conforming to IEC 60721-3-3 |
| Vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| Electromagnetic compatibility | Industrial electromagnetic environment conforming to IEC 61326-1, Radiated EMC conforming to ETSI EN 301 489-17, Electromagnetic emission conforming to IEC 62311 |
| environmental characteristics | Indoor use |
Show all 78 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | LV434022 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 1.063 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.570 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 73.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 44.000 kg |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
