Part number
LV434021
$514.86 On request Dispatch — · From TürkiyeGet a Quote
PowerLogic

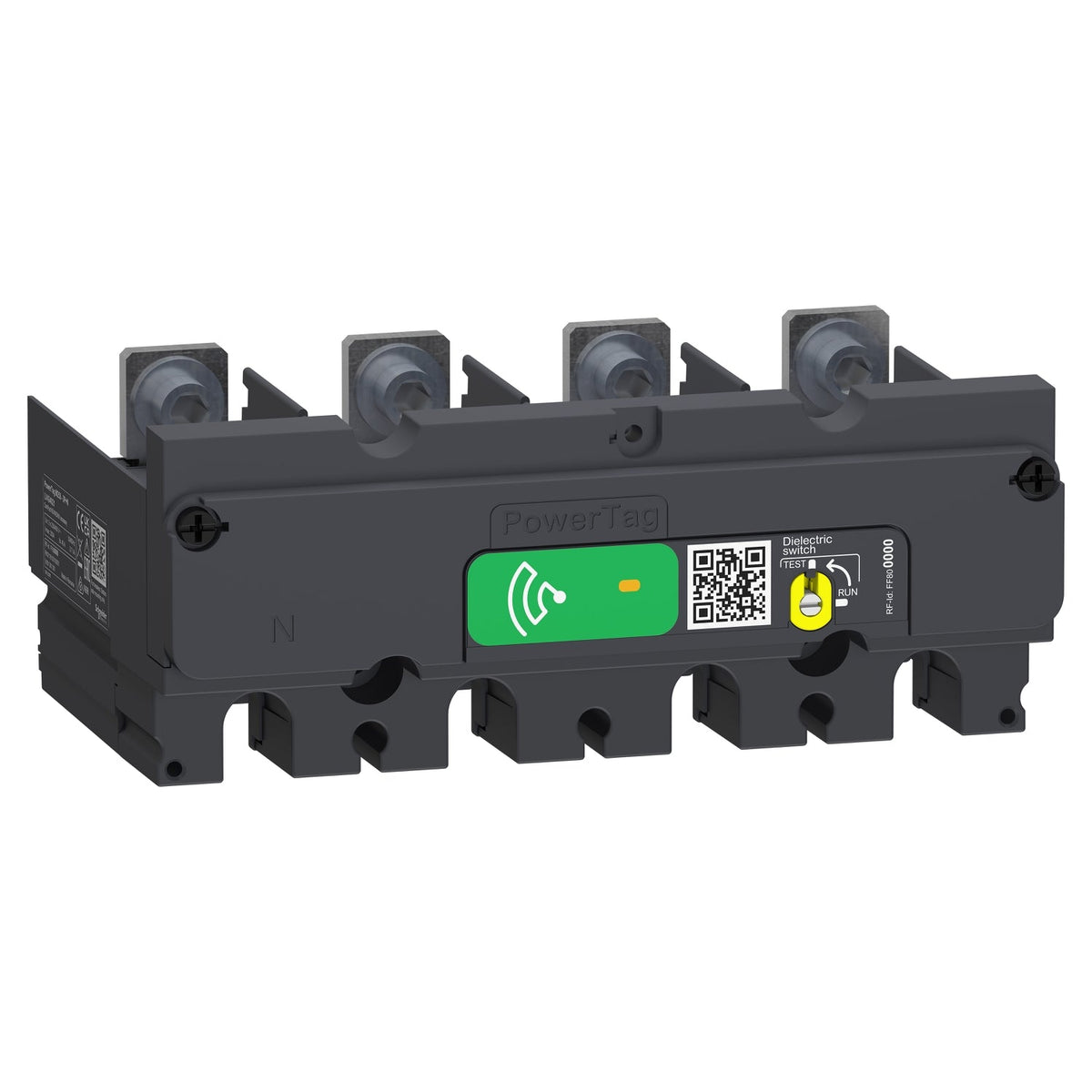

Schneider Electric LV434021 PowerTag NSX Energy M250 Wireless Energy Sensor 3P+N 250 A Wireless Energy Sensor

PowerTag NSX Energy M250 wireless energy sensor, 3P+N, 250 A, IEC 61557-12 Class 1.

Rated current
250 A
Rated operational voltage
230–400 V AC
Communication
Wireless 2.4 GHz, IEEE 802.15.4
Description

About the LV434021

The Schneider Electric LV434021 is a PowerTag Energy M250 wireless energy sensor for 3P+N circuits up to 250 A, built with a Monoconnect form factor for direct mounting on the bottom of Compact NSX 100/160/250, Compact NS 100/160/250, Compact INS250, and Compact INV 100/160/200/250 circuit breakers. It measures active and reactive energy, power, current, voltage and power factor to IEC 61557-12, and relays the readings over its built-in 2.4 GHz radio to a PowerTag-compatible concentrator or gateway for circuit-level monitoring.

Certifications & Standards

  • IEC 61557-12
  • IEC 61010-1
  • IEC 61010-2-030
  • IEC 61326-1
  • ETSI EN 300 328
  • ETSI EN 301 489-1

Selection Notes

Choosing between the 250 A M250 and its sibling current rating comes down to the breaker frame it mounts on: this sensor only fits Compact NSX 100/160/250, Compact NS 100/160/250, Compact INS250, and Compact INV 100/160/200/250, so the breaker's own rated current — not the circuit's actual load — determines which PowerTag model is correct. The added neutral conductor on this 3P + N variant is needed when the circuit's neutral current or neutral-referenced energy must be measured separately, such as on a TN-S distribution feeding unbalanced single-phase loads off a three-phase-plus-neutral breaker. The basic current (Ib) of 40 A sets the lower bound for accurate Class 1 metering; below that, readings fall outside the IEC 61557-12 accuracy class.

Specification

Full specification

78 values · Last verified 30 Oct 2026

Main 21

Range of product PowerLogic
Product name PowerTag M250
Product or component type Energy sensor
Poles 3P + N
Maximum current [Imax] 250 A
[Ib] Basic current 40 A
Starting current 160 mA
Saturation current 500 A
Product specific application Energy management, Overload alarm, Power factor, Load monitoring, Circuit monitoring
Concentrator compatibility EcoStruxure Panel Server Entry, EcoStruxure Panel Server Universal, EcoStruxure Panel Server Advanced, Harmony Hub, Acti9 Smartlink SI B, Acti9 Smartlink SI D, Acti9 PowerTag Link, Acti9 PowerTag Link HD
Range compatibility ComPacT ComPacT NSX NSX100, ComPacT ComPacT NSX NSX250, ComPacT Compact INV Interpact INV100, ComPacT Compact INV Interpact INV250, Compact NS Compact NS100, Compact NS Compact NS250, ComPacT ComPacT INS INS250, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250
Type of measurement Active and reactive energy, Active and reactive power, Apparent power, Current, Voltage, Power factor
Accuracy class Class 1 active energy conforming to IEC 61557-12, Class 2 reactive energy conforming to IEC 61557-12, Class 1 active power conforming to IEC 61557-12, Class 2 reactive power conforming to IEC 61557-12, Class 2 apparent power conforming to IEC 61557-12, Class 1 current conforming to IEC 61557-12, Class 0.5 voltage conforming to IEC 61557-12, Class 1 power factor conforming to IEC 61557-12
Metering type Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12, Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12, Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12, Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12, Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12, Current I1, I2, I3, Iavg 8...250 A: class 1 at 25 °C conforming to IEC 61557-12, Apparent power S, S1, S2, S3 88 VA...416 kVA: class 2 at 25 °C conforming to IEC 61557-12, Active power P, P1, P2, P3 88 W...416 kW: class 1 at 25 °C conforming to IEC 61557-12, Reactive power Q, Q1, Q2, Q3 88 VAR...416 kVAR: class 2 at 25 °C conforming to IEC 61557-12, Frequency 45...65 Hz
Mounting location Bottom
Mounting support On circuit breaker
Connection pitch 35 mm
Product destination Switchboard
Event management Voltage loss with measured current at voltage loss
Transmission support medium Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms
Emission power 10 mW

Complementary 14

[Imp] maximum permanent current 1.2 x In
Form factor Monoconnect
Mounting mode Bolt-on
Tightening torque 10 N.m
supply voltage 230 V AC, +/- 20 %, between phase and neutral, 400 V AC, +/- 20 %, between phases
Network frequency 50 Hz, 60 Hz
Maximum power consumption 3.7 VA
Standards IEC 61557-12, IEC 61010-1, ETSI EN 301 489-1, IEC 61010-2-030, IEC 61326-1, ETSI EN 300 328
Product certifications IEC, DNV Marine
Height 57 mm
Width 140 mm
Depth 86 mm
Net weight 300 g
Colour Dark grey (RAL 7016)

Environment 14

Quality labels CE
Directives 2014/53/EU - radio equipment directive
Operating altitude 0...2000 m
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -50…85 °C
Overvoltage category IV conforming to IEC 61010-1
Measurement category Category III conforming to IEC 61010-2-030
IP degree of protection IP20
IK degree of protection IK07 conforming to IEC 60068-2-75 test Ehb
Pollution degree 3
Relative humidity 0…95 % at 55 °C conforming to IEC 60721-3-3
Vibration resistance 3M4 conforming to IEC 60721-3-3
Electromagnetic compatibility Industrial electromagnetic environment conforming to IEC 61326-1, Radiated EMC conforming to ETSI EN 301 489-17, Electromagnetic emission conforming to IEC 62311
environmental characteristics Indoor use
Show all 78 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number LV434021
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 11.000 cm
Package 1 Length 17.300 cm
Package 1 Weight 546.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 4
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.630 kg
Unit Type of Package 3 P06
Number of Units in Package 3 64
Package 3 Height 71.500 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 54.080 kg
Shipping weight 0.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV434021

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • Marine
  • IEC 61557-12
  • IEC 61010-1
  • ETSI EN 301 489-1
  • IEC 61010-2-030
  • IEC 61326-1
  • ETSI EN 300 328
Quick answers

Questions about the LV434021

What is the rated current of LV434021?

The rated current of LV434021 is 250 A.

Which supply voltage is LV434021 rated for?

The rated operational voltage of LV434021 is 230–400 V AC.

What is the HS code of LV434021 for customs?

The tariff (HS) code on file for LV434021 is 902830.

Where does LV434021 ship from, and how fast?

LV434021 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
