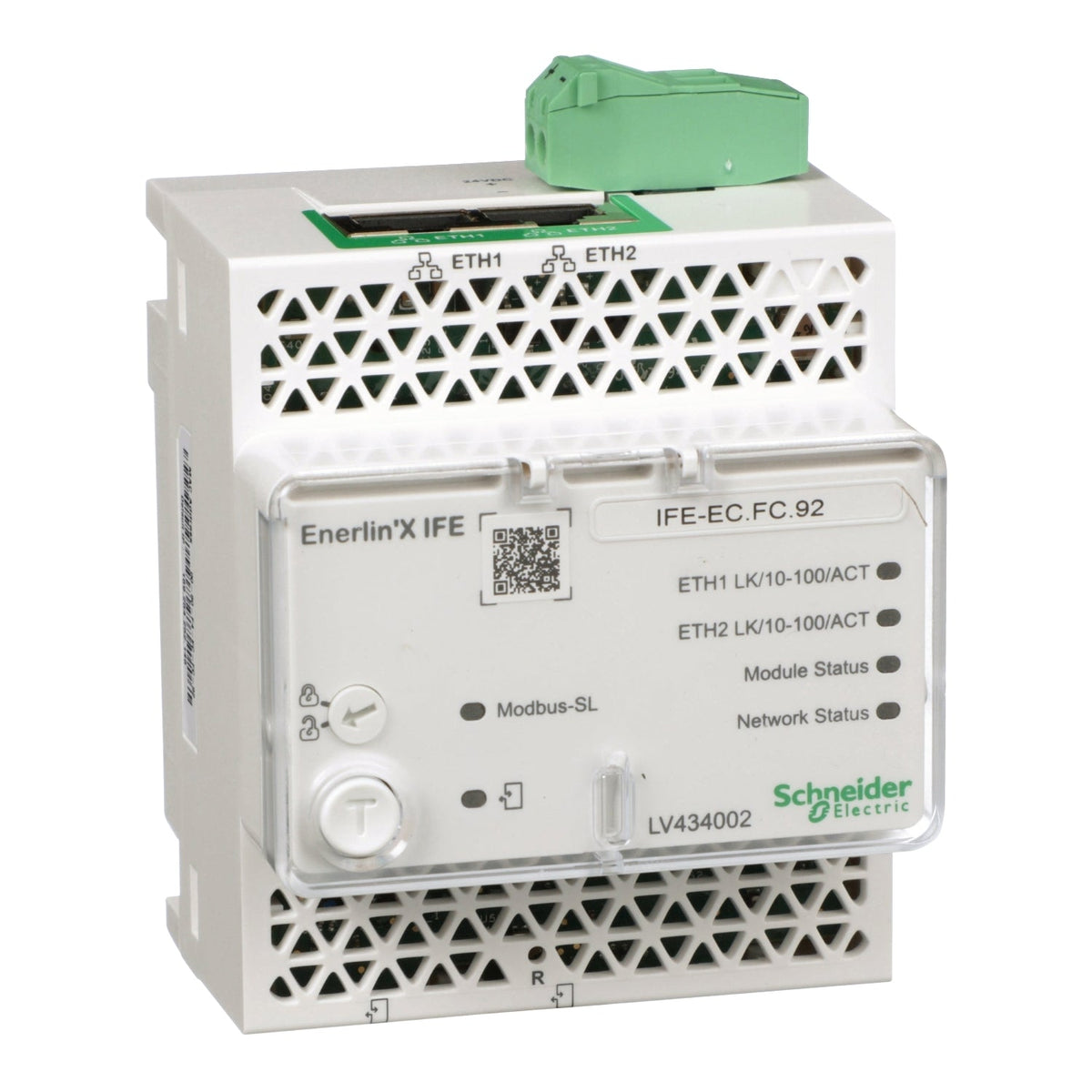

Enerlin'X IFE Ethernet switchboard server with Modbus TCP/IP gateway for MasterPact/ComPacT/PowerPact, 24 V DC.
The Schneider Electric LV434002 is an Enerlin'X IFE Ethernet switchboard server that gives one or several MasterPact, ComPacT or PowerPact circuit breakers Ethernet access at 10/100 Mbps and incorporates a Modbus TCP/IP-to-Modbus gateway. It mounts on 35 mm DIN rail with an embedded HTTP server and draws 24 V DC -20/+10% at 120 mA.
LV434002 adds a built-in Modbus TCP/IP-to-Modbus gateway on top of the same Ethernet hardware used in the single-breaker IFE module, so it suits a switchboard where several MasterPact, ComPacT or PowerPact breakers need to be reached from one Ethernet drop instead of wiring each breaker's own Ethernet port. The two RJ45 ULP ports on its underside daisy-chain the breaker's internal ULP link while the two top-side RJ45 ports carry the Ethernet/Modbus TCP connection at up to 38.4 kbaud on the Modbus master side.
| Range of Product | ComPact NSX100...250, ComPact NSX400...630, ComPact NS630b...1600, ComPact NS1600b...3200 |
|---|---|
| Device short name | IFE |
| Product or Component Type | Interface module |
| Range compatibility | Masterpact MasterPact MTZ, Masterpact MasterPact NT, Masterpact MasterPact NW, ComPact ComPact NSX, ComPact ComPact NS630b...1600, ComPact ComPact NS1600b...3200, PowerPact PowerPact J, PowerPact PowerPact L, PowerPact PowerPact H, PowerPact PowerPact P, PowerPact PowerPact R |
| Communication network type | Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45, Universal Logic Plug 2-port RJ45, Modbus TCP/IP, Modbus TCP master 9.6...38.4 kbauds |
|---|---|
| Communication gateway | Ethernet TCP/IP to Modbus |
| Web server | Embedded HTTP server |
| Mounting Mode | By clips |
| Mounting Support | 35 mm DIN rail |
| Control Type | By software |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Maximum supply current | 3 A |
| Current consumption | 120 mA |
| Connections - Terminals | RJ45 connector |
| Product Certifications | CE, GOST, cULus, FCC |
| Standards | IEC 60947-6-2, UL 508, UL 60950, IEC 60950 |
| Height | 4.1 in (105 mm) |
| Width | 2.8 in (72 mm) |
| Depth | 2.8 in (71 mm) |
| Net Weight | 6.4 oz (182.5 g) |
| Accessory / separate part category | Spare part Compact NS630b...1600, Spare part Compact NS1600b...3200 |
| IP Degree of Protection | Connectors IP2X, Other parts IP3x, Front panel IP4X |
|---|---|
| Relative humidity | 5…85 % |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -4…158 °F (-20…70 °C) |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11 |
| Shock resistance | 1000 m/s² |
| Vibration frequency | 5…8.4 Hz |
| Part number | LV434002 |
|---|---|
| Type designation | IFE |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481283146 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 0.183 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for IFE is 853890.
The EAN (GTIN) of IFE is 3606481283146.
IFE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
