Schneider Electric LV432642 ComPacT NSX400-630 Standard Motor Mechanism 380-415 V AC Accessory

% $-952.70

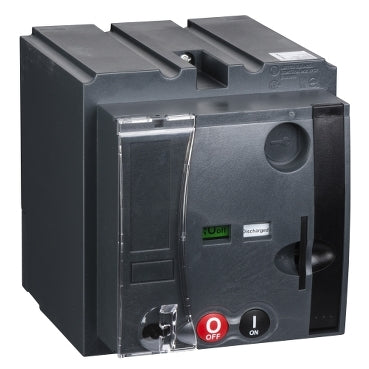

Schneider Electric LV432642 standard motor mechanism MT400/630 for ComPacT NSX400-630
Schneider Electric LV432642 standard motor mechanism MT400/630 for ComPacT NSX400-630

Schneider Electric LV432642 ComPacT NSX400-630 Standard Motor Mechanism 380-415 V AC Accessory

Brand: Schneider Electric
Reference No: LV432642
Tariff Code (HS): 85362090
Rated Voltage: 380-415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$952.70

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV432642 is a standard motor mechanism (MT400/630) for fixed ComPacT NSX400, NSX630 and PowerPact L-frame circuit breakers, supplied at 380-415 V AC, 50 Hz. It automates spring-charging for high mechanical endurance opening and closing. It responds to an open command in under 700 ms and a close command in under 80 ms, up to 4 operations per minute.

Technical Specifications

Reference LV432642
GTIN 3606480020186
Brand Schneider Electric
Device Short Name MT400/630
Range Compatibility ComPacT NSX400, NSX630, NSX400 DC, NSX630 DC
Device Application Automatic spring charging
Control Type Standard
[Uc] Control Circuit Voltage 380-415 V AC, 50 Hz
Circuit Breaker Mounting Mode Fixed
Compatible Frame Current 400 A, 630 A
Control Signal Type Impulse, maintained
Response Time Open < 700 ms, close < 80 ms
Max. Power Consumption 500 VA (opening and closing)

Selection Notes

Pick this standard MT400/630 mechanism when only local automatic spring-charging is needed on a fixed NSX400/630 breaker; for remote open/close control, use the communicating MTc400/630 (LV432652) instead.

Technical Details

Short Description
The Schneider Electric LV432642 is a standard motor mechanism (MT400/630) for fixed ComPacT NSX400, NSX630 and PowerPact L-frame circuit breakers,...
Rated Voltage (VAC)
380-415 V AC
Mounting Type
Fixed, on-device
Delivery Date (Days)
30 days
Model Number
Standard Motor Mechanism MT400/630
Tariff Code
85362090
