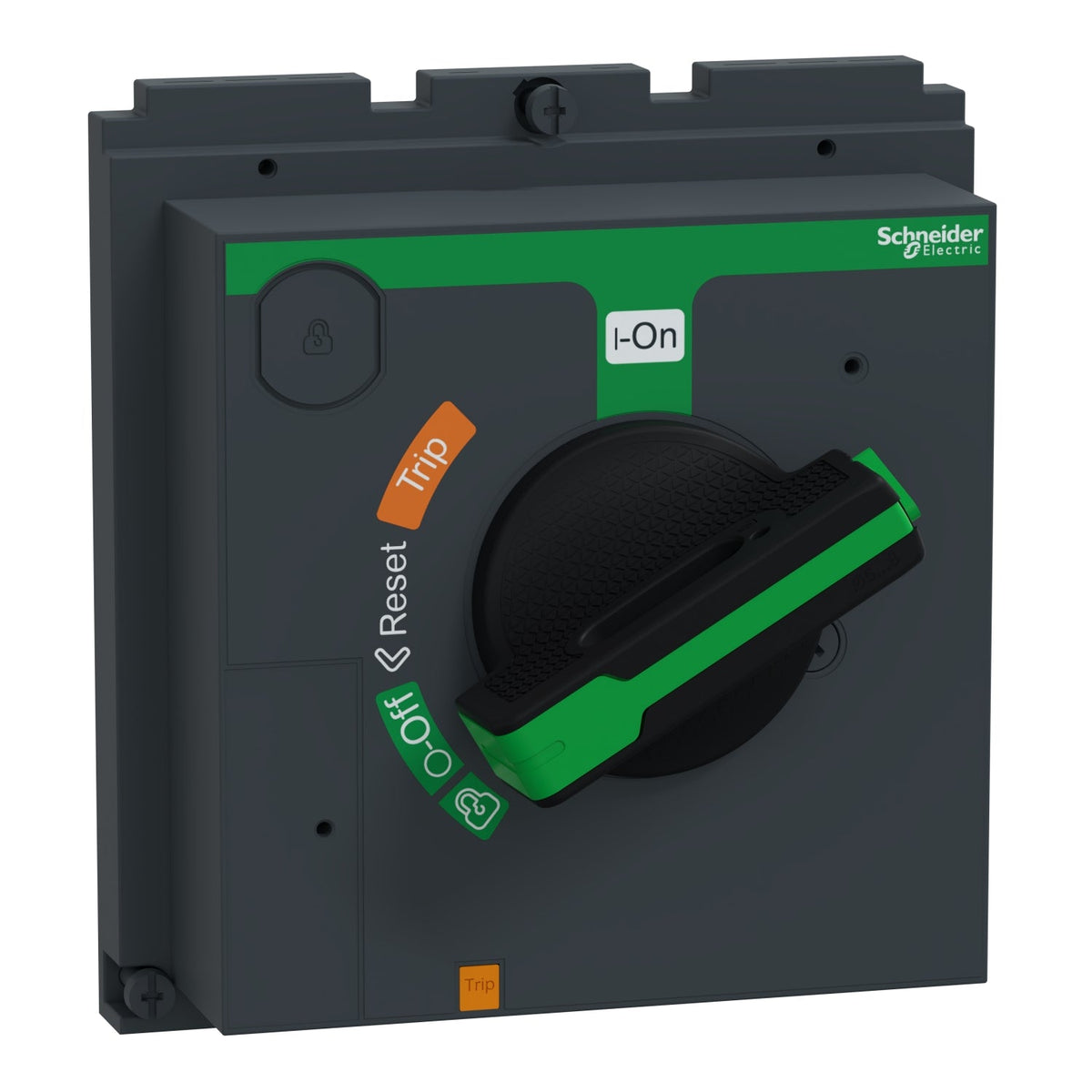

The Schneider Electric LV432597T is a black direct rotary handle for ComPacT NSX400 and NSX630 circuit breakers (also fitting PowerPact Multistandard L frames), rated IP40. Mounted on the front of the device, it is suitable for isolation, keeps access to the trip-unit settings and push-to-trip button, and indicates the breaker's O (OFF), I (ON) and tripped positions.
The direct handle mounts straight onto the breaker front and suits panels with full front access; where the breaker sits behind a switchboard door, the extended rotary handle (shaft length 209-600 mm, IP55) is the alternative. A Ronis or Profalux keylock can be fitted on the handle base for the same lockout function as a padlock.
| Range of product | ComPacT NSX400...630 |
|---|---|
| Product or component type | Rotary handle |
| Range compatibility | ComPacT NSX400...630, PowerPact Multistandard |
| Accessory / separate part type | Control accessories |
| Handle front plate colour | Black |
| Handle colour | Black |
| Rotary handle mounting style | Direct |
| Rotary handle padlocking | 1 to 3 padlocks, Padlock in OFF position |
|---|---|
| Rotary handle mounting location | Front |
| IP degree of protection | IP40 |
|---|
| Part number | LV432597T |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.0 cm |
| Package 1 Width | 15.5 cm |
| Package 1 Length | 15.0 cm |
| Package 1 Weight | 488.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.722 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 105.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 120.000 kg |
| Shipping weight | 0.488 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV432597T is 853890.
LV432597T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
