Part number
LV432594
$26.25 On request Dispatch — · From TürkiyeGet a Quote
Schneider ComPacT NSX

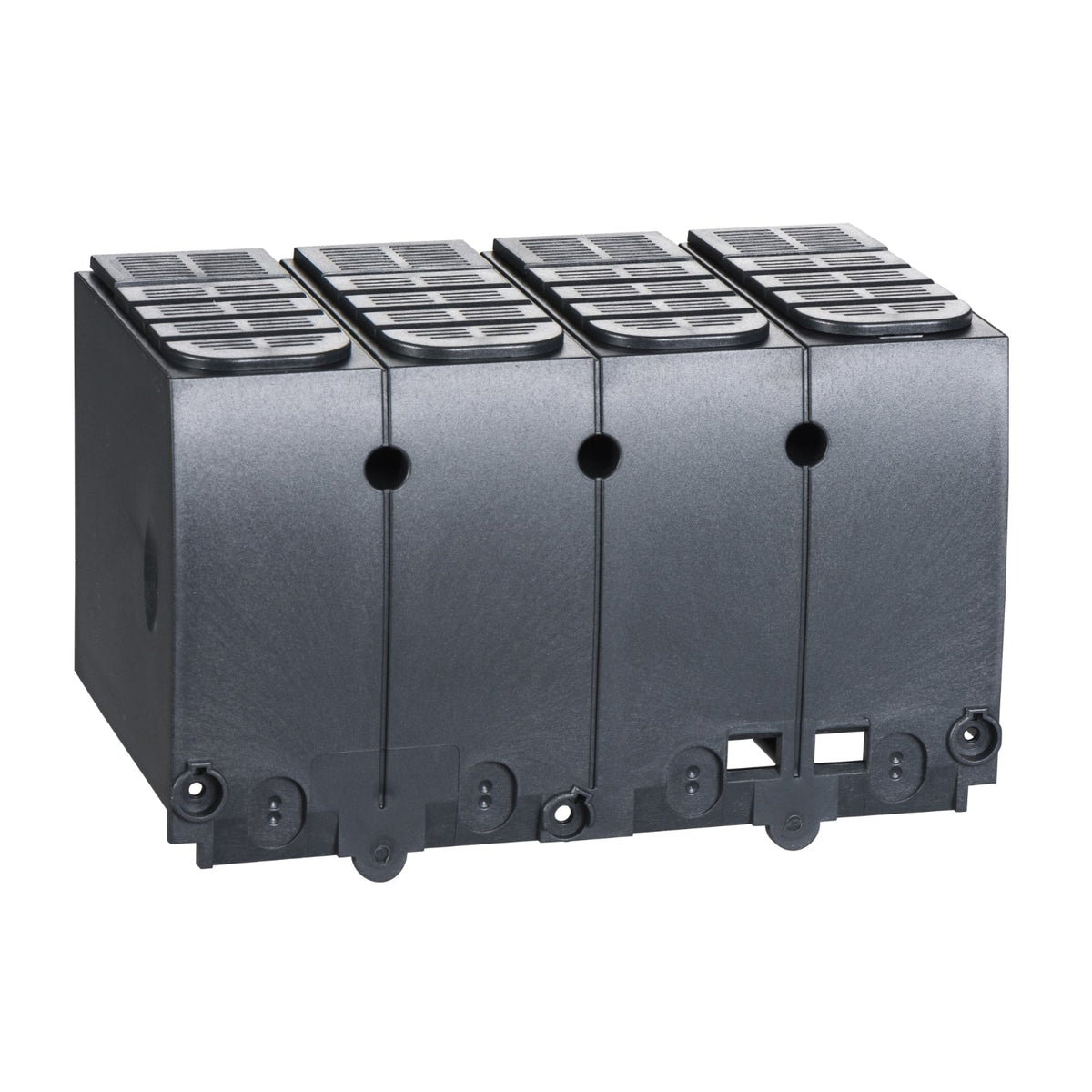

Schneider Electric LV432594 ComPacT NSX400-630 Long Terminal Shield 4P 45 mm IP40 Circuit Breaker Accessory

The Schneider Electric LV432594 is a long terminal shield for 4-pole ComPacT NSX400, NSX630, EasyPact CVS400-630, ComPacT INS and ComPacT INV...

Product or Component Type
Long terminal shield
Range compatibility
ComPacT ComPacT NSX400, ComPacT ComPacT NSX630, ComPact ComPact NSX400, ComPact ComPact NSX630, ComPacT ComPacT NSX DC NSX400 DC, ComPacT ComPacT NSX DC NSX630 DC, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact Compact INV, ComPact ComPacT INS
Accessory / Separate Part Type
Insulation accessories
Poles description
4P
Quantity per Set
1
EAN
3606480019968
Description

About the LV432594

The Schneider Electric LV432594 is a long terminal shield for 4-pole ComPacT NSX400, NSX630, EasyPact CVS400-630, ComPacT INS and ComPacT INV devices, with a 45 mm connection pitch for front cable or insulated-bar connection, reaching IP40, IK07. It fits fixed, plug-in and withdrawable mounting and can be installed upstream or downstream of the device.

Selection Notes

Specify this long shield for front cable or insulated-bar connection on 4-pole NSX400-630, CVS400-630 or INS/INV breakers; for the 3-pole equivalent, use the short shield LV432591 instead, since the two shields serve different connection methods and are not interchangeable across the NSX400-630 frame.

Specification

Full specification

20 values · Last verified 30 Oct 2026

Main 5

Product or Component Type Long terminal shield
Range compatibility ComPacT ComPacT NSX400, ComPacT ComPacT NSX630, ComPact ComPact NSX400, ComPact ComPact NSX630, ComPacT ComPacT NSX DC NSX400 DC, ComPacT ComPacT NSX DC NSX630 DC, ComPact Compact NSX400 DC, ComPact Compact NSX630 DC, EasyPact EasyPact CVS400, EasyPact EasyPact CVS630, ComPact Compact INV, ComPact ComPacT INS
Accessory / Separate Part Type Insulation accessories
Poles description 4P
Quantity per Set 1

Complementary 2

Connection pitch 1.8 in (45 mm)
IP degree of protection IP40 conforming to IEC 60529

Contractual warranty 1

Warranty (in months) 18
Show all 20 specifications ↓ Show less ↑12 more values in Identification, Logistics.

Identification 7

Part number LV432594
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480019968

Logistics 5

Country of origin FR
Shipping weight 0.326 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV432594

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV432594

What is the HS code of LV432594 for customs?

The tariff (HS) code on file for LV432594 is 853890.

What is the EAN of LV432594?

The EAN (GTIN) of LV432594 is 3606480019968.

Where does LV432594 ship from, and how fast?

LV432594 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
